Autostart AS-3472TW-FM - Manual (Page 4)

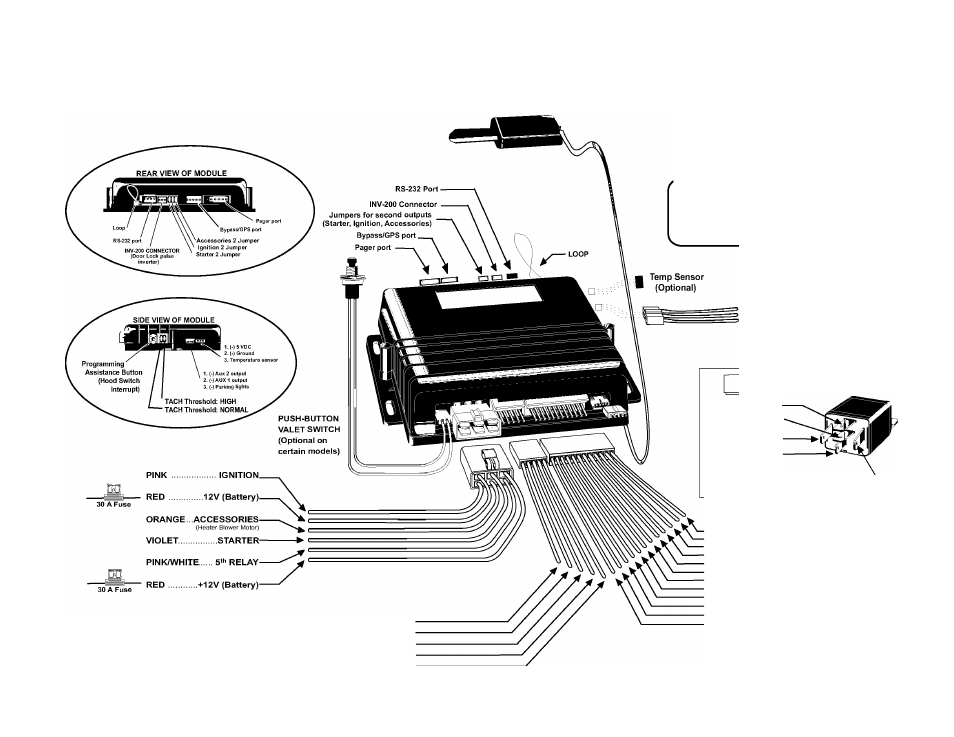

WIRINGSCHEMATIC
For Automatic Transmissions:
Cut the yellow loop before plugging
in the module.
Note: This product supports the Trilogix bypass.
To program the Trilogix bypass to the Autostart remote
starter, please ensure that the Trilogix bypass and the
Autostart starter are powered up simultaneously.
3. WHITE/BLACK...........(-) PARKING LIGHTS
2. LIGHT BLUE..............(-) AUX 1 output
1. VIOLET/BLACK.........(-) AUX 2 output
Optional Starter Kill Relay
N/A87
STARTER WIRE 87A
(Solenoid Side)
IGNITION (+) 85
STARTER WIRE 30
(Key Side)
86
Start Kill Output (-)
1- BLACK............................... GROUND (-)
2- VIOLET/WH I T E...................TACH (AC)
3- GRAY...................... HOOD SWITCH (-)
4- BROWN .............. BRAKE SWITCH (+) .
5- WHITE...............PARKING LIGHTS (+) .
12- GRAY/BLACK.......................... (+) Glow plug input
11- GREEN.......................................-) NEG. Door input
10- BLUE/BLACK............................ (-) GROUND when running
9- WHITE/BLUE............................... (-) EXT. TRIGGER input
8- BLACK/WHITE.......................... (-) Parking Brake input
7- ORANGE..................................... (-) Starter kill output
6- VIOLET....................................... (+) POS. Door input
5- LIGHT GREEN/BLACK (-) DISARM
4- LIGHT GREEN/WHITE............... (-) REARM
3- BLUE .......................................... (-) UNLOCK
2- LIGHT GREEN ........................... (-) LOCK
1- RED/WHITE............................... (-) TRUNK
V1.00 MO - May 1, 2008
15 A Fuse
