Virtual Tach System
* Virtual Tach System combines the latest microcontroller technology and a complex algorithm that took years to develop. VTS
is able to effectively monitor the engine starting sequence and release the starter at the right time without physically connecting
the tach wire to the remote starter. The VTS constantly monitors the data and readjusts itself automatically in order to maximize
its capability to start the engine properly in any weather or deteriorating battery condition (automatic transmission only].
Optional Time Delay Adjustment in Virtual Tach System
Follow these steps to program crank time adjustment, if needed:
1. Enter programming mode {see page 1) — the parking lights will stay on for up to 20 seconds.
2. Before the lights go out, press and hold the brake pedal and press the LOCK and UNLOCK buttons simultaneously — the
parking lights will flash 4 times. Do not release the brake pedal.
3. Press the LOCK button if you wish to increase the time delay or the UNLOCK button if you want to decrease it. The time
delay will be increased or decreased by 50ms. and the parking lights will flash once every time the LOCK or UNLOCK
button is pressed.
4. Press the TRUNK button to save the settings you have entered.
5. Release the brake pedal - the time delay programming is now complete.
Tach Programming
1. Enter programming mode (see on page 1) — the parking lights will stay on for up to 20 seconds.
2. Before the lights go out, press and hold the brake pedal and press the LOCK and UNLOCK buttons simultaneously—the
parking lights will flash 4 times At that point, release the brake pedal.
3. Start up the engine and allow the vehicle to reach regular engine idle speed.
4. Once the engine is running at normal idle speed, press the brake pedal and keep it down until you hear the parking lights
output click 5 times.
5. Release the brake pedal —^the tach programming is now complete.
Horn Honk Timing
Follow these steps to program horn confirmation:
1. Enter programming mode (see on page 1) — the parking lights will stay on for up to 20 seconds
2. Press and hold the brake pedal, then simultaneously press the UNLOCK and START/STOP buttons — the horn will chirp 5
times.
3. Release the brake pedal.
4. To change the timing:
1. To increase the Horn pulse by 3 ms, press the LOCK button.
2. To decrease the pulse by 3 ms, press the UNLOCK button.
3. To increase the pulse by 10 ms, press the START /STOP button.
4. To decrease the pulse by 10 ms, press the TRUNK button.
5. To save the new settings: press LOCK and UNLOCK. If 3 chirps are returned the new settings have been saved.
Resetting the Module
WARNING! By resetting the module, all programmed values are erased — i.e.: tach, transmitter as well as programming
options. The programming options are returned to their default values.
1. Enter programming mode (see p. 1).
2. Once having reached the programming mode, quickly press and release the brake pedal until the parking lights flash 8
times (you will need to press the brake pedal a minimum of 5 times) .
Supplementary Information

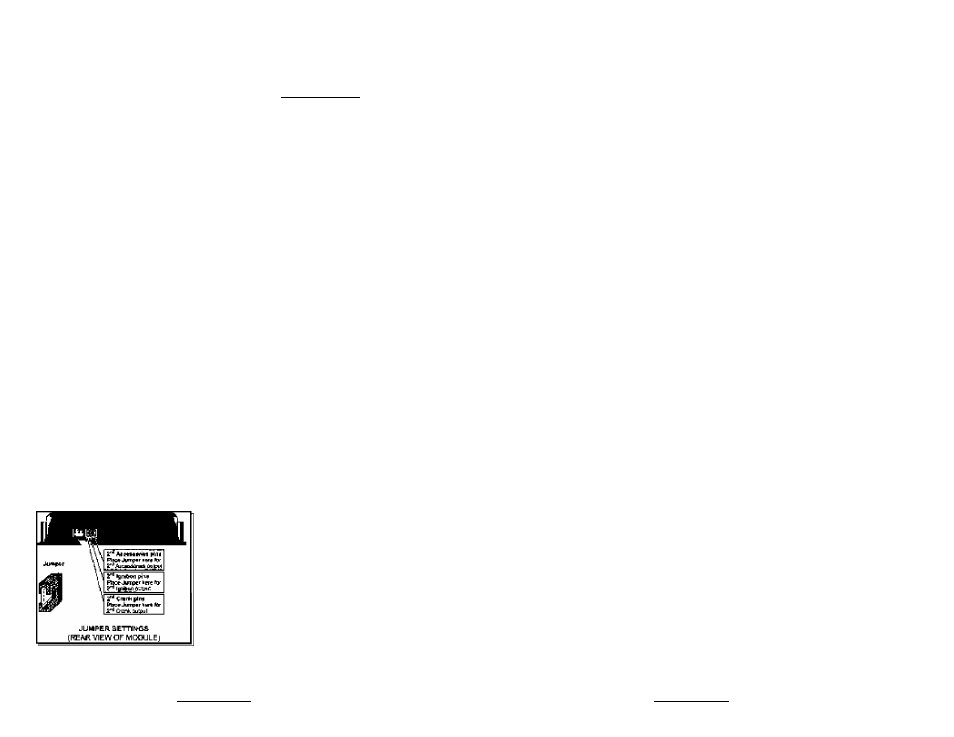

Fifth Relay Output (2nd IGN, ACC or CRANK)
Remote car starters of this series are equipped with an on-board high­
current programmable 5 th relay that can be used to power a second
ignition, accessory or crank wire. The unit uses 3 sets of pins; each set
corresponds to a specific function of the output. In order to activate one of
the three possible functions, you must place the jumper (supplied) on one
of the three sets of pins and connect the 14 AWG wire to the second IGN. /
ACC. / CRANK wire of the vehicle.
http://www.autostart.ca Installation Guide
menu 2 ” INDICATES DEFAULT SETTING
FEATURE 1 - Safe Start
OPTION 1 Safe Start ENABLED
OPTION 2* Safe Start DISABLED
OPTION 3 “Swap Start” - enhanced safe start mode with extended safety: To start the engine: press
F then LOCK buttons. To trigger AUX 2: press START/STOP button.
FEATURE 2 - Engine Run Time
OPTION 1 Run Time = 3 minutes in gas mode / 8 minutes diesel mode
OPTION 2* Run Time = 15 minutes in gas mode / 20 minutes diesel mode
OPTION 3 Run Time = 25 minutes in gas mode / 30 minutes diesel mode
FEATURE 3 - Idle Mode & Turbo Mode (auto) / Turbo Mode (manual)
OPTION 1 Idle mode & turbo mode DISABLED (AUTO) / turbo mode DISABLED (MANUAL)
OPTION 2* Idle mode & turbo mode ENABLED (AUTO) / turbo mode DISABLED (MANUAL)
OPTION 3 Idle mode & turbo mode ENABLED (AUTO) / turbo mode ENABLED (MANUAL)
FEATURE 4 - Engine type and Cold Weather Mode
OPTION 1 Diesel mode with 20-minute run time in cold weather mode (30-sec. wait to start delay)
OPTION 2* Gas mode with 3-minute run time in cold weather mode
OPTION 3 Diesel mode with 8-minute run time in cold weather mode (18-sec. wait to start delay)
OPTION 4 Diesel mode with 8-minute run time in cold weather mode (7-sec.wait to start delay)
FEATURE 5 - Ignition Valet
OPTION 1 Ignition valet DISABLED
OPTION 2* Ignition valet ENABLED
MENU 3
' indicates default setting
FEATURE 1 - Home Valet
OPTION 1 Home valet ENABLED
OPTION 2* Home valet DISABLED
FEATURE 2 - AUX 1 Programming
OPTION 1 Horn confirmation upon the 2 nd press of the LOCK button.
OPTION 2* Priority door access
OPTION 3 Horn confirmation upon the 1 st press of the LOCK button.
FEATURE 3 - AUX 2 Programming
OPTION 1 Constant output while the F then LOCK buttons are pressed.
In safe start mode: activate AUX 2 by pressing the START/STOP button.
OPTION 2* Toggle ON/OFF (with 30-second time out)
OPTION 3 Toggle ON/OFF (with 4 minutes time out) ^active when under remote run
OPTION 4 Priority door access
FEATURE 4 - AUX 3 / Zone 3 Programming
OPTION 1 1 -sec. output when TRUNK button is pressed for 3 sec. with ignition OFF or under remote
run & data output (channel expander MCX-100 enabled)
OPTION 2* Constant output while the TRUNK button is pressed
OPTION 3 Disarm/rearm pulse with TRUNK & data output (channel expander MCX-100 enabled)
FEATURE 5 - External Trigger
OPTION 1 Zone 3 disarm/rearm (trunk pin: a disarm pulse is sent before the trunk opens; the vehicle
rearms 4 seconds after the trunk is closed).
OPTION 2* Key sense
OPTION 3 Engine start/stop
OPTION 4 Pager
MENU 4 ' indicates default setting
FEATURE 1 - Alarm Control
OPTION 1 ENABLED (HORN must be enabled)
OPTION 2* DISABLED
FEATURE 2 - Ready Mode Option
OPTION 1
OPTION 2*
FEATURE 3 - Bypass
OPTION 1
OPTION 2 *
OPTION 3
Enabled by handbrake
Enabled by remote
ADS
Trilogix
Fortin
FEATURE 4 - Bypass Type
OPTION 1 One-Way communication
OPTION 2 * Two -Way communication
Installation Guide http://www.autostart.ca/ P. 6 P. 3
