Operating Instructions for the Altec Lansing 3300A Series Mixing Consoles
5x20 mm (supplied) fuse is
installed in the fuse holder.
3.
Change
the
chassis-
mounted switch on the
connector panel to the
correct
corresponding
voltage.
4.
Plug the power cord in the
desired ac line and resume
normal operation.
CAUTION: Before attempting
to move this switch, the mixer
must be turned off and the
power cord disconnected.
Slo-Blo® is a registered trademark of
Littelfuse®, Inc.
5 MOVEABLE REAR PANEL
ON THE 3308A MIXER
One example of the versatility of the
3308A mixer is that it can be either
rack-mounted in a standard 19-inch
equipment rack or mounted in a
table-top. To accommodate a rack-
mount instaUation, the 3308A is
supplied with its connector panel
placed on its bottom. This prevents
the input/output connectors from
using up valuable vertical rack space.

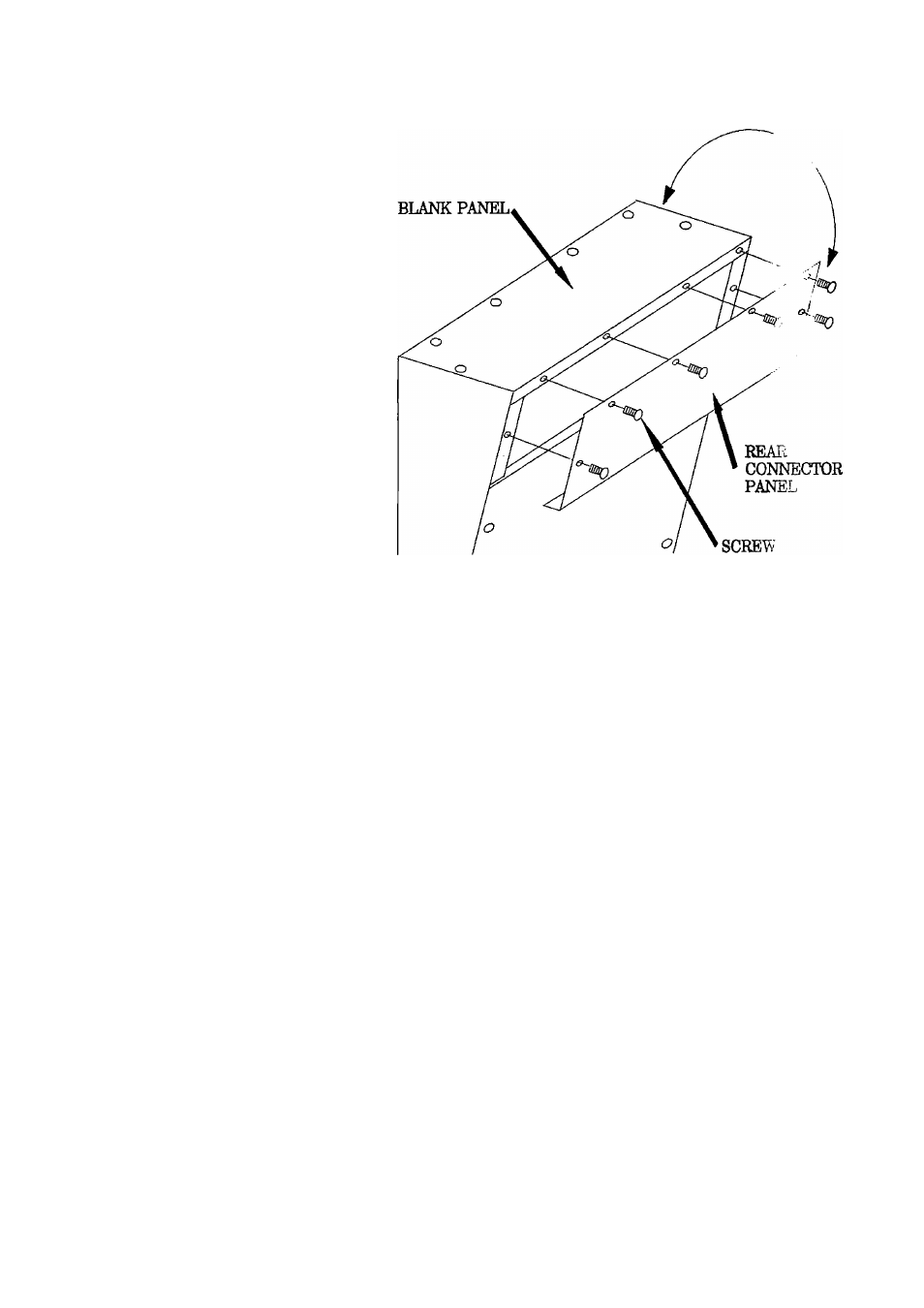

Figure 9. 3308A moveable rear panel.
The connector panel may be moved <
to the rear of the mixer to
accommodate a table-top installation.
Refer to Figure 9 to move the
connector panel to the rear. When
moving this panel to the rear, care
should be taken not to pinch any
cables between the two panels.
WRITE-ON LABELS
In order to label each channel
without marring the surface of the
mixer, removzible stick-on labels are
available from any office supply
outlet. Labels that are recommended
are Presaply® Removable Labels by
Dennison; part number Den-43-540;
dimensions are %"
X
1".
