Wall
mounting
Installation steps for exhaust air operation
1.
Hold the installation template (with readable lettering) on the
wall,
noting the distance between the upper edge of the hob
and the iower edge of the fume extractor hood!
(Electric/gas cookers
650 mm)
(oil and coal cookers
min.
700 mm).
2. Mark out and drill the
8 mm dia.
holes. Insert the wall plugs
and mount the wall rail

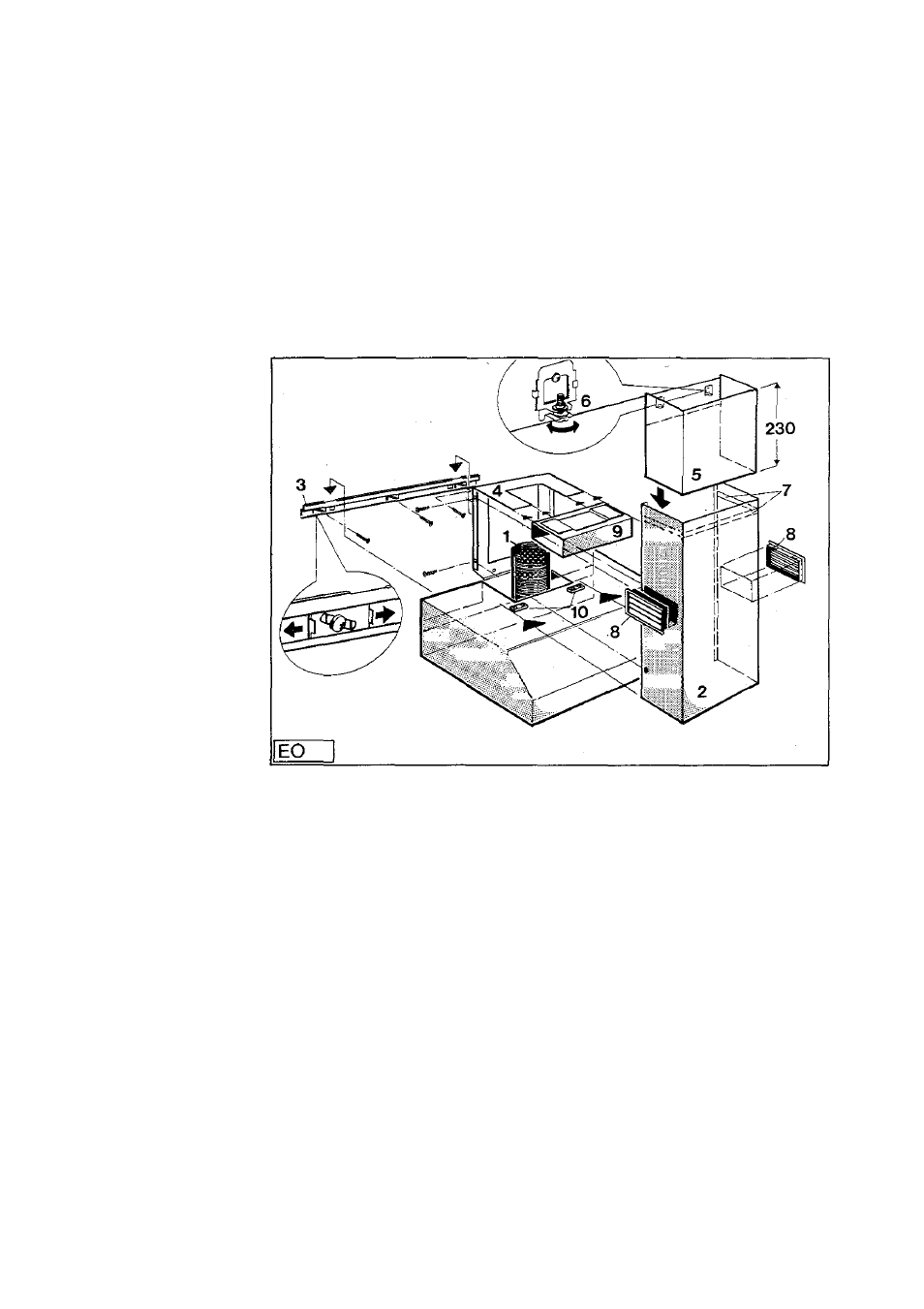

(Fig. EO/3).
The wall rail can be horizontally aligned by shifting the sliding
elements.
Important! Oniy use the suppiied 5 x 60 mm screws to DIN
7996!
3.
Mount the fume extractor hood in the wall rail and centrally
align about the cooker hob.
4.
Insert the chimney retaining plate
(Fig. EO/4)
in the fume
extractor hood (cutout for exhaust air hose) so that both
angles (above) face forwards
(Fig. EO/4).
Fix the chimney
retaining plate with 6 8 x 4 0 mm wall plugs and 8 x 4 0 mm
screws on the wall.
5.
Connect the exhaust air hose (without sleeve) of the fume
extractor hood directly to the wall box behind or directly con
nect 125 mm dia. exhaust air hose to the fume extractor hood
and run on.
