DRIVETRAIN

The drivetrain consists of the pedals, chain,

chainwheel, crank set, and freewheel.

These are all the components of the bicycle

that transmit power to the rear wheel.

Pedals

There is a vast range of pedals available, designed

for many different uses. Pedals fitted with toe clips

and straps aim to make the pedalling process easier for the rider. The toe clips and straps

ensure the cyclist’s feet stay correctly positioned and cause a pulling force, as well as a

downward pressure, to be generated on the pedals. To get the full benefit of these pedals

it is recommended that the rider wear cycling shoes especially designed for use with toe

clips. Consult your bicycle dealer for instruction on how toe clips and straps operate.

WARNING:

Pedals fitted with toe clips and straps require a certain level of skill to operate

safely. Riders should repeatedly practice using such pedals in areas free from

traffic, hazards or obstacles, until operation becomes a reflex action.

Failure to do so could result in the cyclist losing control of the bicycle

and falling. It is also recommended that the straps be kept loose initially

and gradually tightened as the rider’s skill in using the pedals increases.

However, toe straps should never be tight when riding in traffic.

Inspection

Every month the pedals should be inspected. Check that:

- Pedals are securely fastened into the cranks. Loose pedals are a potential hazard

for both the rider and the integrity of the cranks.

- Pedal bearings are adjusted correctly. Alter, grease or replace if any roughness

or looseness is detected in the pedal bearings when the pedals are moved up

and down, laterally or rotated by hand.

- The front and rear pedal reflectors are clean and firmly attached.
- If toe clips are fitted, ensure that they are fastened tightly to the pedals.

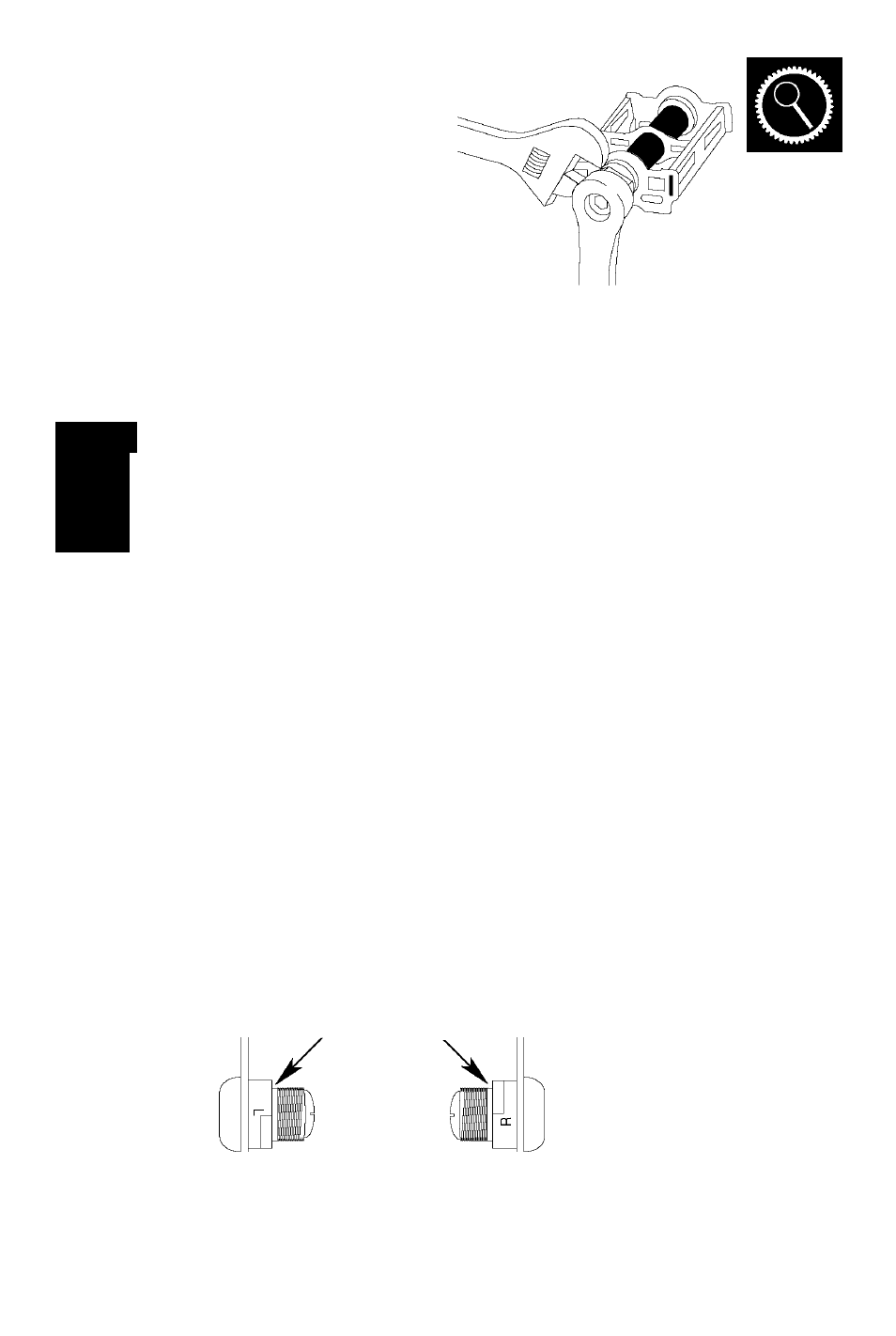

Correct Pedal Attachment

L = Left

R = Right

Pedal Axles

Turn Counter

Clockwise

to tighten

Turn

Clockwise

to tighten
