Correct Quick Release Axle Setting
The process of removing wheels is made considerably
easier if a Quick Release mechanism is fitted to the
wheel axle. Wheels can be removed without using
tools. The Quick Release mechanism consists
of a lever controlling a cam-action tightener and at
the other end a long bolt with an adjusting nut.
(D
WARNING: It is crucial that the Quick
Release mechanism is properly adjusted
when riding. Failure to do so may cause
the wheel to wobble or disengage from the
bicycle, possibly resulting in harm to the
bicycle, and/or the rider.
Consequently:
1. Seek instruction from your bicycle
specialist on the correct process for
removing and installing Quick Release
wheels
2. Prior to riding your bicycle, ensure that
the wheel lever is firmly clamped.
To correctly clamp your quick release wheels in
place, refer to the following.

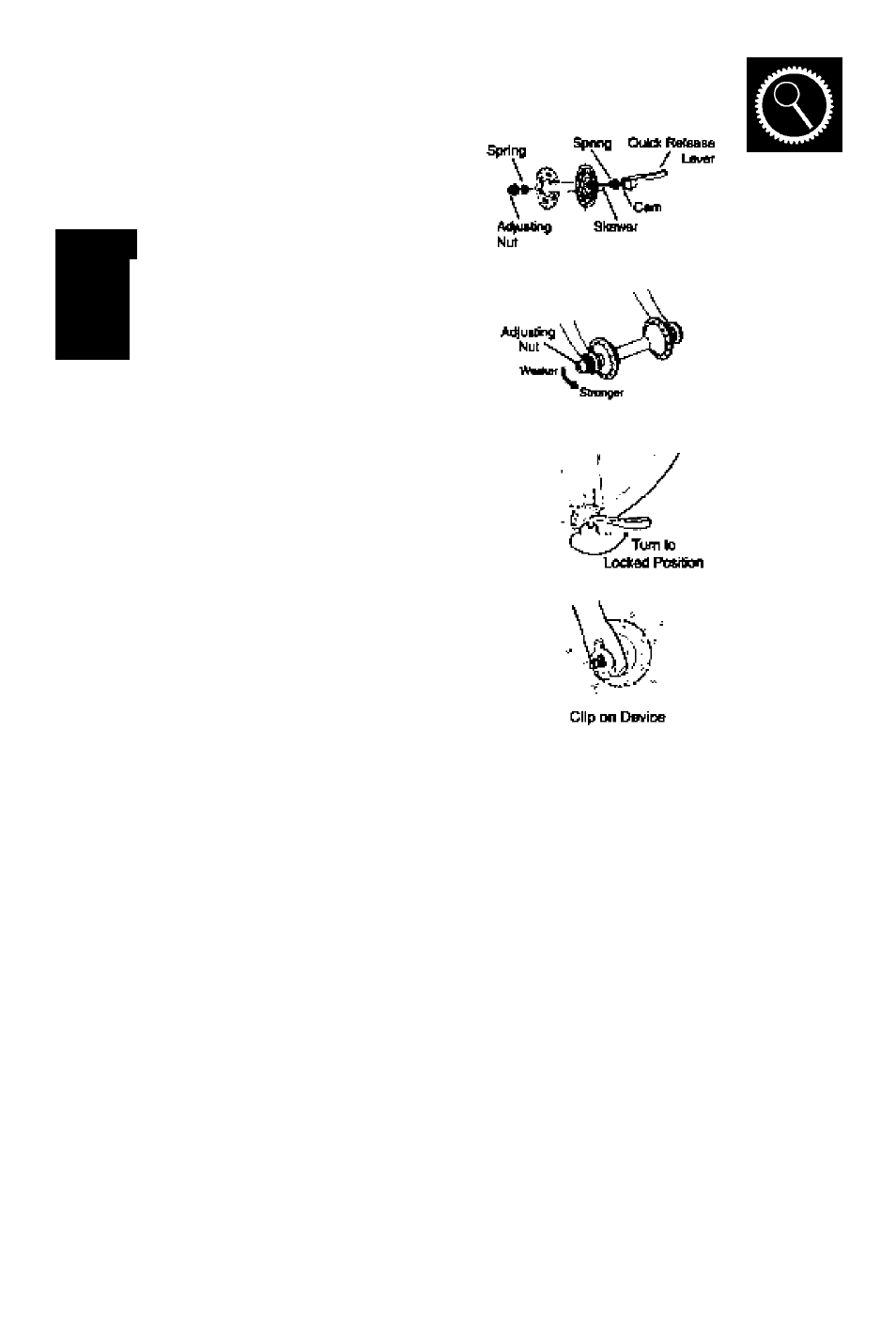

1. To set, open the lever so that the curved part faces
away from the bicycle.
2. While holding the lever in one hand, spin
the adjusting nut manually until it is tight.
3. Spin the lever halfway towards the closed position. Tighten the adjusting nut in a
clockwise direction until there is firm resistance to turning the lever beyond that point.
4. Pivot the lever all the way to the closed position so that the curved part of the lever
faces the bicycle.
5. When the jagged edges on the Quick Release clamping parts actually begin to cut into
the bicycle frame/fork surfaces the wheel is firmly secured.
6. To operate a Quick Release seat post binder mechanism follow the same process.
