installation of a freestanding appliance
Installation of freestanding appHanoe
To ensure proper ventilation of the appliance
allow a space of 5 cm/2" all around it.
50 mm
t
Fig. 23

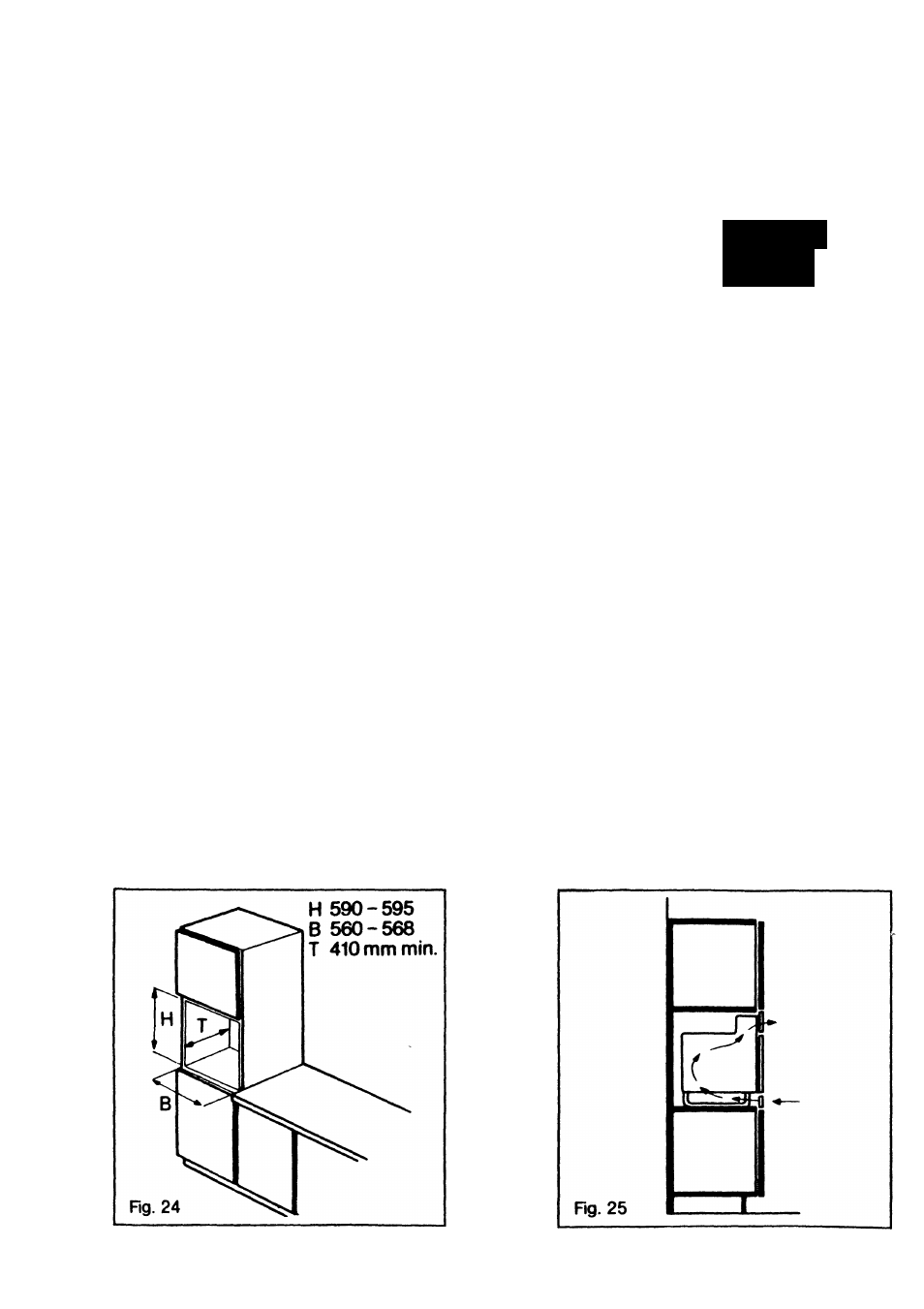

Installation of the build-in appliance
Installation of the build-in
appliance
- Rt the appliance into the furniture housing
unit (see illustration). The electrical supply
switched connection should be accessible
when the appliance is installed in the furni
ture housing.
~ The appliance Is secured to the housing
unit by 2 screws (see illustration).
20
