7.
Position the tailgate reinforcement bracket (AE)
over end of cart. See figure 5.
8.
Start slotted screws (0) through bottom of cart
(heads of screws to the inside of cart) and rein
forcement bracket. Secure finger tight with hex
nuts (Q) and lock washers (P). See figure 5.
9.
Position the tailgate guides (X) so that the holes
line up with reinforcement bracket and cart
body. Refer to tailgate guide detail in figure 5.
10.
Secure tailgate guides with six hex bolts (H) lock
washers (K) and hex nuts (L). See figure 5.
Tighten bolts assembled in steps 7, 8 and 9 at
this time. Do not tighten others.
STAND CART ON
TAILGATE REINFORCEMENT BRACKET

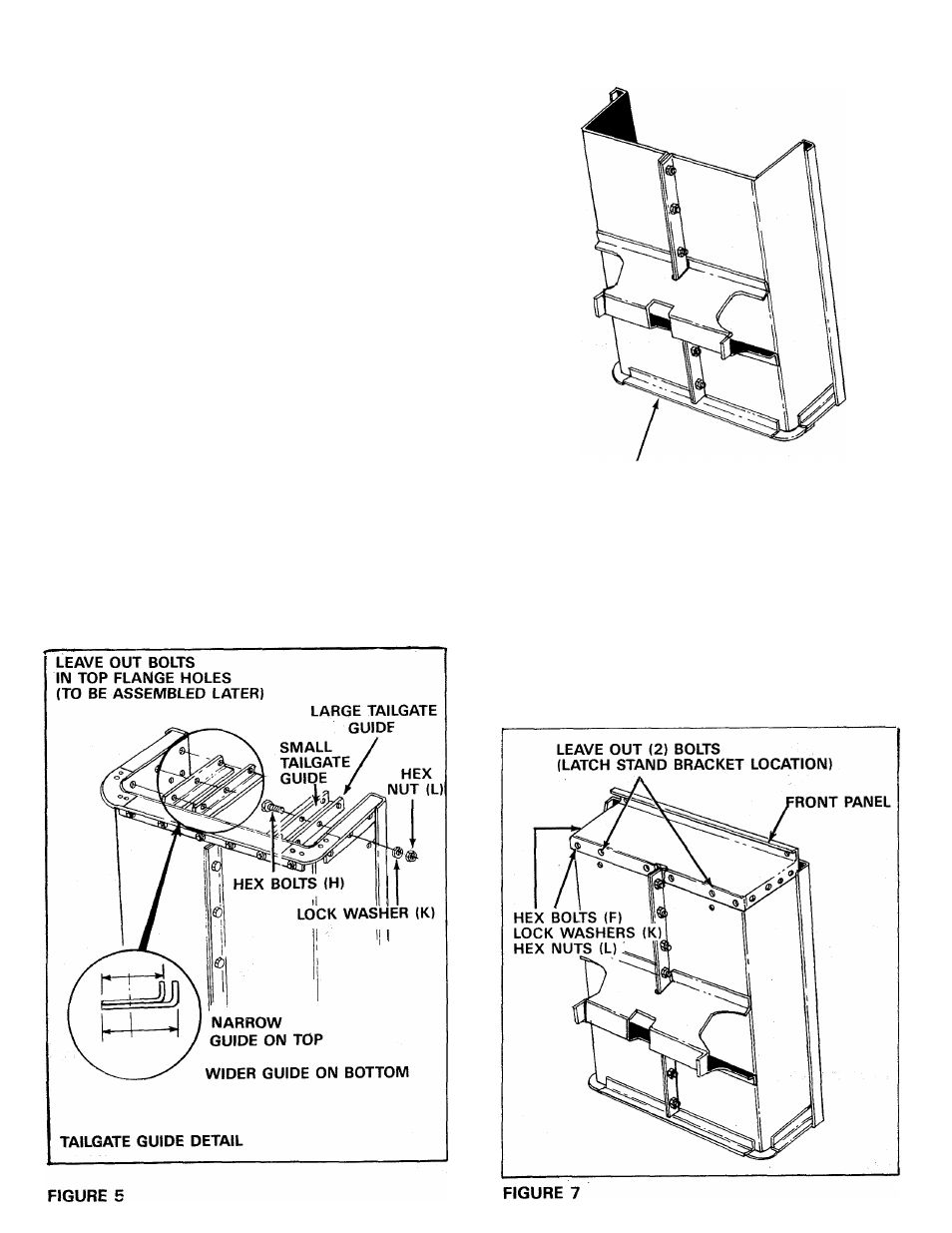

FIGURE 6
11.
Reverse the cart position and stand on tailgate
reinforcement
bracket
and
proceed
with
assembly steps 12 through 20. See figure 6.
12.
Assemble front panel to open end of cart body,
using 1/4" x 1/2" hex bolts (F), lock washers
(K) and hex nuts (L). Bolt heads to inside of cart.
Leave out (2) bolts for latch stand bracket. See
figure 7.
