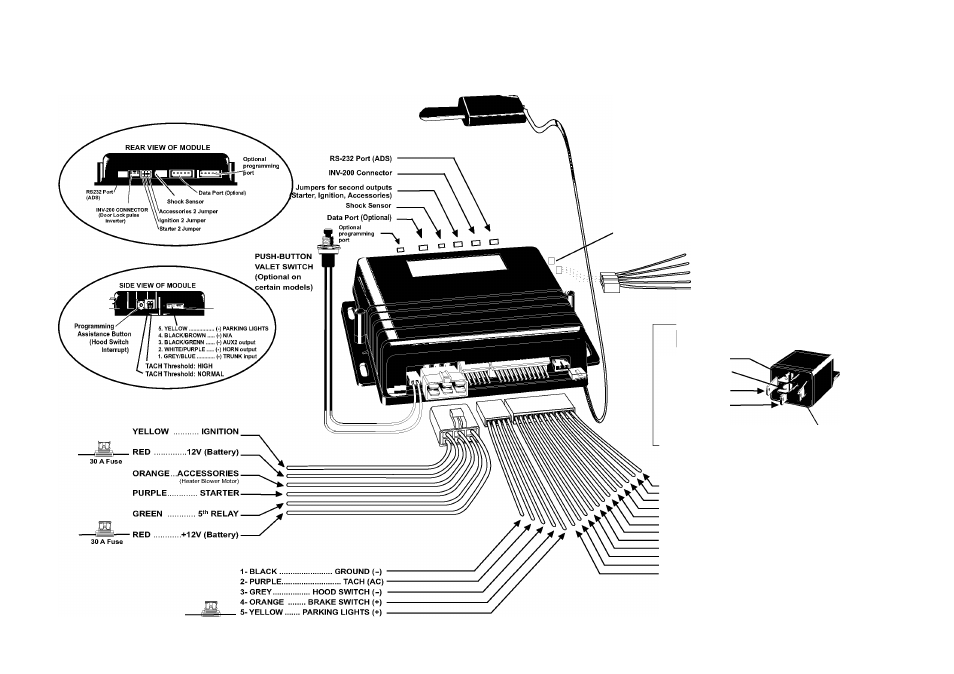

WIRING SCHEMATIC
Temperature sensor (Optional)
5. YELLOW.................... (-) PARKING LIGHTS input
4. BLACK/BROWN........ (-) N/A
3. BLACK/GREEN......... (-) AUX2 output
2. WHITE/PURPLE........ (-) HORN output
1. GRAY/LIGHT BLUE ... (-) TRUNK intput
Optional Starter Kill Relay
N/A87
STARTE R WI RE 87A
(Solenoid Side)
IGNITION (+) 85
STARTER WIRE 30
(Key Side)
86
Start Kill Output (-)
12- YELLOW.................................. (+) Glow plug input
11- GREY....................................... (-) Negative Door input
10- WHITE.......................................(-) GROUND out when running
9- PURPLE..................................... (+) Siren output
8- ORANGE.................................... (-) Hand Brake Input
7- WHITE/ORANGE........................ (-) Starter kill output
6- BLUE/WHITE.............................. (+) Positive Door input
5- WHITE/GREEN........................... (-) DISARM
4- WHITE/BROWN.......................... (-) REARM
3- GREEN....................................... (-) UNLOCK
2- BROWN...................................... (-) LOCK
1- BLUE.......................................... (-) TRUNK output
V5.0 TL - October 3, 2006
15 A Fuse
