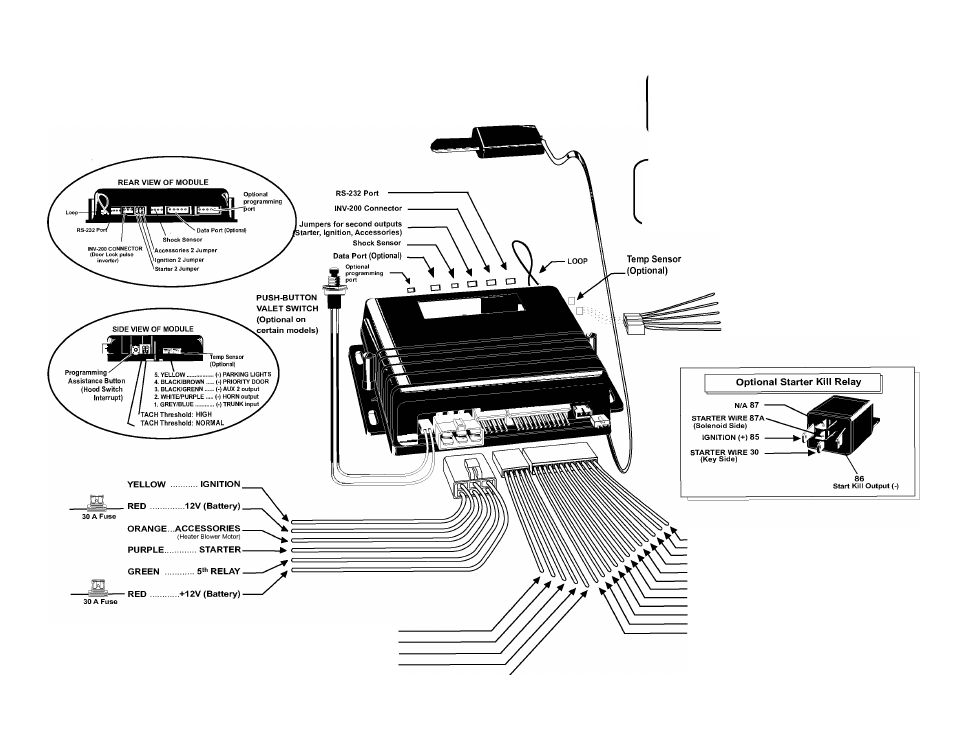

MRINGSCHEMATIC
For Automatic Transmissions :
Leave Orange wire unconnected.
Note: This product supports the Trilogix bypass.
To program the Trilogix bypass to the Autostart remote
starter, please ensure that the Trilogix bypass and the
Autostart starter are powered up
simultaneously .
5. YELLOW ...............................(-) PARKING LIGHTS output
4. BLACK/BROW N.................. (-) PRIORIT Y DOOR output
3. BLACK/GREEN................... (-) AUX 2 output
2. W HITE/PURPLE..................(-) HORN output
1. GRAY/LIGHT B LUE ... (-) TRUNK input
1- BLACK.................................. GROUND (-)
2- PURPLE.............................................. TACH (AC)
3- GREY...................... HOOD SWITCH (-)
4- ORANGE ............ BRAKE SWITCH (+)
5- YELLOW................ PARKING LIGHTS (+)
12- YELLOW.................................. (+) Glow plug input
11- GREY....................................... (-) Negative Door input
10- WHITE.......................................(-) GROUND out when running
9- PURPLE..................................... (+) Siren output
8- ORANGE................................... (-) Hand Brakes input
7- WHITE/ORANGE........................ (-) Starter kill output
6- BLUE/WHITE..............................(+) Positive Door input
5- WHITE/GREEN...............................(-) DISARM
4- WHITE/BROWN............................. (-) REARM
3- GREEN...................................... (-)
UNLOCK
2- BROWN...................................... (-) LOCK
1- BLUE......................................... (-) TRUNK output
V. 1.00 MO - Oct. 29, 2007
15 A Fuse
