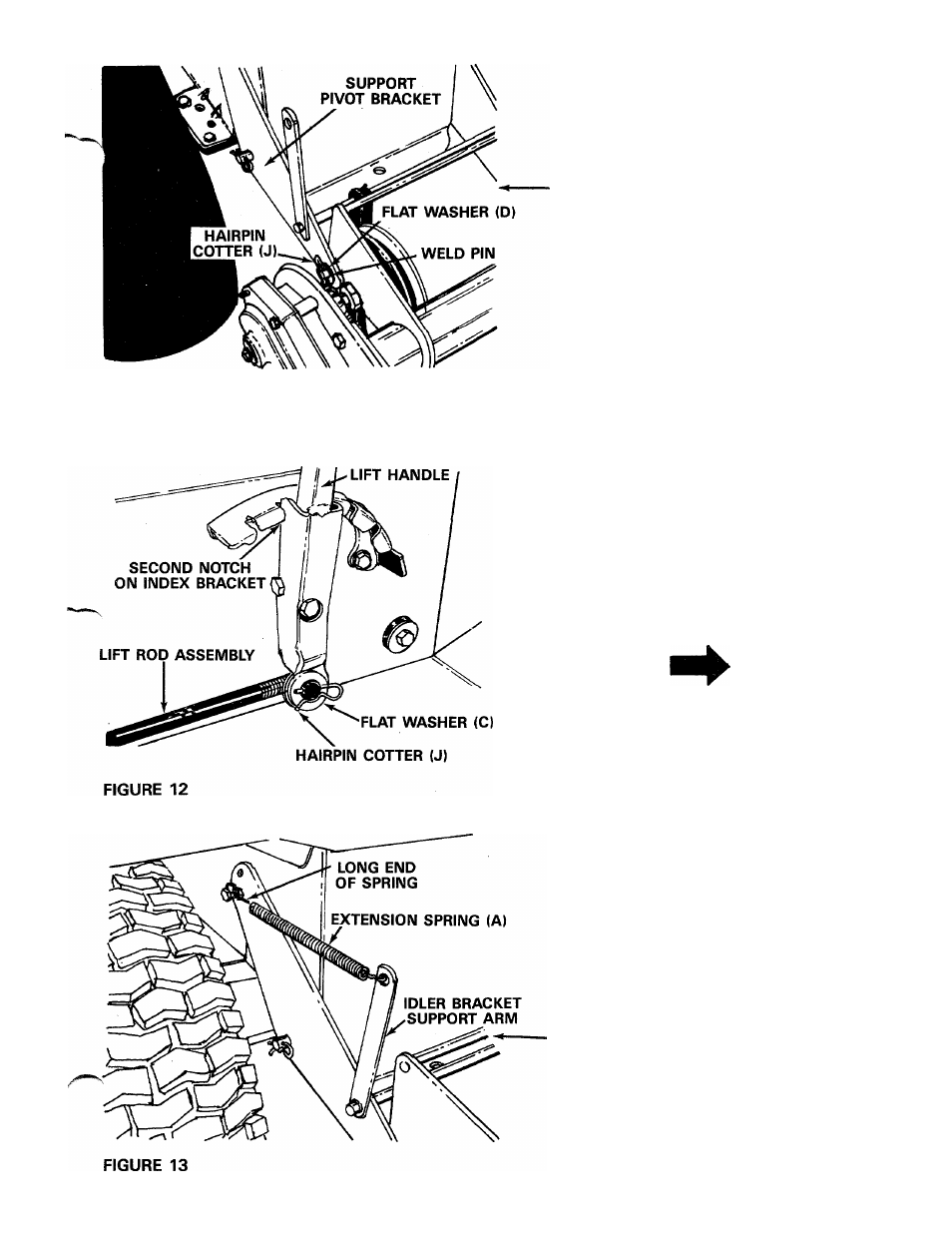

23. Secure the weld pin on the left hand side of tiller
using one flat washer (D) and hairpin cotter (J).
See figure 11.
FIGURE 11
24.
Move the lift lever on the tractor to the second
notch on the index bracket as shown in figure
12
.
25.
Place a board under the tines. Thread the
assembly until it lines up with the bottom hole
in the lift handle. Secure ferrule to lift handle
using flat washer (C) and hairpin cotter (J). See
figure 12.
NOTE
Refer to operation section for
additional adjustment information.
26.
Hook the short end of extension spring (A) to
the idler bracket support arm on the left side
of unit. Hook the longer end of spring to the hex
bolt on support pivot bracket which was
assembled in step 7. See figure 13.
