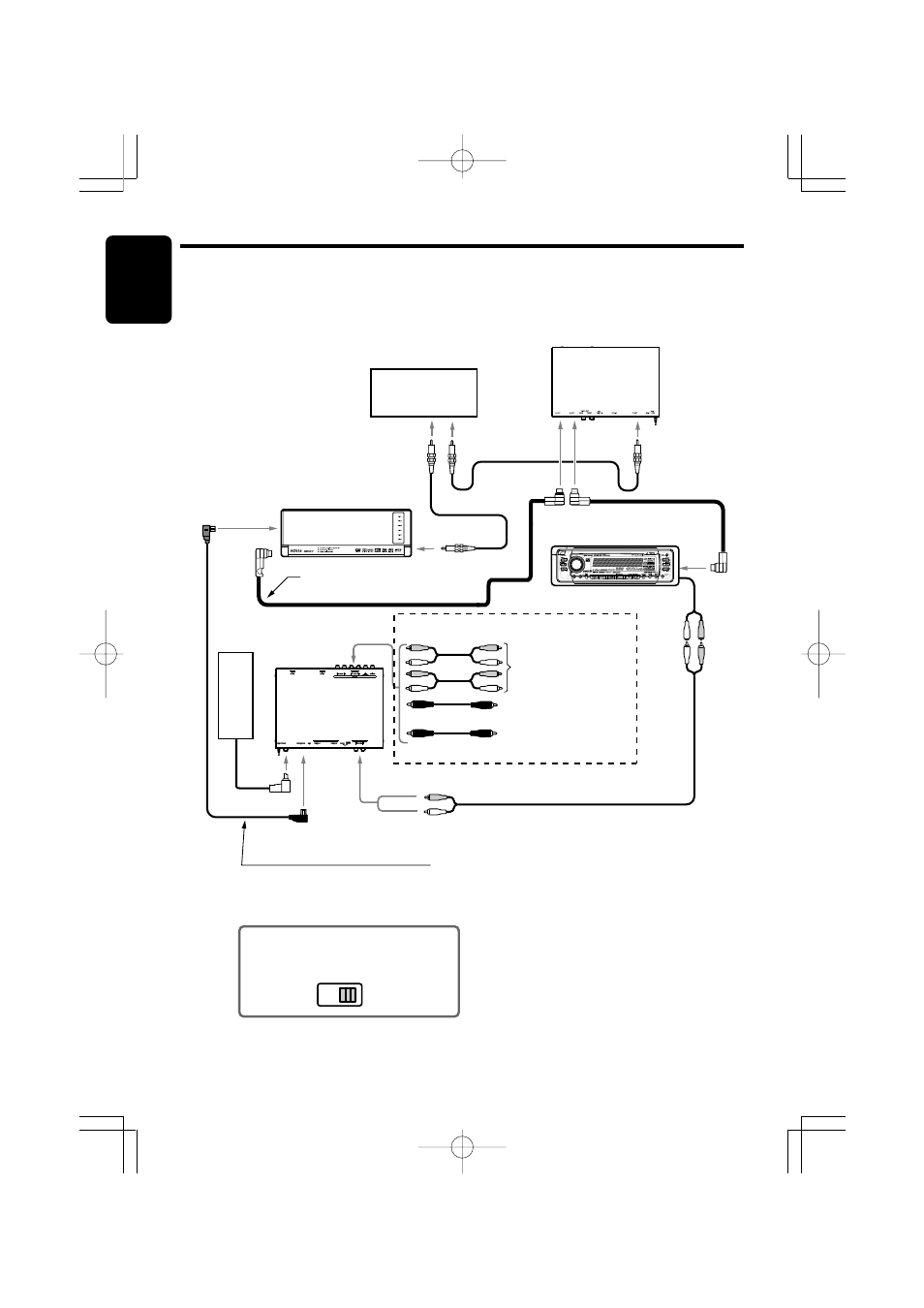

Connect with 5.1ch Surround Decoder (DVH920/DVH940)
■ DVH920
SET and 5.1ch Surround Decoder connect wth
RCA pin cable
Gray
SLAVE
STAND
ALONE
(DXZ7 46MP)
(VCZ625)
CeNET DVD Changer
5.1ch surround
decoder
Optical Digital cable (sold separately)
1-DIN Center Unit
Black
∗ Refer to the OWNER’S MANUAL of DVH920.
RCA pin cable (furnished with DVH920)
wired controller
NOF
ADER
ANALOG INPUT
( TTX75 0 1z /TTX7502z
/T TX7504z)
BB TV Tuner
TV MONITOR
Set the 5.1ch surround decoder’s
[STAND-ALONE / SLAVE] switch tothe
[STAND-ALONE] position.
DCA-005 (5 m) (furnished with DVH920)
DCA-008 (1.5 m)
∗ Connect properly in accordance withcolor of connectors
CeNET Cable (furnished with
component to be connected)
Connect to 4ch power
amplifier
Connect to powered
center speaker
Connect to powered
sub-woofer
(D
VC92
0
)
(DVH920)
