Sears Craftsman 6.5 H.P. Chipper-Shredder Vacuum Model 247.77763
24
KEY
NO.
PART
NUMBER DESCRIPTION QTY.
KEY
NO.
PART
NUMBER DESCRIPTION QTY.

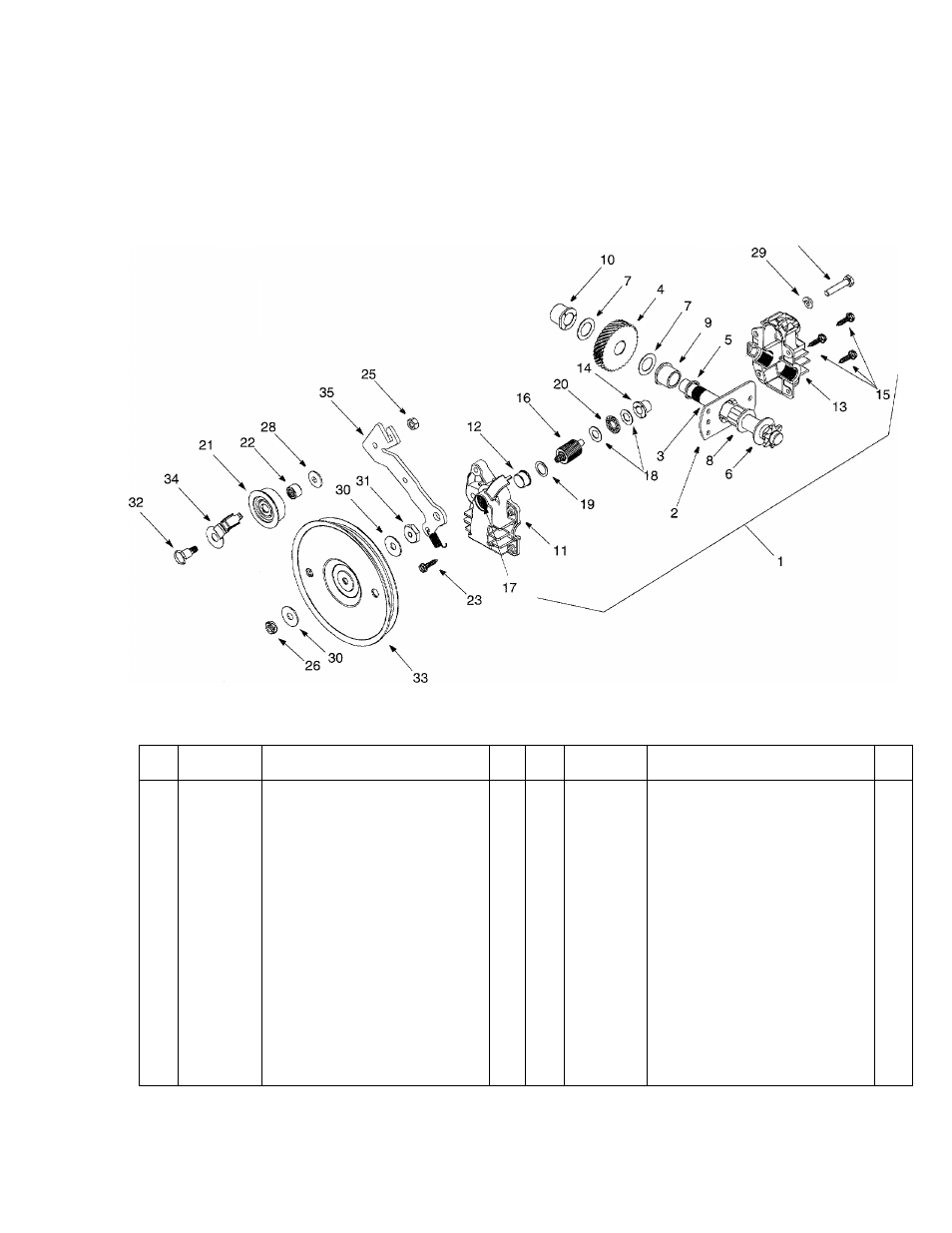

1 618-0255 Transmission Assembly, Complete 1 19 736-0520 Washer, Flat, .504 x .70 x .030 1
Includes Ref. Nos. 2 thru 20 20 741-0479 Bearing, Thrust, .375 x .812 1
2 16500A Hex Bearing Cup 1 21 656-0008 Pulley Ass’y, Idler w/ Bearing, 1
3 711-1118 Shaft, Output w/ 6T Sprocket 1
Includes Ref. No. 22
4 717-1432 Gear, Helical 34T 1 22 741-0556 Bearing, Needle, .375 x .375 1
5 721-0213 Seal, Oil, .625
X .
812 1 23 710-0589 Screw, Hex Tapp, #10-16 x .75 1
6 736-0187 Washer, Flat, .64 x 1.24 x .06 HD 1 24 710-1062 Screw, Hex w/ Patch, 1/4-20 x 1.25 1
7 736-0336 Washer, Flat, 5/8 x 1.0 2 25 712-0138 Nut, Hex. 1/4-28 1
8 741-0413 Bearing, Hex Flange, .631 ID 1 26 712-3045 Nut, Hex Jam, 5/16-24 L.H. Thd 1
9 741-0414 Bearing, Flange, .629 ID 1 27 732-0357A Spring, Extension, 1.12 Lg 1
10 741-0415 Bearing, Flange, .566 ID 1
28 736-0270 Washer, Bell, .265 x .75 x .06 1
11 719-0325 Housing, Lower 1 29 736-0329 Washer, Lock, 1/4 1
12 748-0373 Bearing, Flange, .503 ID 1 30 736-0425 Washer, Bell, .325 x .930 x .045 2
13 719-0324A Housing, Upper 1 31 738-0440 Shoulder Spacer, .375 x .165 1
14 748-0208A Bearing, Flange, .378 ID 1 32 738-0826 Shoulder Bolt, 1/4-28 x .375 1
15 710-0589 Screw, Hex Tapp, #10-16 x .75 3 33 756-0618 Pulley, Flat, 5.06 Dia 1
16 717-1433 Shaft, Pinion 10T 1 34 782-7569 Belt Keeper 1
17 721-0329 Seal, Oil, .50
X
.687
1
35 782-7570 Bracket, Idler 1
18 736-0314 Washer, Thrust, .382 x .684
2
25
