6. Remove the inside belt guard by removing two
self-tapping screws. A 3/8“ wrench is required.

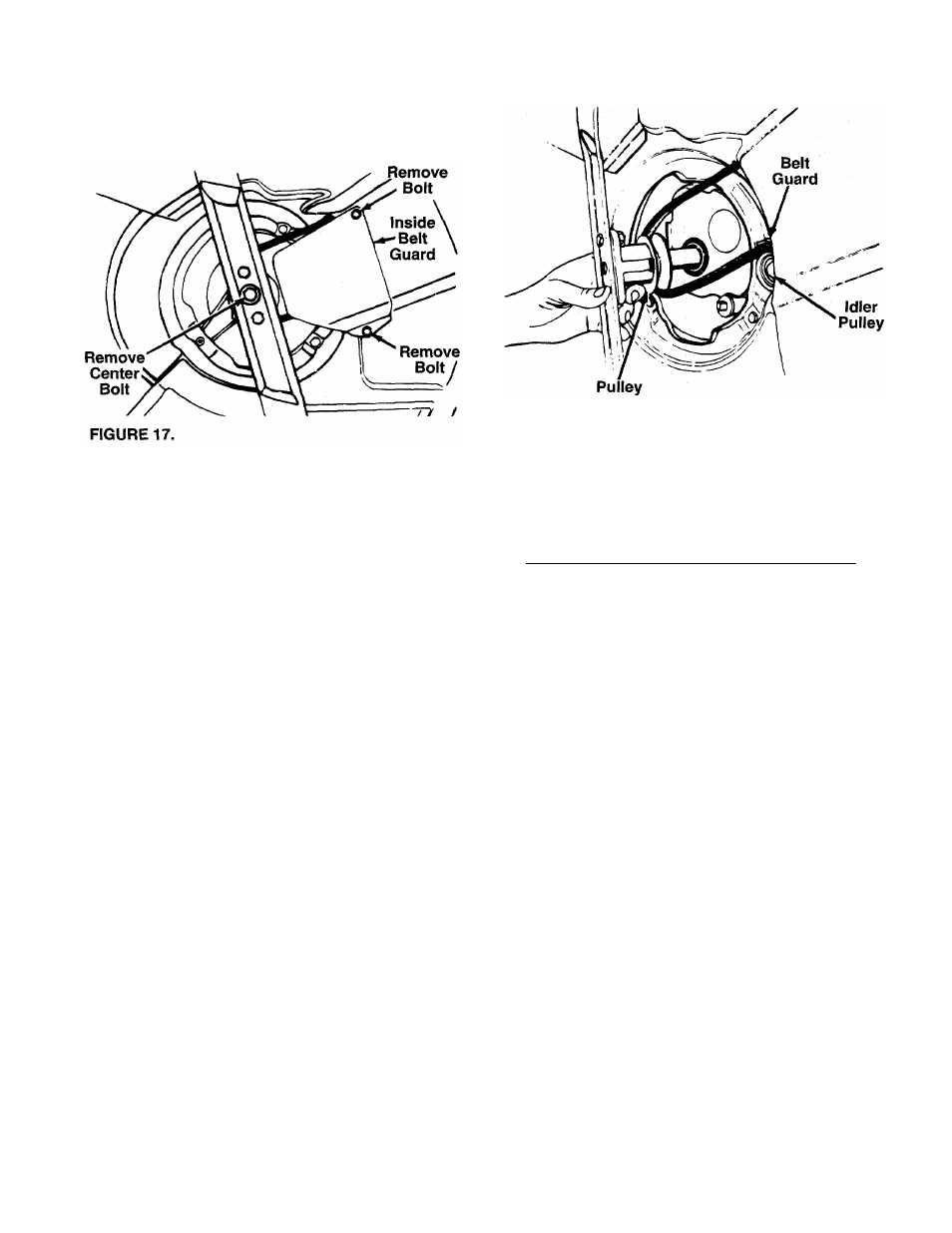

See figure 17.
FIGURE 18.
7. Loosen (do not remove) the bolt which secures
the idler pulley so you can remove the belt from
between the idler pulley and the belt guard on the
idler pulley bracket. See figure 18.
8. Remove the belt from the transmission pulley by
pulling it underneath the puiley.
9. Remove the belt from around the blade.
NOTE: Before reassembling, it is suggested that you
remove the idler pulley from the idler bracket, and
clean and re-grease the needle bearing inside the pul­
ley using an all-purpose grease. When reassembling,
cupped side of washer must be against the idler
bracket.
10. Reassemble new belt, following instructions in
reverse order. Belt must be inside the belt keeper
which is part of the pulley half.
NOTE: When reassembling the transmission belt
cover, be certain the belt guard on the transmission
cover is approximately 1/8" away from the belt. Make
certain to tighten all nuts and bolts securely. If plastic
was placed under the gas cap, be certain to remove
it.
OFF-SEASON STORAGE
The following steps should be taken to prepare lawn
mower for storage.
1. Clean and lubricate mower thoroughly as
described in the lubrication instructions.
2. Refer to engine manual for correct engine storage
instructions.
3. Coat mower’s cutting blade with chassis grease
to prevent rusting.
4. Store mower in a dry, clean area. Do not store
next to corrosive materials, such as fertilizer.
NOTE: When storing any type of power equipment in
an unventilated or metal storage shed, care should be
taken to rustproof the equipment. Using a light oil or
silicone, coat the equipment, especially cables and all
moving parts.
The use of any accessory on this Rotary Mower other than those manufactured by the mower manufacturer is
not recommended.
A
WARNING: DO NOT operate the mower without the entire grass catcher or chute defiector in
place. DO NOT operate the mower without the protective shieid on the rear of the deck in
place.
NOTE: Under normal usage bag material is subject to wear and should be checked periodically. Be sure any
replacement bag complies with the mower manufacturer’s recommendations. For replacement bags, use only
factory authorized replacement bag.
11
