HEATING CAPACITY COMPONENT INFORMATION
Input BTUH 125,000
Output BTUH 93,750
Approved Temp Rise °F 45 - 75
Air Flow for Indicated Temp Rise at Rated Input
CONNECTIONS
AIR DELIVERY PERFORMANCE - Furnace without Coil
CFM
External Static Pressure Available*
Hi Med
1000 .635
1100 .47
1200 .67 .18
1300 .58
1400 .46
1500 .32
* At 120V without air filters.
Temp Rise ° F 45 50 55 60 65 70 75
CFM , 1930 1740 1580 1445 1338 1240 1160
Electrical Power Supply 115-60-1
Min Branch Circiiit Size 14
Branch Circuit Fuse 15
External Control Power Available:
. Heating 20 VA
Cooling None
Gas Supply NPT 1/2"
Chilled Water Supply (Iron Pipe-female) 3/4"
Blower Motor
HP 1/3
Speed 4 speed 1075
Rotation CCW (opp shaft end)
Voltage 120
Full Load Amps 6.5
Frame 48
Thermal Protection Automatic
Blower Wheel 1
Diameter & Width 10 X 8
Transformer 115-230-24V 40 VA,
Filters *None supplied with unit 7 00 sq in. min filter area
WATER COIL
Water Coil
High and wide 20-1/8 x 22-1/8
Rows 3
Tube, Copper 3/8" OD
Fins, Aluminum 12 per inch
GAS CONTROL INFORMATION
Burners (stainless chromized) 5 (steel slotted port)
Orifice Drill Size - Natural if 41
Propane # 5 4
D1 Control - Natural
Regulator Comb. Shut-Off 1/2 Thermae VR 1
Valve Bryant 1/2 A 639 B
Pilot (non 100%) Bryant 733
D9 Control - Propane
Regulator None
Valve Bryant 1/2 A 639 B
Pilot (non 100%) Bryant 733
Heat Exchanger Stainless Chromized Steel
Fan Control - Heating Delay Relay
Limit SPDT Fixed

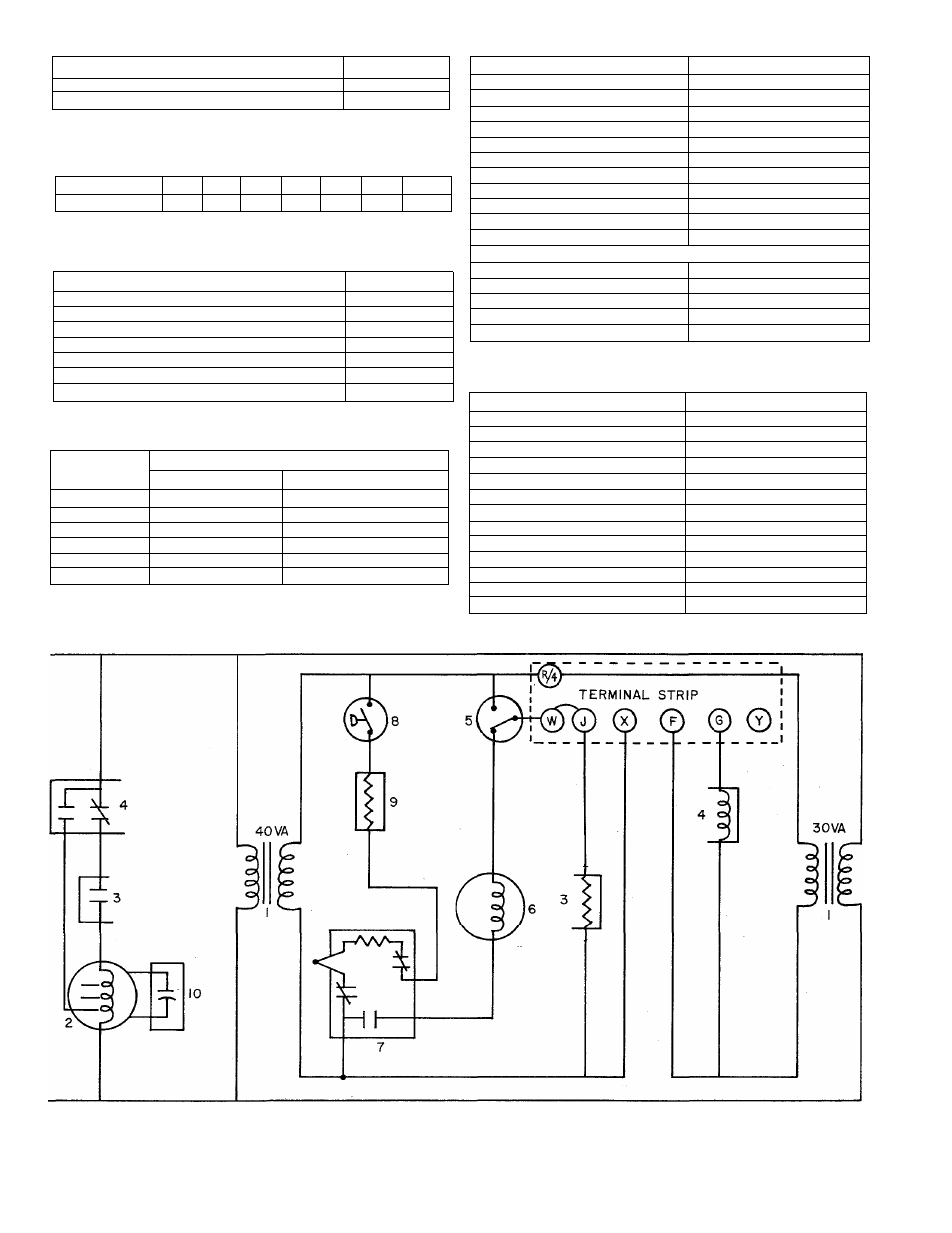

1. Transformer
2. Blower Motor
3. Blower Delay Relay
4. Cooling Blower Relay
5. Limit Heating (SPDT)
6. Gas Valve 7. Reignition Pilot 9. Resistor
8. Pilot Gas Pressure Switch 10. Capacitor
