LOW VOLTAGE

TERMINAL STRIP

ON CONDENSING UNIT

LOW VOLTAGE

TERMINAL STRIP

ON 378 UNIT

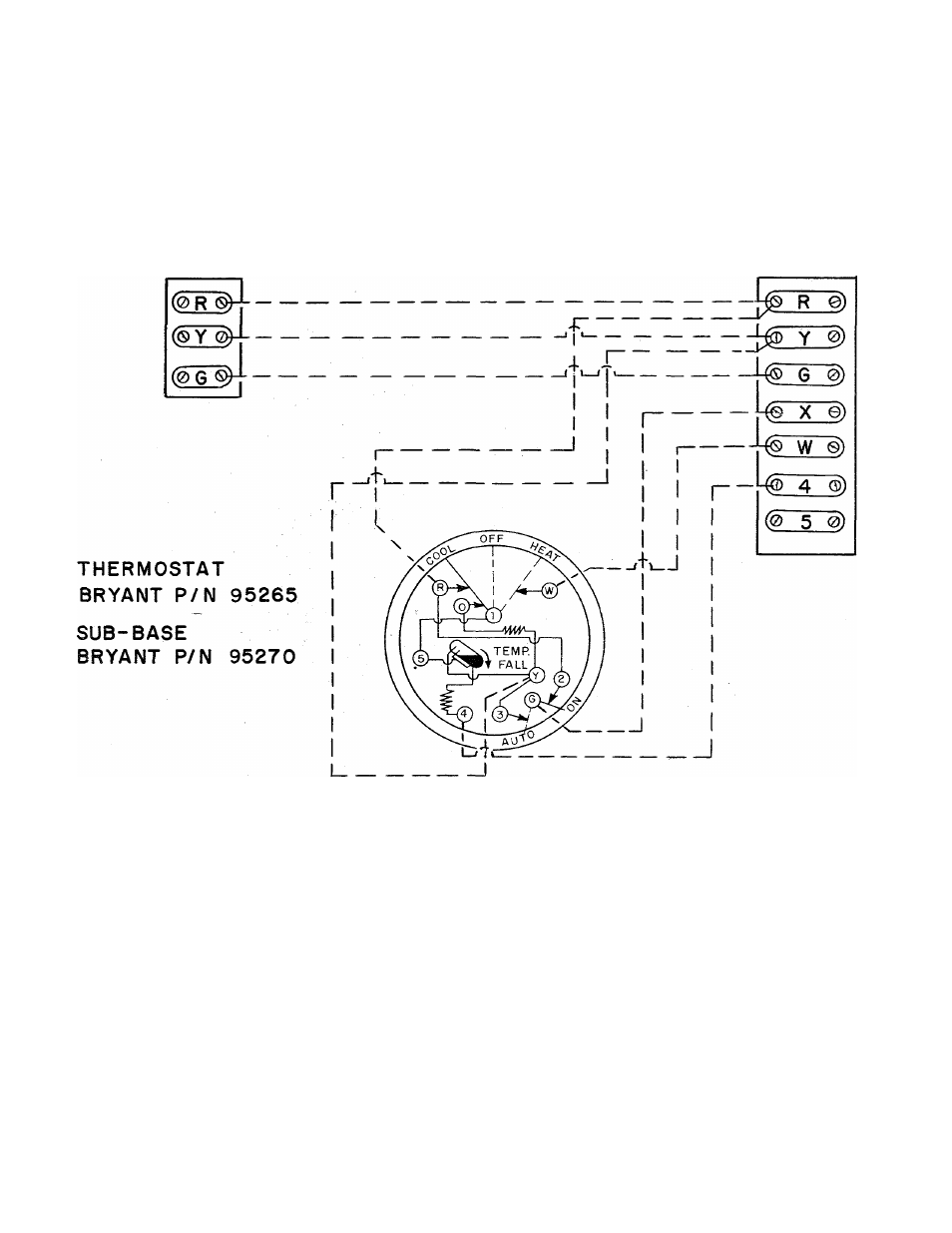

Figure 3 - Low Voltage Wiring

EH 378
