Line 6 M13 - Manual (Page 19)

Model Details
3•3
Expression Pedal Details
Almost any parameter in the M13 can be controlled by an expression pedal, as long as
you’ve set up your FX Units and Looper assignments accordingly, in Setup Mode. To set
up expression pedal heel and toe values for the parameter you’d like to control, here’s an
example of how to do it. Let’s say you’d like to control the Mix level of a Reverse Delay.
• Select Reverse Delay in one of the FX Units, and adjust the sound to your liking.
• Plug in your expression pedal, and set it to the heel down position.
• Adjust the Mix level of the Reverse Delay with Knob 5. Set it to 0%.
• Put your expression pedal in the toe down position and set the Mix level to 100%.
• Play your guitar and work your pedal; the reverse guitar will fade in and out.
You can repeat this with any effect parameters you like. Your expression pedal will control
them simultaneously. If you get to a point where you want to start over, simply unplug
your pedal from the rear panel and all unsaved pedal assignments will be cleared.
Pixel Heel & Toe
As of v2.0 firmware we’ve added a new Pixel Heel & Toe feature to display your current

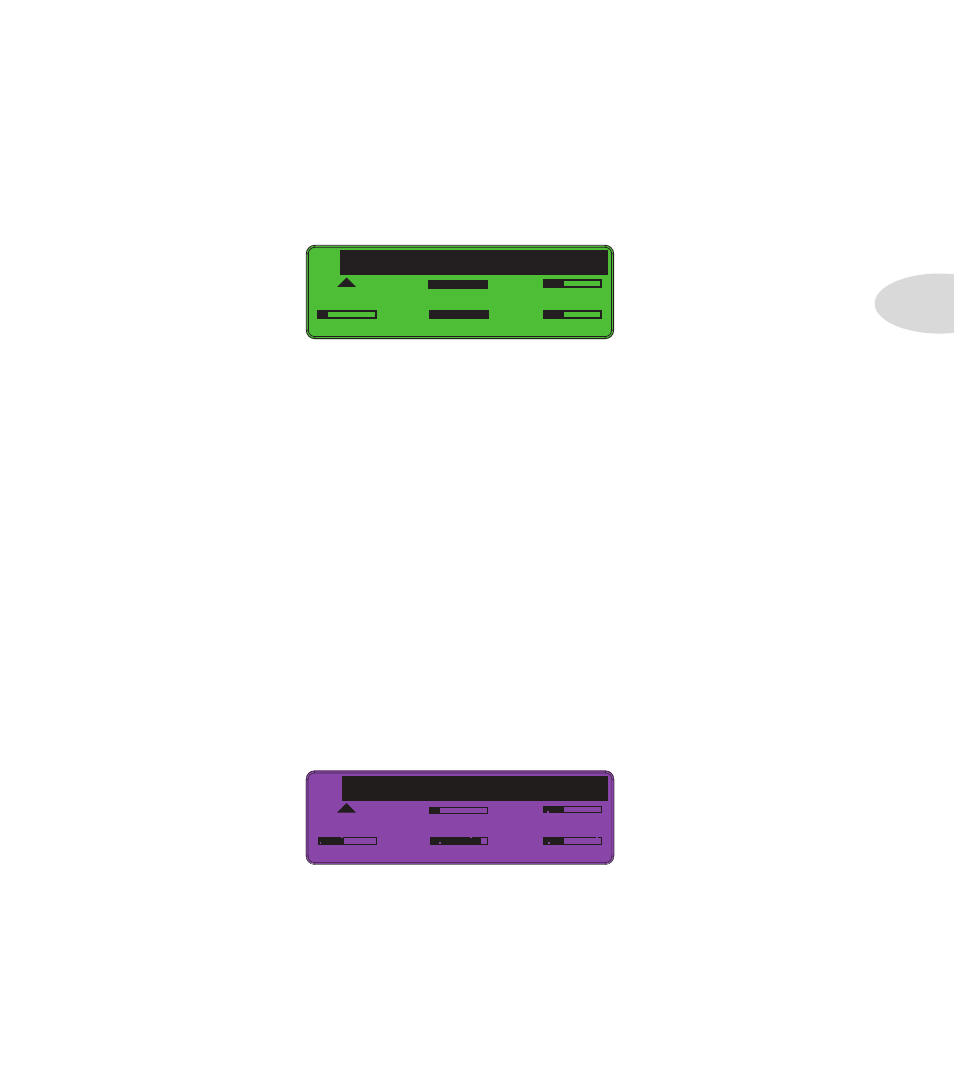

heel and toe expression pedal values. As illustrated in the LCD below, your heel and toe
values will be displayed in the horizontal or vertical parameter graphic as a clear pixel
cutout. This enables you to see exactly where your heel and toe values are set.
If no expression pedal heel and toe values are set for a particular parameter, there will be
no pixel cutout in the graphic.
Seeker
MIX
FILTER
5.80HZ
C
FREQ
8 STEPS
Q
Reverse A
MODSPD DEPTH MIX
DELAY FDBK 2000 MS
