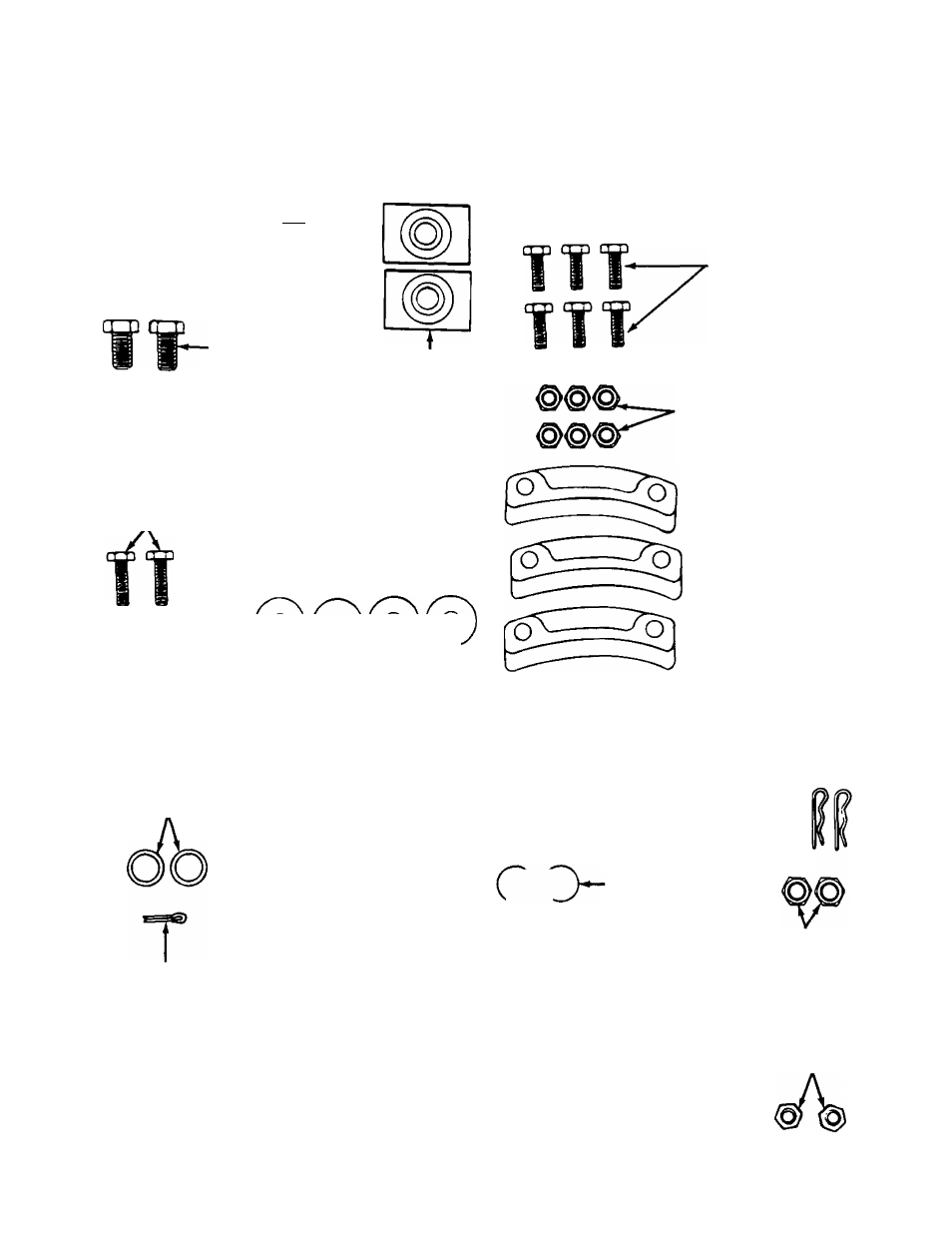

CONTENTS OF HARDWARE PACK
Lay out the hardware according to the illustration for identification purposes. Parts are illustrated approximately
one-half size. Part numbers are shown in parentheses.
{Hardware pack may contain extra items which are not used on your unit.)
ATTACHING THE HANDLE ASSEMBLY
Hex Bolts
rrnrnTI
5/16-18 X1-3/4" ^
Long (710-3180)--
^^L-1/4-20 Thread
(736-0287)
Hex Bolts
5/16-18x5/8"
Long (710-0538)
Lock
—Was hers
5/16" I.D.
(736-0119)
Handle Tabs
(784-5599)
Cupped
Washers*
1/4" I.D—
(736-0270)
Hex Bolts*
1/4-20
X
7/8" Long
(710-0252)
Carriage
Bolts*“
5/16-18
X
1-1/2" Long
(710-1250)
(£)
©
W
C“P^gWa8hers*-4 O ) ( O K O ) ( O
(736-0242)
Hex Nuts*
5/16-18 Thread (712-0267)-».O
*May be preassembled on your unit.
B
ATTACHING THE CHUTE ASSEMBLY
Hex Bolts
1/4-20
X
3/4" Long
(710-3015)
Hex Lock Nuts
1/4-20 Thread
(712-3027)
Chute Flange
Keepers
(731-0851)
ATTACHING THE CHUTE CRANK
Flat Washers
3/8" I.D.
X
5/8" O.D.
(736-0140)
ATTACHING THE SHIFT ROD
AND CLUTCH CABLES
too
Hex Bolt
5/16-18x1-1/2"
Long —•
(710-0442)
Lock Washer
5/16" I.D.----
[o]3u-(
Ferrule
711-0677)
Hairpin Clips
(714-0104)
Cotter Pin
(714-0507)
(736-0119)
Hex Nut
5/16-18 Thread
(712-0267)
9)(o
(§h~
Flat Washers
5/16" I.D.
X
5/8" O.D.
(736-0264)
Spring Washer
5/16" I.D.
(736-0271)
Hex Nuts
(Come with
Clutch Cables)
AUGER SHEAR BOLTS
The augers are secured to the spiral shaft with two hex bolts and hex
insert lock nuts. If you hit a foreign object or ice jam, the snow thrower is
designed so that the hex bolts wilt shear. Two replacement hex bolts and
nuts are provided for your convenience. Store in a safe place until needed.
CgDCÿ
Hex Bolts
5/16-18x1-1/2'
Long
(710-0890)
Hex Lock Nuts
5/16-18 Thread
(712-0158)
