SERVICE AMO ADJUSTMENTS
A
CAUTION: BEFORE PEaFORMING ANY SERVICE OR ADJUSTMENTS:
Depress clutch/brake pedal fully and
set
parking brake.
Place
motion control
lever in neutral (N) position.
Place
attachment clutch
in
“DISENGAGED” position.
Turn ignition key “OFF” and
remove
key.
Make sure the blades and all moving parts have completely stopped.
Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with
plug.
“E
a
'.
c
- t
c
.
I MEf
SfecT rig. !
i v , z \ -
A ! - ' T i D ' - i - ,-t •"!-Hh
c ' t
i a v _ r
'
-'a^5
r, ‘_/IFch-GAAFr J.OS- '~n
"< vr
li't e / . f ' / ' - r r f ' c'//errro'ver‘o is
tier
•
Roll belt
off engine pulley.
•
Disconnect clutch rod
from clutch lever by removing
retainer spring.
® Disconnect anti-sway bar from chassis bracket by
removing retainer spring.
•
Disconnect suspension arms from rear deck brackets
by removing retainer springs.
•• Disconnect front links from deck by removing retainer
springs.
•
Raise lift lever to raise suspension arms. Slide mower
out from under tractor.
IMPORTANT:
IF AN ATTACHMENT OTHER THAN THE
MOWER iS TO BE MOUNTED TO THE TRACTOR,
REMOVE THE FRONT LINKS.

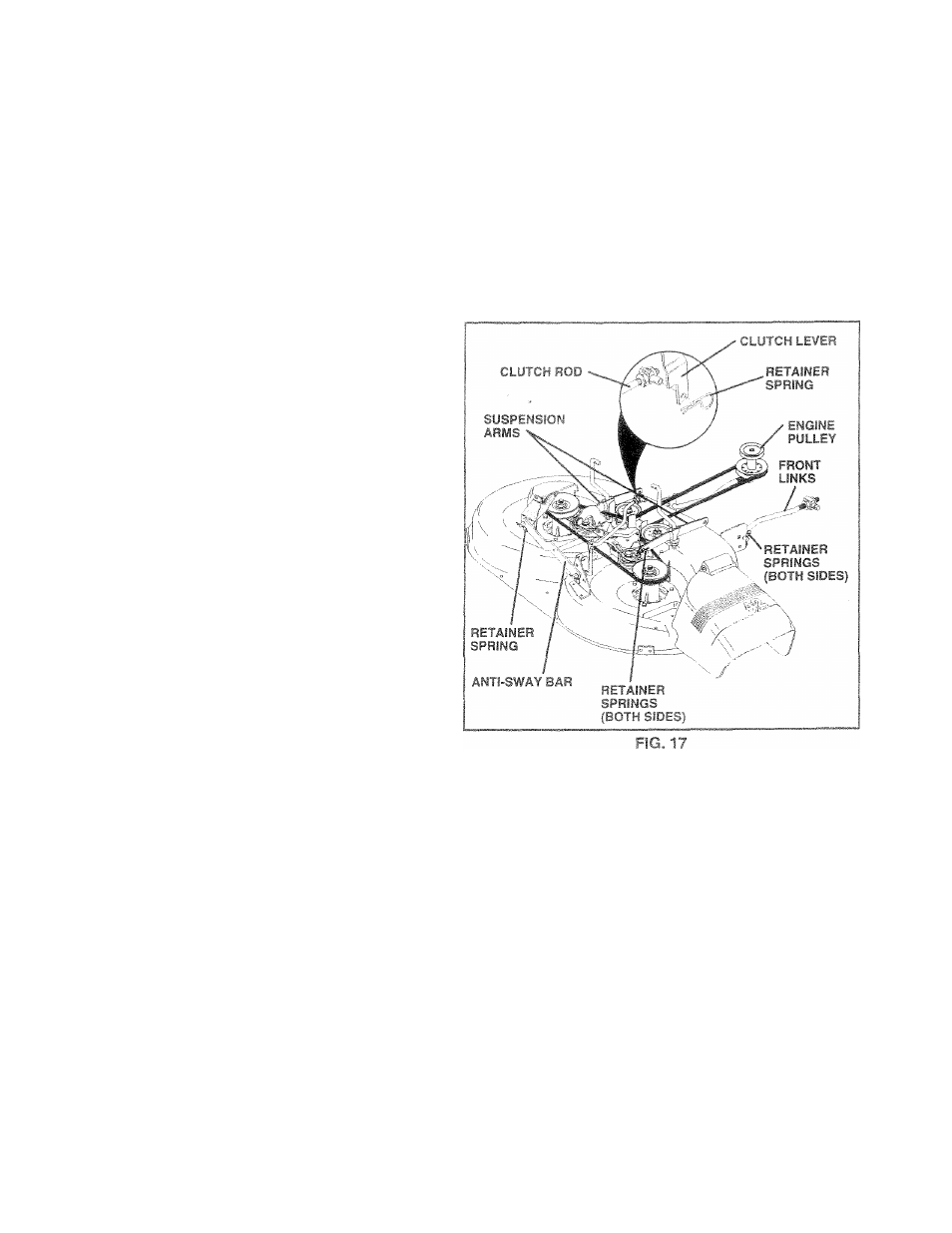

TO PSTALL MOWER (See Fig. 17)
® Raise
attachment lift lever to
its
highest position.
» Slide mower under tractor with discharge guard to right
side of tractor.
® Lower lift lever to its lowest position.
•
install mower in reverse order of removal instructions.
