i4000 - Quad M-module carrier for VMEbus
User Manual
Version: 1.2
AcQuisition Technology bv
P.O. Box 627, 5340 AP
Oss, The Netherlands
Page 13 of 25
3.2.3. M-
MODULE
I
NTERFACE
C
ONNECTOR
The following table provides signal names for the M-module male connector that is used by the i4000. The
connector consists of two rows of pins labelled rows A and B. The M-module specification also defines a third
row (C). This row is rarely used and not available on the i4000. When an M-module with row A, B and C is
used, row C is left unoccupied.

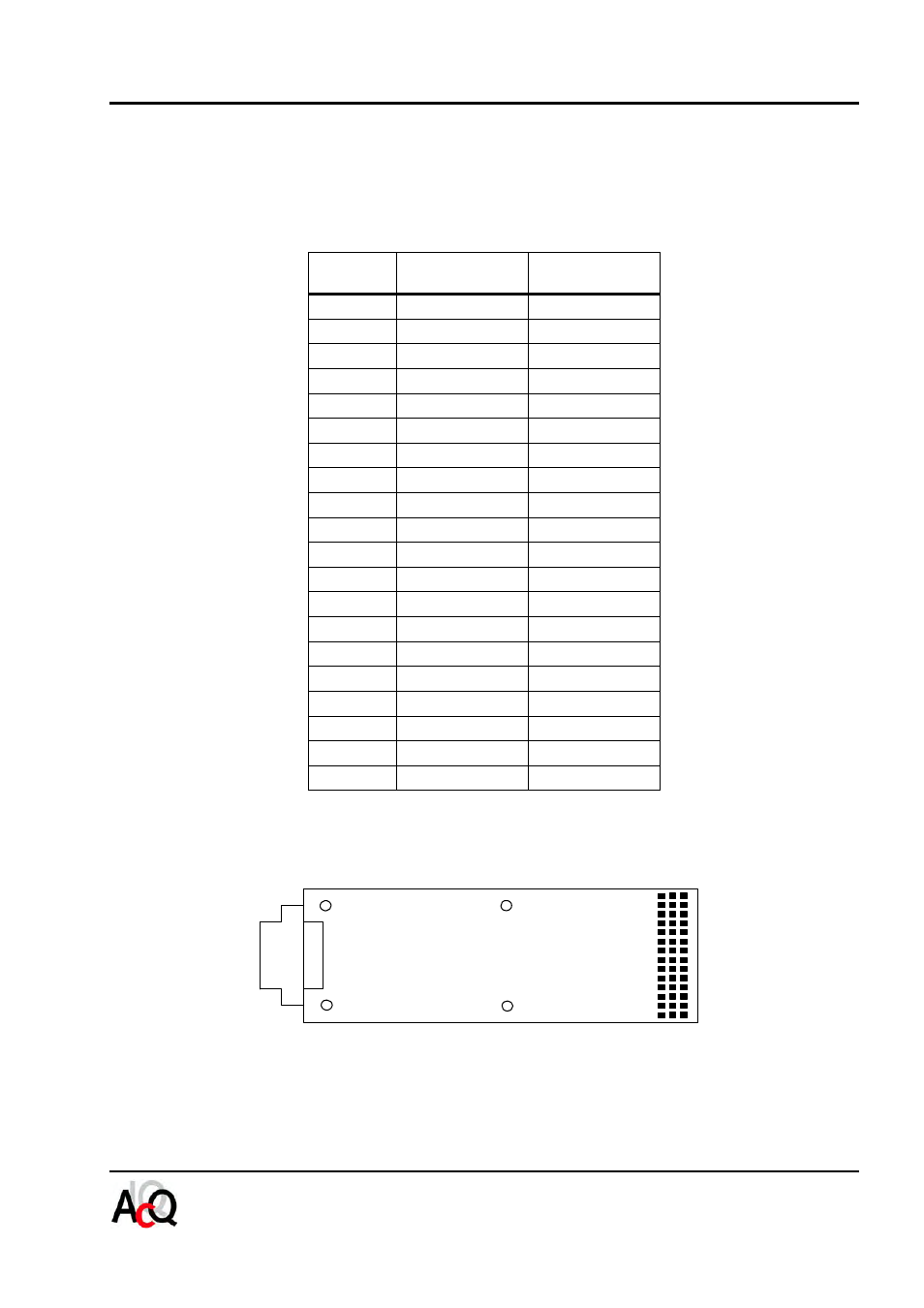

Location of the 40 or 60 pole female header connector on the M-module: (60 pole shown)
Pin
Number
Row A
Row B
01
CS*
GND
02
A01
+5V
03
A02
+12V
04
A03
-12V
05
A04
GND
06
A05
DREQ*
07
A06
DACK*
08
A07
GND
09
D08
D00
10
D09
D01
11
D10
D02
12
D11
D03
13
D12
D04
14
D13
D05
15
D14
D06
16
D15
D07
17
DS1*
DS0*
18
DTACK*
WRITE*
19
IACK*
IRQ*
20
RESET*
SYSCLK
Figure 3 M-module Interface Connector
Module component side
20
1
Row A, B, C
