CH Tech EM405D100 User Manual
Ethernet event detector instruments, Networking, Applications

Rev. *
C&H Technologies, Inc.
•
445 Round Rock West Drive
•
Round Rock, TX 78681-5012
(512) 733-2621
•
FAX (512) 733-2629
•
www.chtech.com
Sampling Strobe:
• Internal: to 5 MHz
• Front Panel: to 5 MHz
• Backplane Trigger: to 5 MHz
• Source and prescaler software
programmable
Interrupts:
• Data Stored
• FIFO Half-Full
• FIFO Full
• Time-Stamp Rollover
• Change of State
• Level Transition
• Bit Pattern
I/O Connectors:
• 44 pin DSUB
Indicators:
Power
Module Access
LAN Status
Temperature:
Operating
0° C to 50° C
Storage
-40° C to 70° C
Networking
• Easy network configuration
through web based interface
• TCP/IP and UDP/IP supported
for M-module communication
• Static IP, DHCP, and AutoIP
addressing supported
• Ethernet 10Base-T or 100Base-
TX (Auto Sensing)
Applications
• Acquisition of transient signals
• Real-time data compression
• Logic Analysis
• Event counting
Additional Information
User Manuals for this carrier and
C&H M-modules can be found on
our website at www.chtech.com.
Specifications:
Number of Channels: 32, 64 or 128
Sample Rate:
up to 5 Msps
Input Debounce:
0 to 128 ms
Software selectable
Input Specifications:
Threshold Resolution
100mV
Threshold Range
0 to 25.6V
Threshold Accuracy
±0.5% of FS
Max. Input Voltage
48V
Input Hysteresis
25mV
Input Impedance
>100K_
Input Current
<300_A
Input Masking:
Allows selection of bits to be
monitored
Local Memory:
32K deep (data and 31–bit
timestamp)
Input Polarity: Software Selectable
Ethernet
Event Detector
Instruments

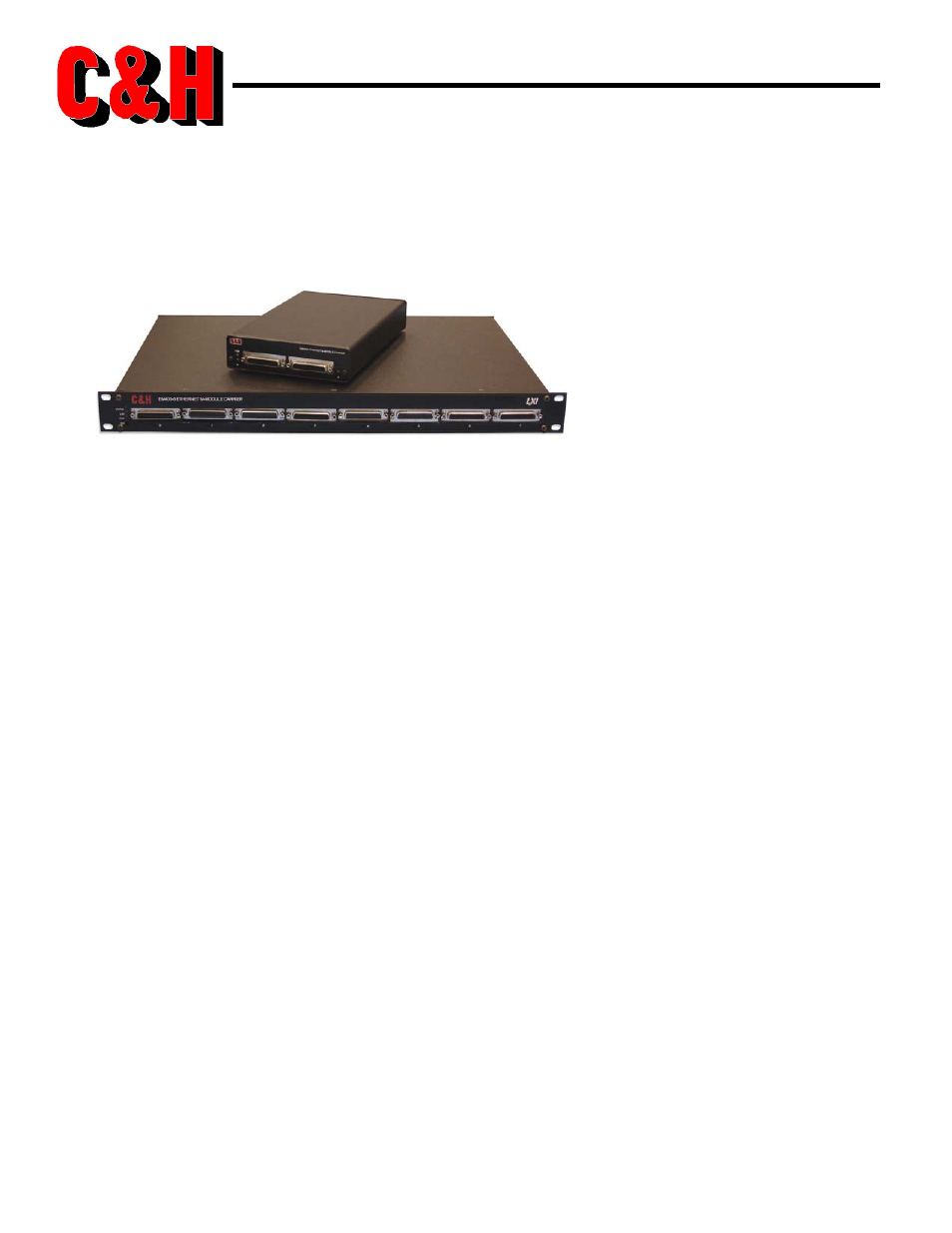

The EM405D100, EM405-8x106
and EM405-8x107 are 32, 64, and
128 channel input modules that
sample and selectively store up to
128 bits of data along with a 31 bit
time tag at rates up to 5 MSPS.
These instruments have the ability
to store all data at the specified
sample rate or to selectively store
input values based upon changes in
state on one or more of the inputs.
Each version is 1U high with the 32
channel unit designed for bench
applications and the 64 and 128
channel version for rack mounting.
