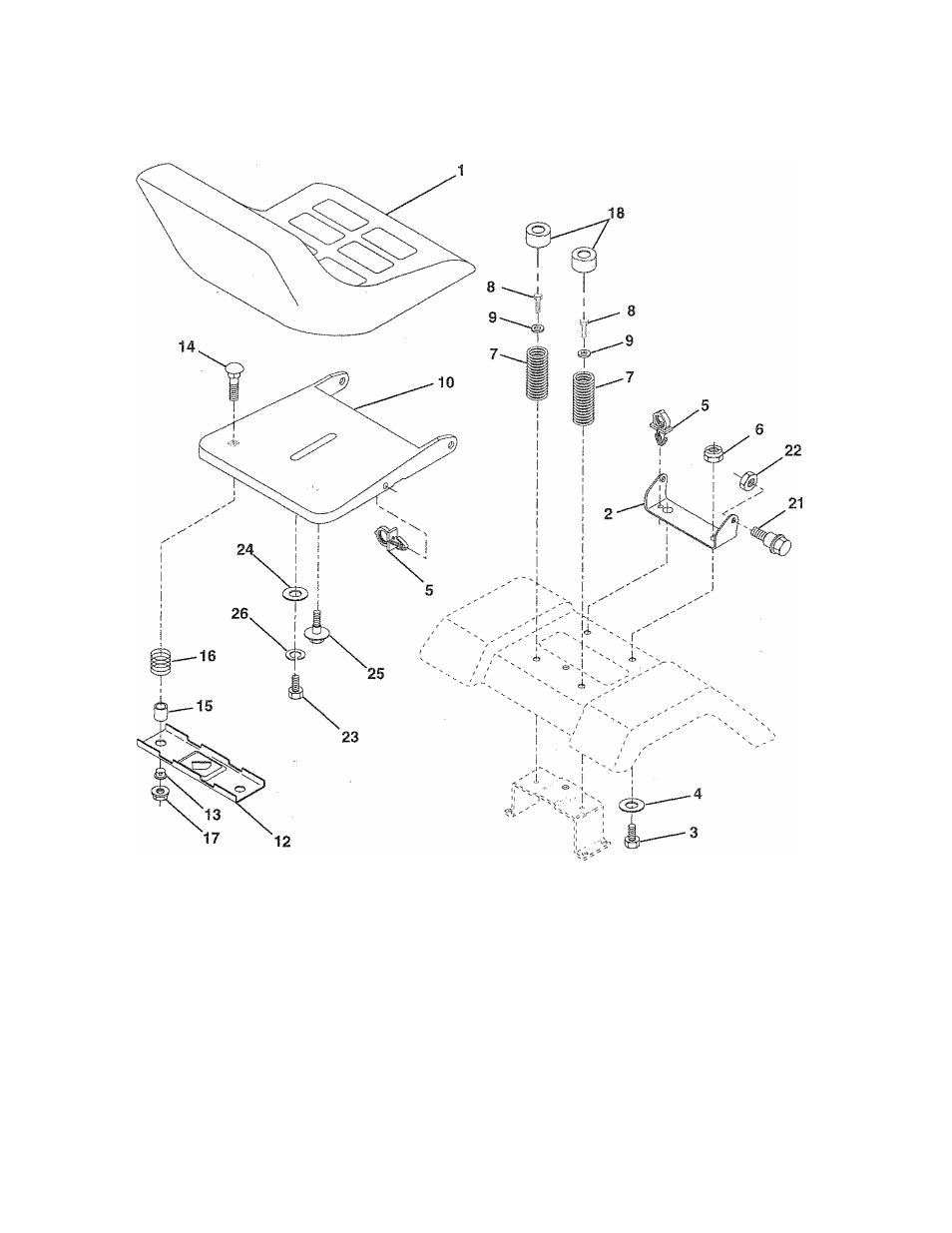

REPAIR PARTS
SEAT
ASSEMBLY
TRACTOR - - MODEL NUMBER HD145H42B
KEY
NO.
PART
NO,
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 , 140116
Seat 2300/1316 BIk/bIk AYPPL
15
134300
Spacer Split 28x 96 Yel Zinc
2
140551
Bracket Pivot Seat 8 720
16
121250X
Spring Cprsn 1 27 BIk Pnt
3
74760616
Bolt Fin Hex 3/8-16 Unc x 1
17
123976X
Nut Lock 1/4 Lge Fig Gr 5 Zinc
4
19131610
Washer Flat 13/32 x 1 x 10 Ga
18
124238X
Cap Spring Seat
5
145006
Clip Push in Hinged
21
153236
Bolt Shoulder 5/16-18 Unc BIkz
6
73800600
Nut Crownlock 3/8-16 Unc
22
73680500
Nut Crown Lock 5/16-18
7
124181X
Spring Seat Cprsn 2 250 B!k Zi
23
74780814
Bolt Fin Hex 1/2-13 X 7/8 Gr 5
8
17490616
Screw Thdroi 3/8-16 X 1 Ty-tt
24
19171912
Washer 17/32 X 1 -3/16 X 12 Ga
9
19131614
Washer 13/32 X 1 X 14 Ga
25
127018X
Bolt Shoulder5/16-18X62
10
155925
Pan Seat
26
10040800
Washer Lock Hvy Hid Spr 1/2
12
13
121246X
121248X
Bracket Mounting Switch
Bushing Snap Btk Nyi 50 !d
NOTE:
Aii component dimensions given in U.S. inchf
14
72050411
Bolt Rdhd Sht Nk 1/4-20x1-3/8
1 inch = 25.4 mm
