SERVICE AND ADJUSTMENTS

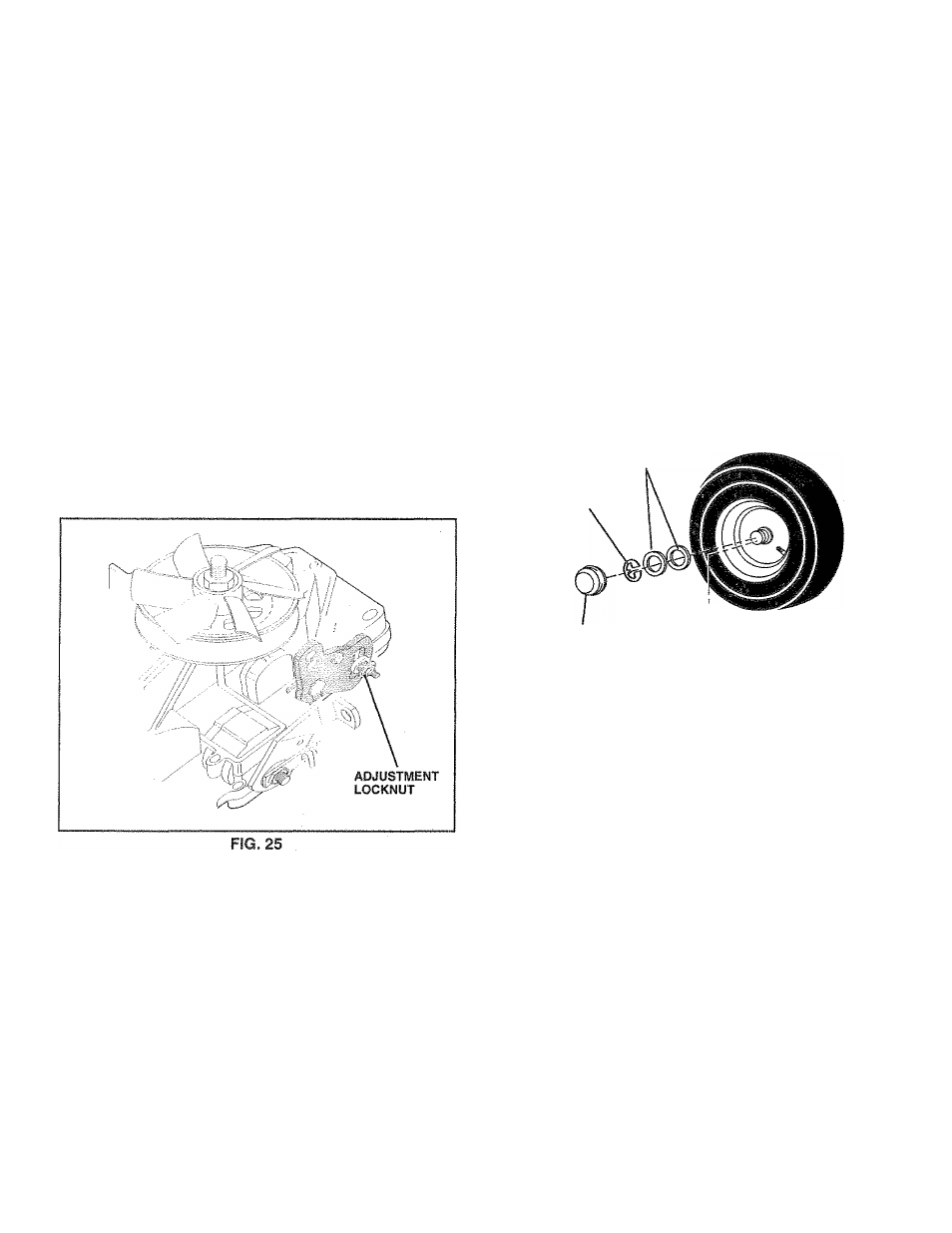

TO ADJUST MOTION CONTROL LEVER (See

Fig„ 25)

The motion control lever has been preset at the factory and
adjustment should not be necessary.

If for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the right side of transmission.
® Park tractor on level surface. Stop tractor by turning

ignition key to “OFF” position, and engage parking
brake.

® Adjust motion control lever by tightening adjustment

locknut one half (1/2) turn.

NOTE: if for any reason the effort to move the motion

control lever becomes too excessive, reverse the above
adjustment procedure by loosening locknut 1/4 to 1/2 turn.

Road test tractor after adjustment and repeat procedure if

necessary.

TRANSMISSION

REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after réinstallation and

before operating the tractor. See “PURGE TRANSMIS
SION” in the Operation section of this manual.

TO REMOVE WHEEL FOR REPAIRS

(See

Fig. 26)

“ Block up axle securely.

» Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do
not lose).

Repair tire and reassemble.

On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

» Replace washers and snap retaining ring securely in

axle groove.

Replace axle cover.

NOTE; To seat tire punctures and prevent flat tires due to
slow leaks, tire sealant may be purchased from your local
parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

WASHERS

RETAINING
RING

AXLE COVER

SQUARE KEY

(REAR WHEEL ONLY)

FÎG. 26

TO ADJUST STEERING WHEEL ALIGNMENT

if steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on
your tractor. If damage has occurred to affect the front
wheel toe-in or camber, contact your nearest authorized
service center/department.
