Blades
OFF-SEASON STORAGE
The following steps should be taken to prepare your
chipper-shredder-vacuum for storage.
1. Remove all dirt from exterior of engine and equip
ment.
2. Refer to engine manual for correct engine storage
instructions.
3. Wipe unit with an oiled rag to prevent rust (use a
light oil or silicone), especially if storing in an
unventilated or metal storage shed.
4. Store in a dry, clean area. Do not store next to cor
rosive materials, such as fertilizer.

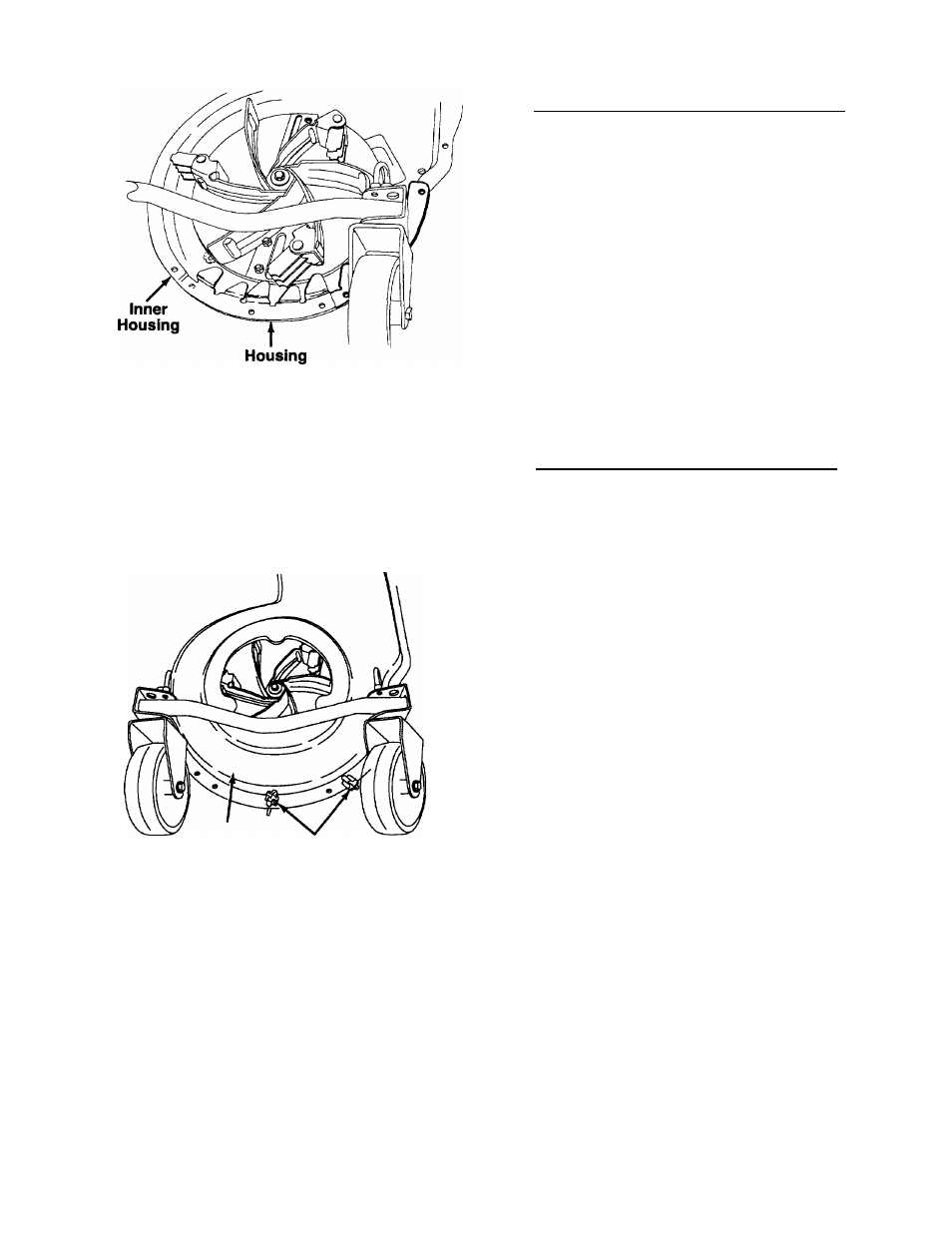

FIGURE 19.
25. Place the outer housing against the inner housing.
Insert two screwdrivers into the holes as shown in
figure 20. This will hold the blades in place while
attaching the outer housing. Secure with the four
teen self tapping screws that were removed in
step 12. Start all screws first before tightening.
OPTIONAL EQUIPMENT
Hose Attachment Kit Model 290-005 is available as
optional equipment.
Outer
Housing
Screwdrivers
FIGURE 20.
26. Finish reassembling, following steps 1 through 11
in reverse order.
11
