SECTION 4: KNOW YOUR LAWN MOWER

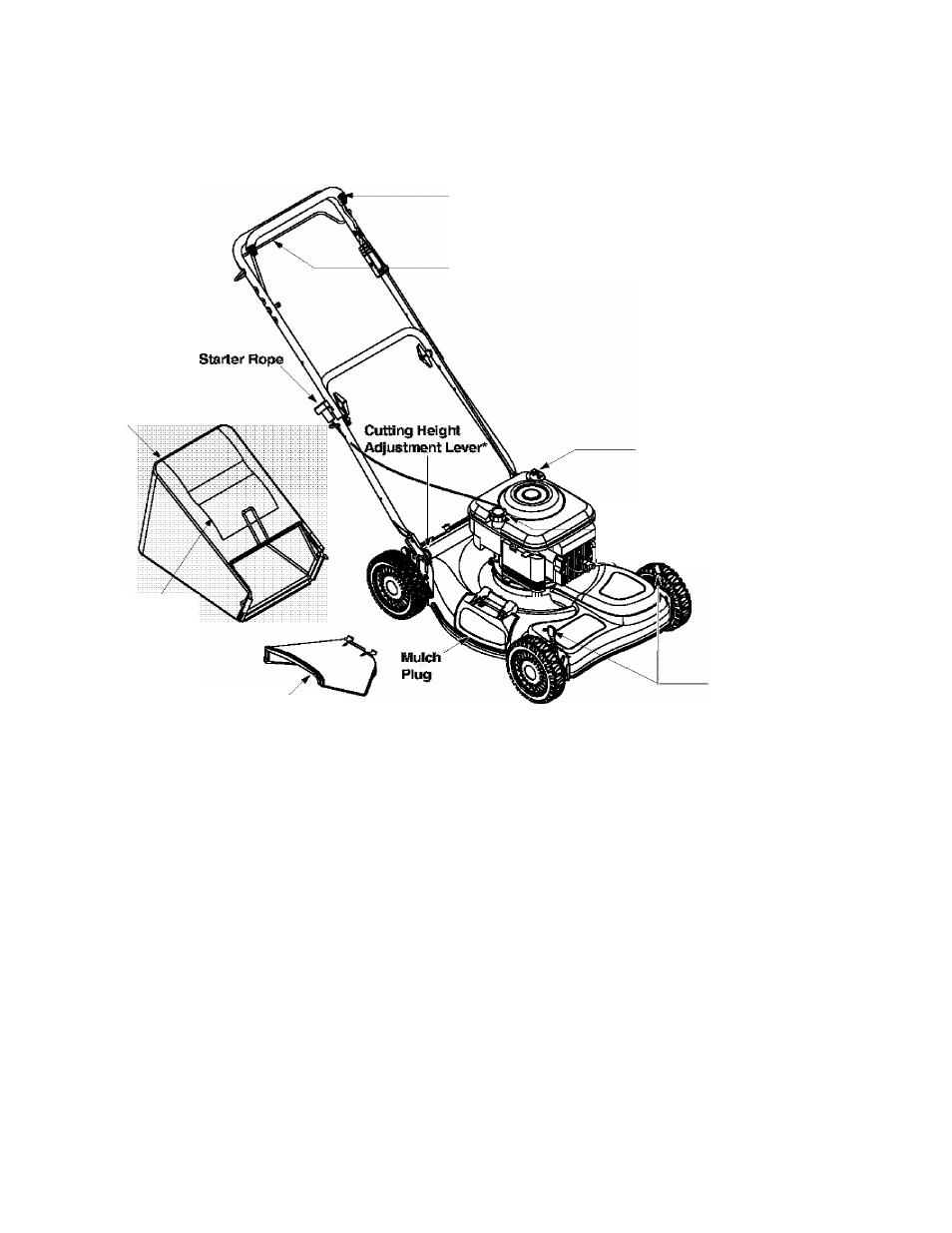

Read this owner’s manual and safety rules before operating your lawn mower. Compare the illustrations in Figure
11 with your lawn mower to familiarize yourself with the location of various controls and adjustments.
Blade Control Handle
l-ov№r Bail Handle
Gnass Bag
Oil Plug
-Gasoline Fill
ll^ ----------------S[»u'k Plug
Bag-Fill
Indicator
' Fourth laser not shown
Side Discharge
Chute Deflator
Recoil Starter
The recoil starter is attached to the handle. Stand
behind the unit and pull the starter rope to start the unit.
Primer
The primer is used to pump gas into the carburetor. Use
it to assist In starting a cold engine, but do not use It
when restarting a warm engine after a short shutdown.
Refer to engine manual for location of the primer.
Blade Control Handle
The blade control handle Is located on the upper handle
of the mower. The blade control handle must be
depressed in order to operate the unit. Release the
blade control handle to stop the engine and the blade.
A
WARNING:
The blade control handle is a
safety device. Never attempt to bypass its
operations. The blade will be rotating whenever
the engine is running.
Cutting Height
Adjustment l^sver*
Figure 11
Lower Bail Handle
The lower bail handle is located on the upper handle
and is used to engage the drive. Squeeze the bail
handle against the upper handle to engage the drive;
release it to slow down or stop the mower from
propelling.
Throttle Control
The engine is equipped with a constant speed throttle
which Is set at full throttle for maximum engine and
cutting performance.
Crass Bag/Bag-Fill Indicator
The grass bag is equipped with a bag-fill indicator to
add convenience to your work. While the mower is
running, air will flow through the bag and Into the “sail."
If the grass catcher is empty, air flows through easily
pushing the sail up. If the grass catcher is full, air does
not flow through It allowing the sail to fall. So the
position of the sail acts as a bag-fill indicator signifying
when to empty the grass bag.
