7.

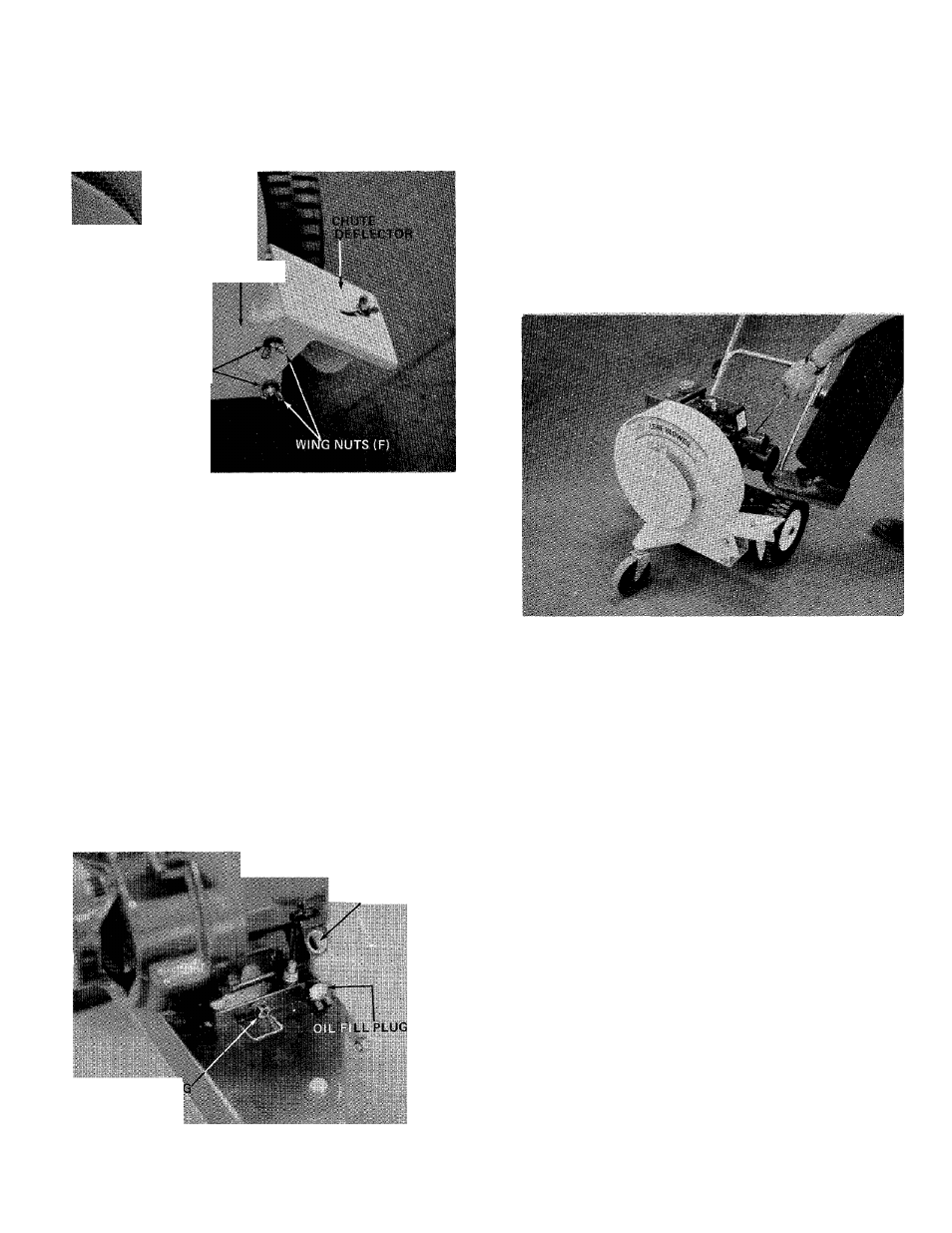

Place the pre-assembled chute deflector on’the
blower housing. See figure 7. Secure in place with
four flat washers (G) and wing nuts (F).
1
01’.TR HOUSiru.
FLAT WASHER (G)
FIGURE 7
BEFORE STARTING ENGINE
STARTING ENGINE
1. Move throttle to start position.
2.
Pull starter rope with quick, full stroke once.
Move hand throttle to fast position and pull
starter rope again. See figure 9.
3.
When engine starts, move throttle to "RUN"
position until engine warms up.
1.
Remove oil fill plug and fill crankcase with 1-1/4
pints S.A.E. No. 30 oil. See figure 8.
2.
Clean fuel tank with good grade regular, clean,
fresh
gasoline.
DO
NOT
MIX
OIL
WITH
GASOLINE.
FOR
COMPLETE
ENGINE
INFORMATION,
READ
ENGINE
INSTRUCTION
BOOKLET
BEFORE
STARTING
OR
OPERAT
ING.
FIGURE 9
oil I ILL H.LIiL
OIL ORAIN PLU
TWO WAY AIR DISCHARGE
WARNING
FIGURE 8
Do Not make this adjustment or any
adjustment with the engine running.
Stop the engine, disconnect the spark
plug wire and ground plug wire to
engine block.
Your Leaf Blower is equipped with an adjustab
chute deflector. Simply loosen two wing nuts at each
side of deflector to raise or lower. You also can
direct the air by loosening the wing nut on top and
moving the deflector from side to side. See figure 10.
