DIAGNOSTIC TESTS
4

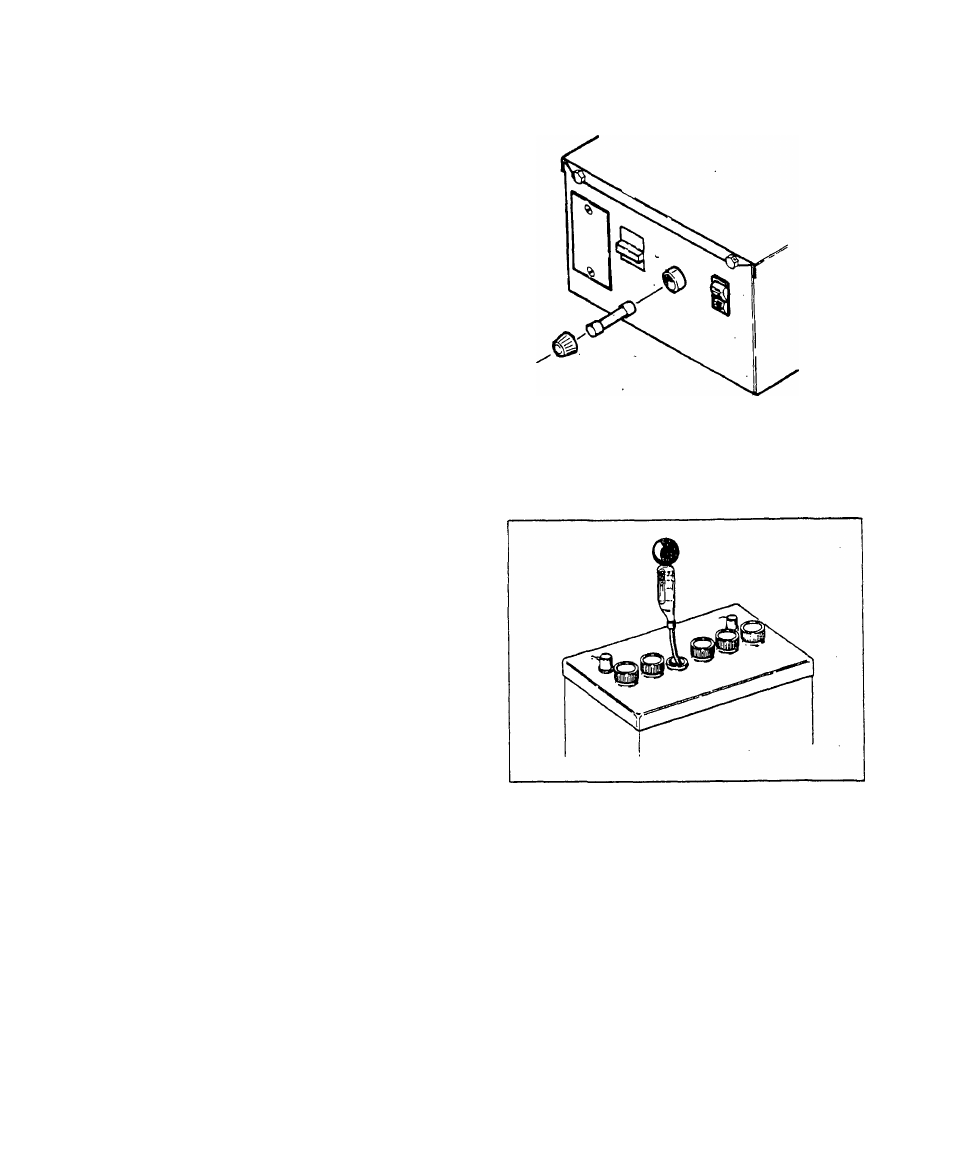

TEST 1 -
l.S.AMP -FUSE
Remove and visually inspect the 15
amp fuse. A more thorough check may
be made with a Volt-Ohm-Milliammeter,
a_s foil o\vs :
1. Set VOM to ''+nC" and to ”Rxl”
scale.
2. Connect test probes together and
’’Zero" the meter.
3. Touch test probes to the fuse
ends - meter needle should swing up
scale and indicate "Zero” ohms. If
needle does not move upscale, replace
the fuse.
RESULTS: 1.) Fuse tests bad.............Install new 15 Amp Fuse
2.) Fuse tests good....................................Continue tests in "Diagnostic
Flow Charts", Section 3
TEST 2 -
BATTERY
Check battery condition, as well as
the
condition,
cleanliness
and
sec
urity
of
battery
cables
and.connec
tions.
RESULTS: 1.) Battery, cables or connections
test bad....................................... .....Replace or repair the defec
tive component
2.) Battery, cables and connections
test good.................................................. Continue tests in "Diagnostic
Flow Charts", Section 3
Issued 3-78
4.1
