9.

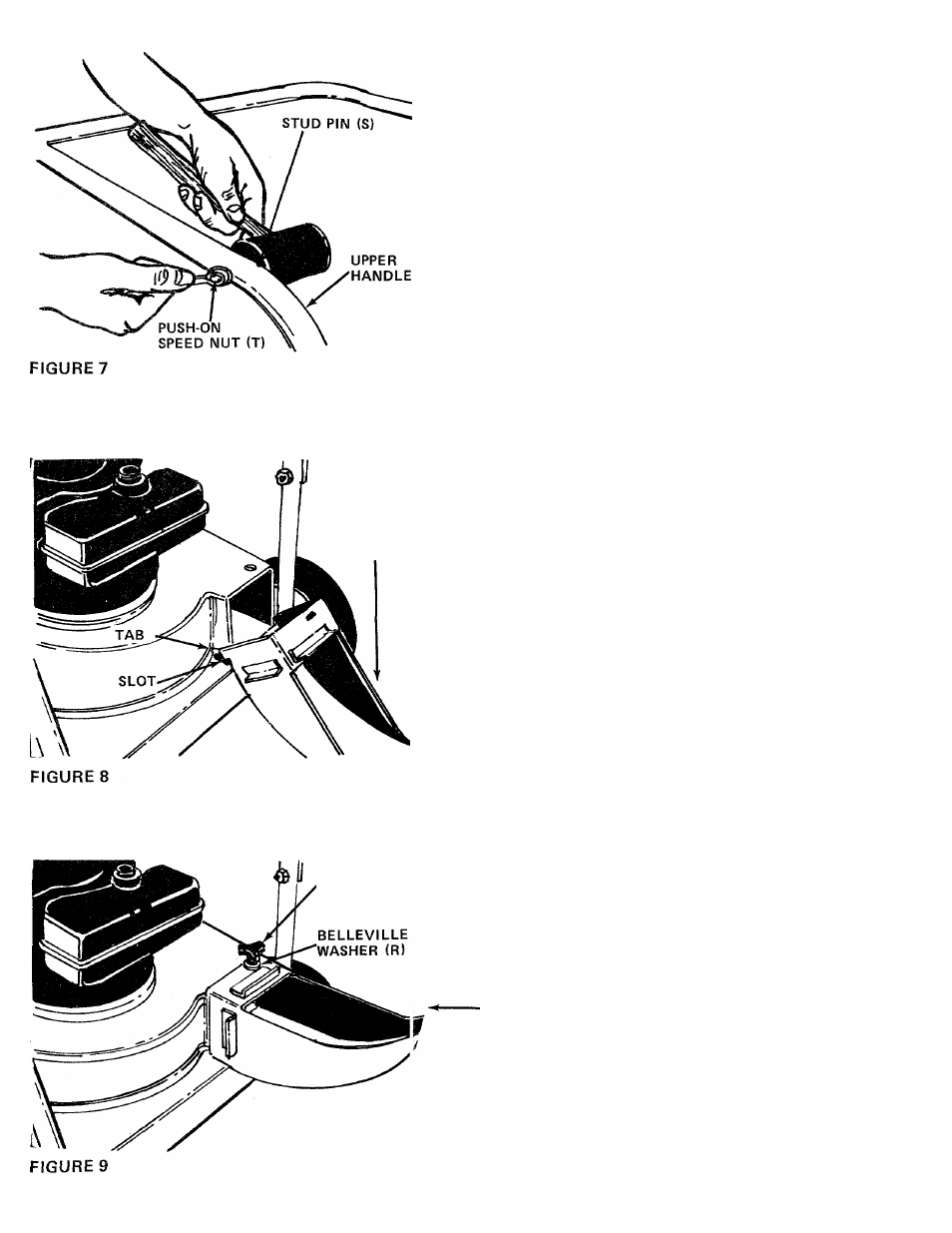

Place the stud pins (S) in holes in upper handle
(head of pins go to the inside of handle). Secure
pins
with push-on speed nuts (T) by holding
speed nut with box wrench and tapping pin with
hammer. See figure 7.
AIR
DUCT
ASSEMBLA
10.
Place the tabs on the air duct assembly (D) into
the slots in the frame as shown in figure 8. Raise
the air duct into position.
THUMB
.SCREW (Q)
11.
Secure air duct with thumb screw (Q) and belle-
ville washers (R). Cupped side of washer must be
against the air duct. See figure 9.
