1/4-20 Hex Hut

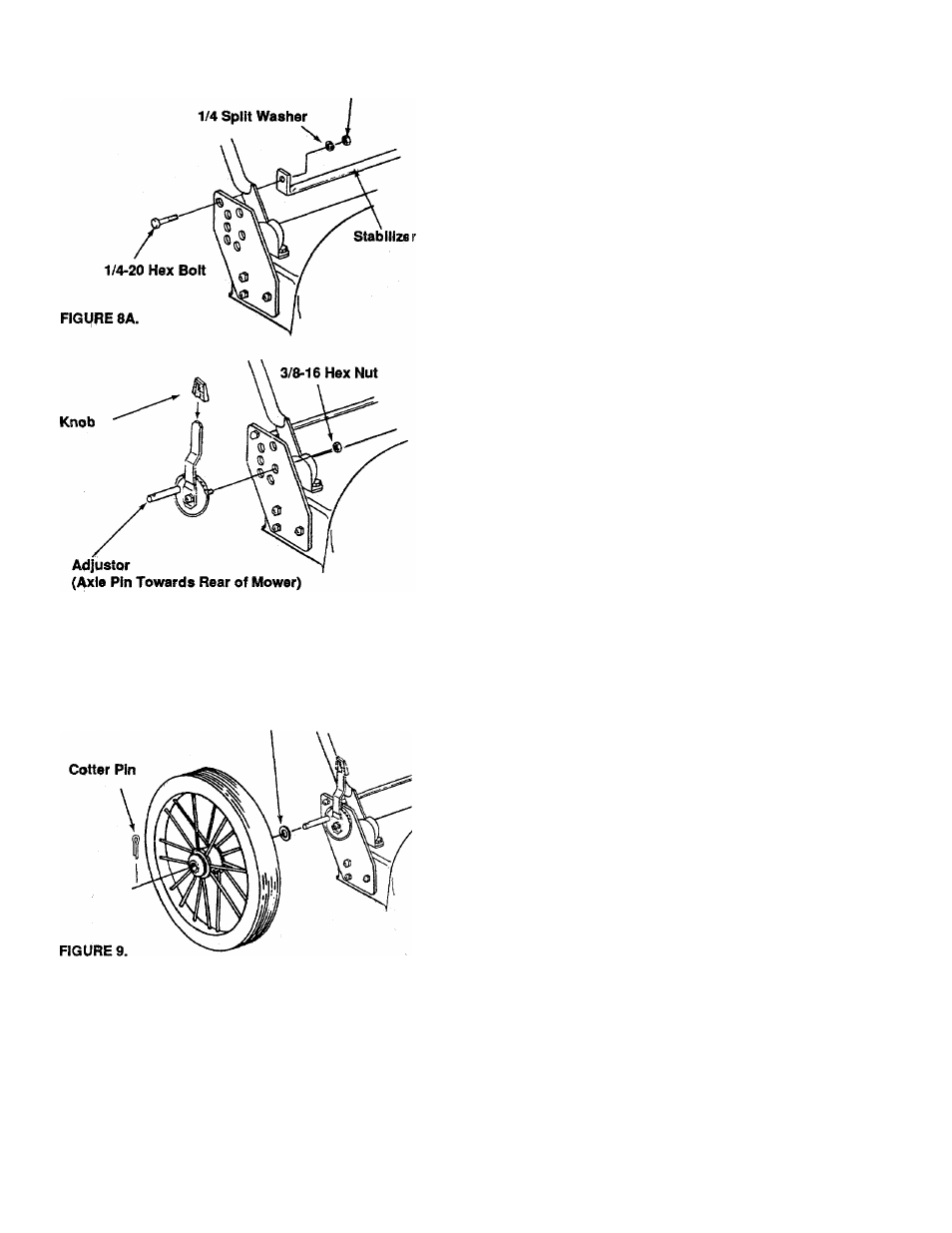

AHACHING THE STABILIZER

Attach stabilizer to rear brackets with 1/4-20 x 5,,
hex bolts, 1/4" split washers and 1/4-20 hex nuts.
See figure 8A. Assemble both sides loosely then

tighten securely.

AHACHING THE REAR HEIGHT ADJUSTORS

Attach the rear height adjustors to the angled holes
in brackets as shown. See figure 8B. Secure with
3/8-16 hex keps nuts.

NOTE: The adjustors are different - assemble so axle pin
on adjustor is toward rear of mower on both sides as shown.

Assemble plastic knobs to wheel height adjustor
levers by pressing on or tapping lightly.

FIGURE 8B.

1/2" Flatwasher

AHACHING THE REAR WHEELS

Attach rearwheels to adjusters with 1/2" flatwashers

and cotter pins. See figure 9. Bend ends of cotter
pins to secure.
