Tibled at the factory with e
ition of your tractor all part
5 insure proper tightness.

( r.n.i. I , ff-|' •

<

1

ii " i1 nr

5 and hardware you assembi

Tr

REQUIRED FOR ASSEMBO

jckei wrer

iier. btanaard

* Ihllf, hr*

I ire pressure gauge

«/rench sizes are listed.

i !; .)/ “ .

i Ci.. ■ 1 11

( z ) 7/1

1

)" wrenches

(2) 1/2" wrenches

(1) 9/16" wrench

mtioned in this manual, it

ntf-.arss Vile I, / j I t ir rhe operating position (seated
hf hind 'Hr . I - li. I j iisei'i

ICBriiiWL I RAC roR FROM CARTON

UNPACK CARTON

Remove all accessible loose part's and parts cartons

from carton (See page 5).

Cut, from fop to bottom, along lines on all four corners

of carton, and lay panels flat.

Check for any additional loose parts or cartons and

remove.

BEFORE BOILING *“HACTOR OFF SKID

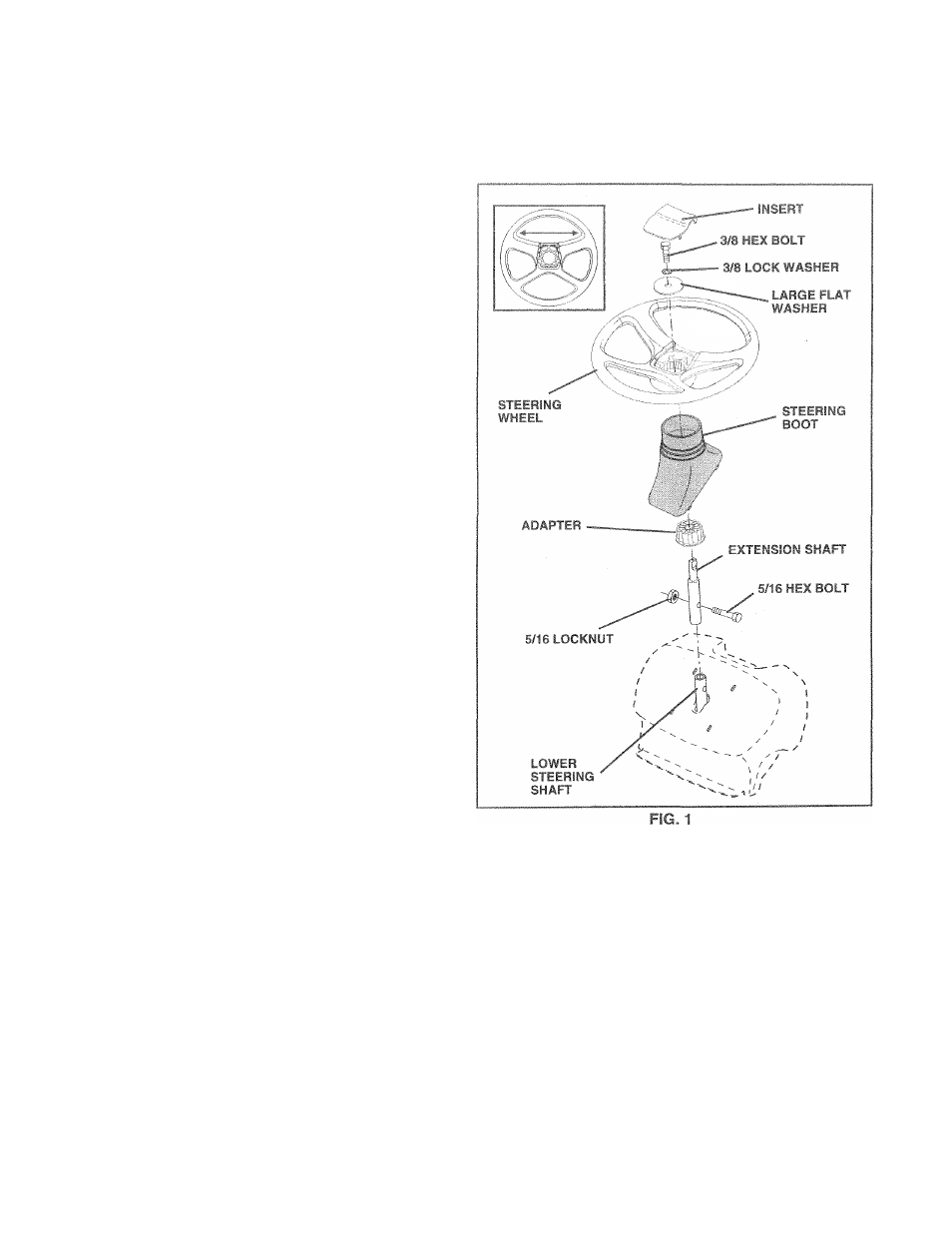

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

Slide extension shaft onto lower steering shaft. Align

mounting holes in extension and lower shafts and
install 5/16 hex bolt and locknut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

18-22 FT, LBS TORQUE.

Place tabs of steering boot over tab slots in dash and

push down to secure.

INSTALL STEERING WHEEL

Position front wheels of the tractor so they are pointing

straight forward.

» Slide steering wheel adapter onto steering shaft exten­

sion.

Position steering wheel so cross bars are horizontal

(left to right) and slide inside boot and onto adapter.

Assemble large flat washer, 3/8 lock washer, 3/8 hex

bolt and tighten securely,

Snap steering wheel insert into center of steering

wheel,

» Remove protective materials from tractor hood and

grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES
IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR
IS TO ROLL OFF SKID,

TO ROLL TRACTOR OFF SKID (See Opera­
tion section for location and function of con­
trols)

Press lift leverplungerand raise attachment lift lever to

its highest position.

Release parking brake by depressing clutch/brake

pedal.

Place freewheel control in freewheeling position to

disengage transmission (See “TO TRANSPORT” in
the Operation section of this manual).

Roll tractor backwards off skid,

Remove banding holding discharge guard up against

tractor.
