In addition to the effective use of sound insulatingma-
terials, construction of a special noise abatement
compartment might be considered to reduce noise
levels. Such a compartment might be constructed as
follows (Figure 11):

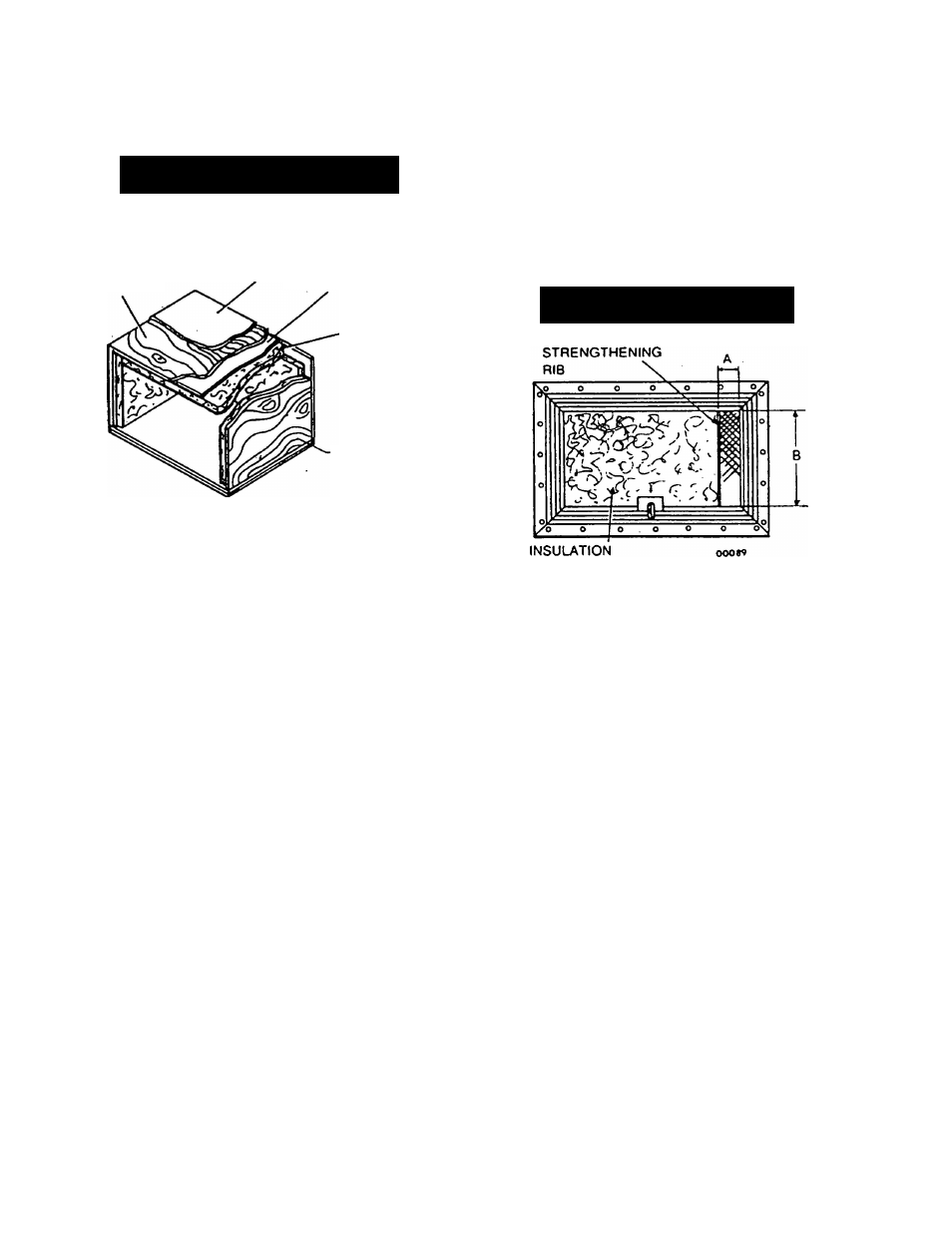

Figure 11 — Typical Noise Abatement
Compartment
PLYWOOD
5/8” THICK
EXTERIOR
SOUND
INSULATION
METAL LINER
FIBERGLASS
INSULATION
PLYWOOD
5/8" THICK
DANGER; DO NOT INSTALL ANY INSULATION OR
OTHER ABSORBENT MATERIALS ON THE INTERI­
OR OR UNDERSIDE OF THE COMPARTMENT
FLOOR.
Seal all compartment door edges to prevent noise leak­
age around the door perimeter.
Line the compartment door interior (except for air open­
ings) with suitable, fire proof sound insulation (such as 1 -
inch thick fiberglass with a 2-pound density) See Figue
12
.
Figure 12 — Typical Compartment
Door Construction
Use 5/8-inch thick or 3/4-inch thick plywood in the com­
partment.
Construct the compartment floor of a double thickness of
5/8-inch or 3/4-inch plywood.
Line the compartment interior walls and floor, as well as
the underside of the floor, with 26-gauge galvanized
steel.
Vapor seal all compartment seams and joints.
Over the galvanized steel lining, install a selected combi­
nation of acoustical materials as mentioned in “Sound
Insulating Materials."
A TIMES B MUST EQUAL_AT LEAST
100 IN.'OF FREE AIR OPENING
—
9
—
