ASSEMBLY
UNPACK CARTON
B
l

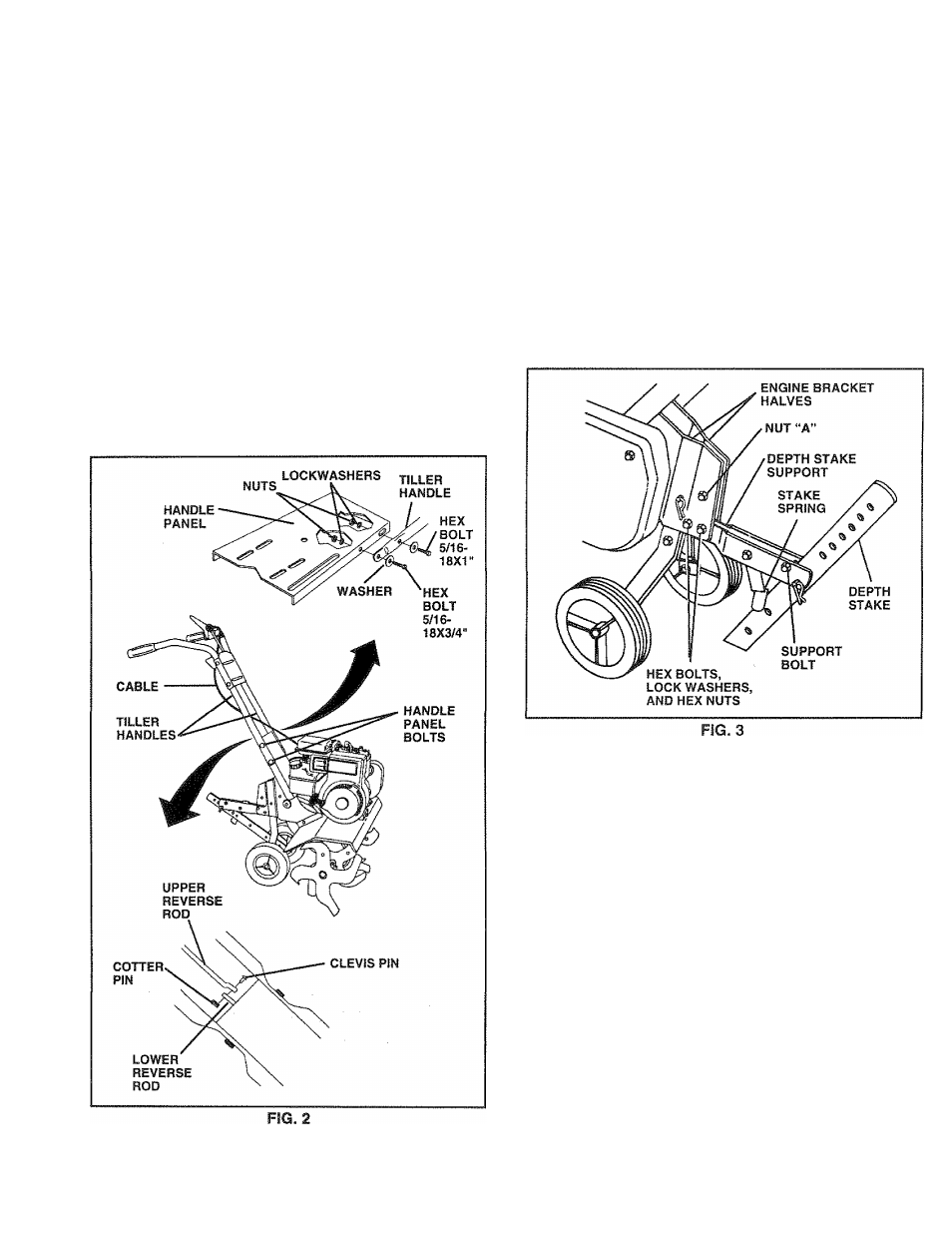

INSTALL HANDLE (See
Fig. 2)
A
CAUTION:
Be careful of exposed
staples when handling or disposing of
cartoning material.
IMPORTANT:
WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE{S).
*
Cut cable ties securing handies.
« Slowly lift handle assembly up and align handle holes
with handle panel hole and slot.
® Loosely assemble hardware as shown. Be sure the
shorter (3/4" long) hex bolt is assembled in lower hole
of handle. Repeat for opposite side. Tighten all
hardware securely.
*
Cut cable ties securing tiller to skid and remove tiller
from skid.
INSTALL REVERSE ROD (See Fig. 2)
* Secure upper reverse rod to lower reverse rod using
clevis pin. Secure with cotter pin.
INSTALL DEPTH STAKE ASSEMBLY
(See Fig. 3)
® Loosen nut “A".
» Insert stake support between engine bracket halves
with stake spring down.
® Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Tighten nut “A".
® Depth stake must move freely. If it does not, loosen
support bolt.
HANDLE HEIGHT
» Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Adjust
ments section of this manual).
TILLING WIDTH
® Tilling width may be adjusted to better handle your
tilling conditions (See ‘TINE ARRANGEMENT” tn the
Service and Adjustments section of this manual).
TINE OPERATION
9
Check tine operation before first use. (See “TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
