TILLER- -MODEL NUMBER CHDF550E

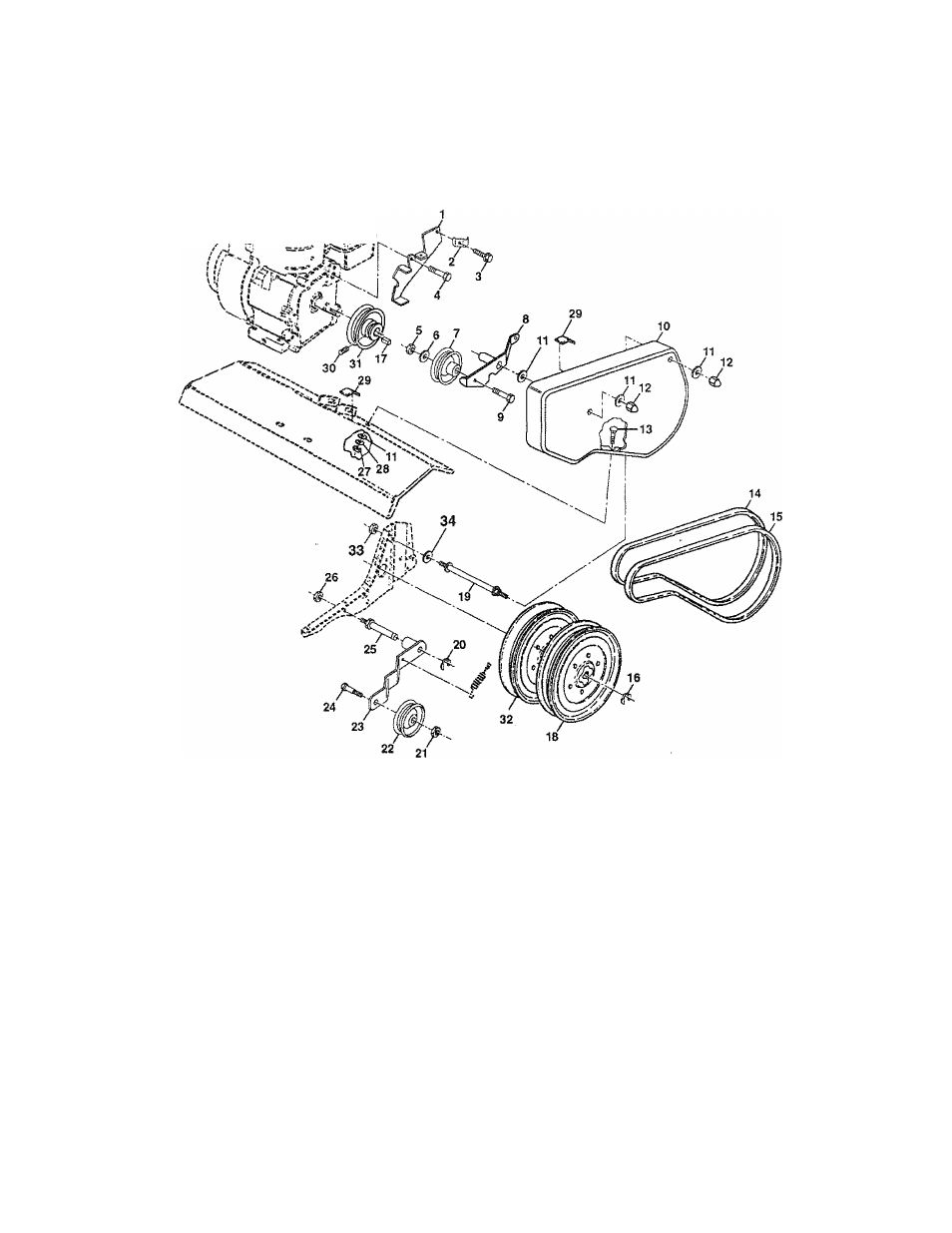

BELT GUARD AND PULLEY ASSEMBLY
REPAIR PARTS
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
166013
Assembly, Bracket, Belt Guard
20
12000036
Ring, Klip
2
9484R
Clip, Cable
21
73350600
Nut, Hex, Jam 3/8-16
3
86777
Screw, Hex, Washer Hd., Slotted,
22
161806
Pulley, idler
Thd. Cutting #10-24 x 1/2 Type D
23
162290
Arm, idler
4
74610812
Bolt, Hex 1/2-20x3/4
24
74760620
Bolt, Hex 3/8-16 x 1-1/4
5
73220600
Nut, Hex 3/8-16
25
106968X
Shaft, Idler Arm
6
19131316
Washer 13/32 x 13/16 x 16 Ga.
26
73350500
Nut, Hex, Jam 5/16-18
7
2009J
Pulley, Idler, Reverse
27
73220400
Nut, Fin Hex 1/4-20
8
1271SOX
Assembly, Arm, Reverse idler
28
10040400
Washer Lock Hvy Helical 1/4
9
74760628
Bolt, Hex 3/8-16
X
1-3/4
10
156705X428
Guard, Belt
29
109227X
Pad, Idler
11
19091016
Washer 9/32 x 5/8 x 16 Ga.
30
23200404
Screw, Set, Socket, Headless
12
104213X
Nut, Cap 1/4-20
C.P. 1/4-20x1/4
13
72140406
Bolt, Carriage 1/4-20 x 3/4
31
101189L
Sheave, Engine
14
133035
V-Belt (Forward Motion)
32
151223
Transmission, Sheave, Flat
15
2614J
V-Beit (Reverse)
33
73510400
Nut, Keps Hex 1/4-20
16
12000028
Ring, Retainer
34
19091416
Washer 9/32 x 7/8 x 16 Ga.
17
2649M
Key, Square
18
151236
Sheave, T ransmtssion
NOTE; A!! component dimensions given in U.S. inches.
19
110550X
Bolt, Belt Guard
1 inch = 25.4 mm
