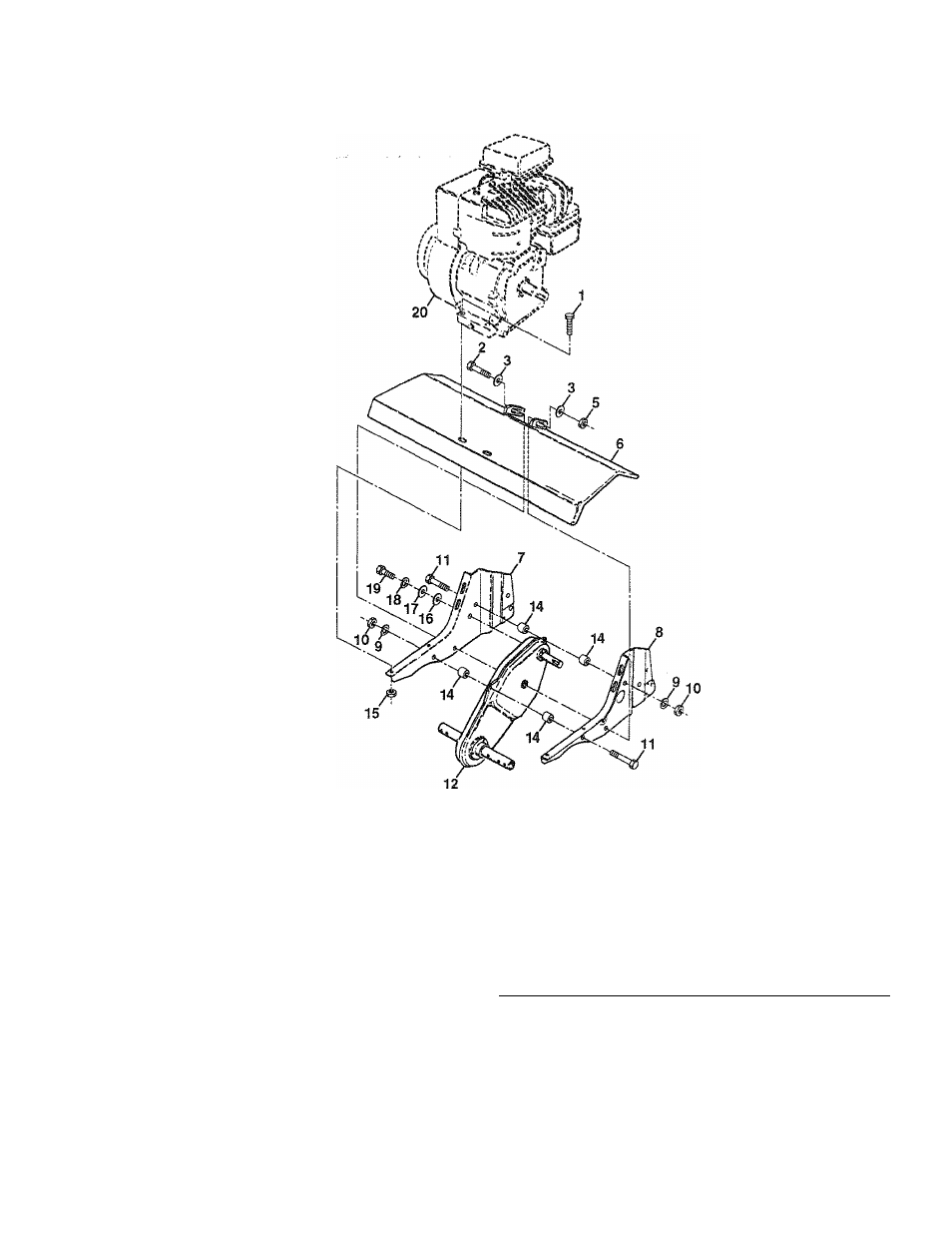

REPAIR PARTS
TILLER - - MODEL NUMBER CHDF550E
TRANSMISSION
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
74760524
Bolt, Hex 5/16-18
X
1-1/2 Gr. 2
14
9173R
Spacer, Split
2
74780652
Bolt, Hex, Fin 3/8-16x3-1/4
15
73510500
Nut, Keps 5/16
3
19131311
Washer 13/32x13/16x11
16
19091412
Washer 9/32 x 7/8 x 12 Ga.
5
73800600
Locknut, Hex, w/washer 3/8-16
17
19092016
Washer 9/32 x 1-1/4 x 16 Ga.
6
9057R428
Shield, Tine
18
10040400
Washer, Lock 1/4
7
165835
Bracket, Engine, R.H.
19
74610412
Bolt, Hex 1/4-28 x 3/4 Gr. 5
8
1948J
Bracket, Engine, L.H.
20
Engine, Briggs Mode! 137202
9
10
11
12
10040500
73220500
74760544
151222
Washer, Lock 5/16
Nut, Hex 5/16-18
Bolt, Hex 5/16-18x2-3/4
Transmission
(Order parts from engine
manufacturer)
NOTE: Ail component dimensions given in U.S. inc
1 Inch = 25.4 mm
