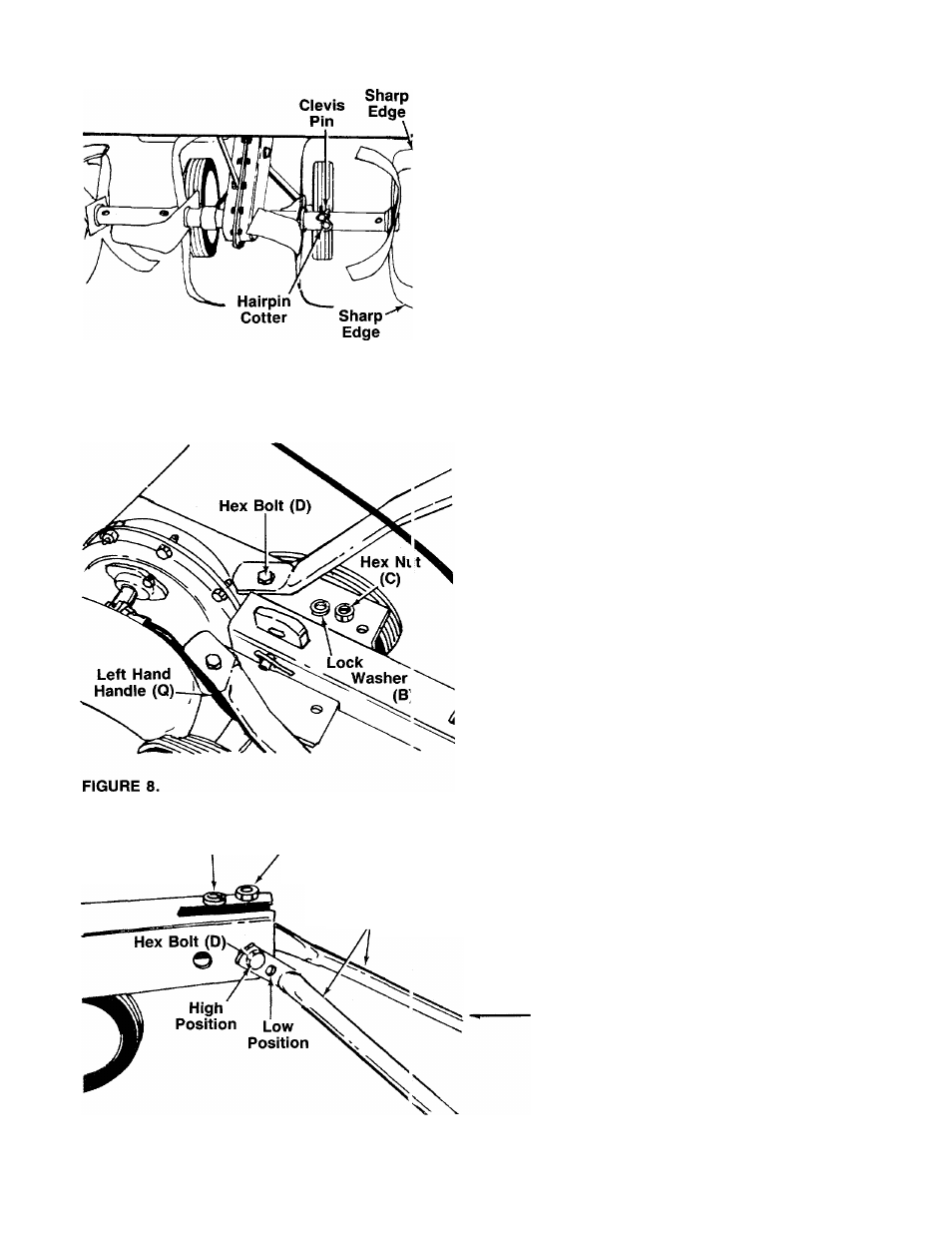

7. Remove the clevis pin and hairpin cotter from the

— inner tine assemblies as shown in figure 7. Place

the right and left hand tine assemblies in position
on tine shaft. Secure with clevis pins and hairpin
cotters.

H^NOTE

Be certain the tine assemblies are
assembled on the tine shaft so that

the sharp edge of the tines enter the
soil first. See figure 7.

FIGURE 7.

The left handle has a clutch grip already assembl
ed to it. Assemble the left and right hand handles

■ (Q and R) to the rear tiller frame as shown in figure

8. Secure with hex bolts (D), lock washers (B) and

hex nuts (C), finger tight only (do not tighten).

Lock Washer (B) Hex Nut (C)

Handle

Braces (U)

9. Attach the right and left hand braces (U) to the

tailpiece. The braces have two holes to provide

handle height adjustment Select hole for either
high or low position. Secure to tailpiece with hex
bolts (D), lock washers (B) and hex nuts (C), finger

tight only (do not tighten). See figure 9.

FIGURE 9.
