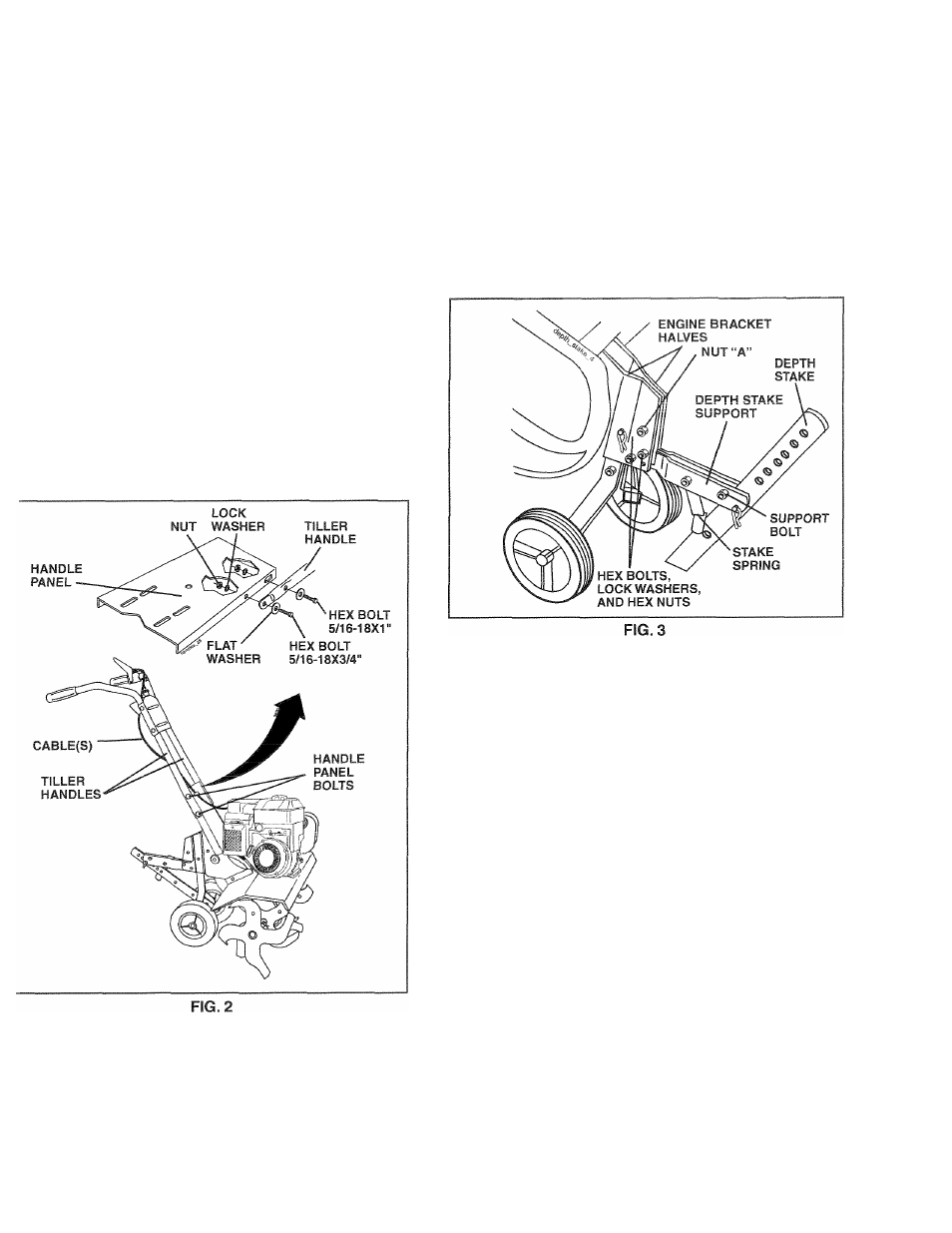

ASSEMBLY
JNPACK CARTON & INSTALL HANDLE
'See Fig. 2)
A
CAUTION;
Be
careful
of
exposed
staples when handling or disposing
of cartoning material.
IMPORTANT; WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
:ABLE(S).
•
Cut cable ties securing handles.
> Slowly lift handle assembly up,
route
cable(s) as shown
and align handle holes with handle panel hole and
slot.
>
Loosely assemble hardware as shown. Be sure the
shorter (3/4" long) hex
bolt
is
assembled
in
lower
hole of handle. Repeat for opposite side. Tighten all
hardware securely.
>
Cut cable ties securing tiller to skid and remove tiller
from skid.
•
Remove screws securing depth stake to skid and dis
card the screws.
INSTALL DEPTH STAKE ASSEMBLY
(See Fig. 3)
•
Loosen nut “A”.
•
Insert stake support between engine bracket halves
with stake spring down.
•
Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Tighten nut “A”.
•
Depth stake must move freely. If it does not, loosen
support bolt.
HANDLE HEIGHT
•
Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Adjust
ments section of this manual).
TILLING WIDTH
•
Tilling width may be adjusted to better handle your
tilling conditions (See “TINE ARRANGEMENT”
in
the
Service and Adjustments section of this manual).
TINE OPERATION
•
Check tine operation before first use. (See “TINE OP
ERATION CHECK” in the Service and Adjustments
section of this manual).
