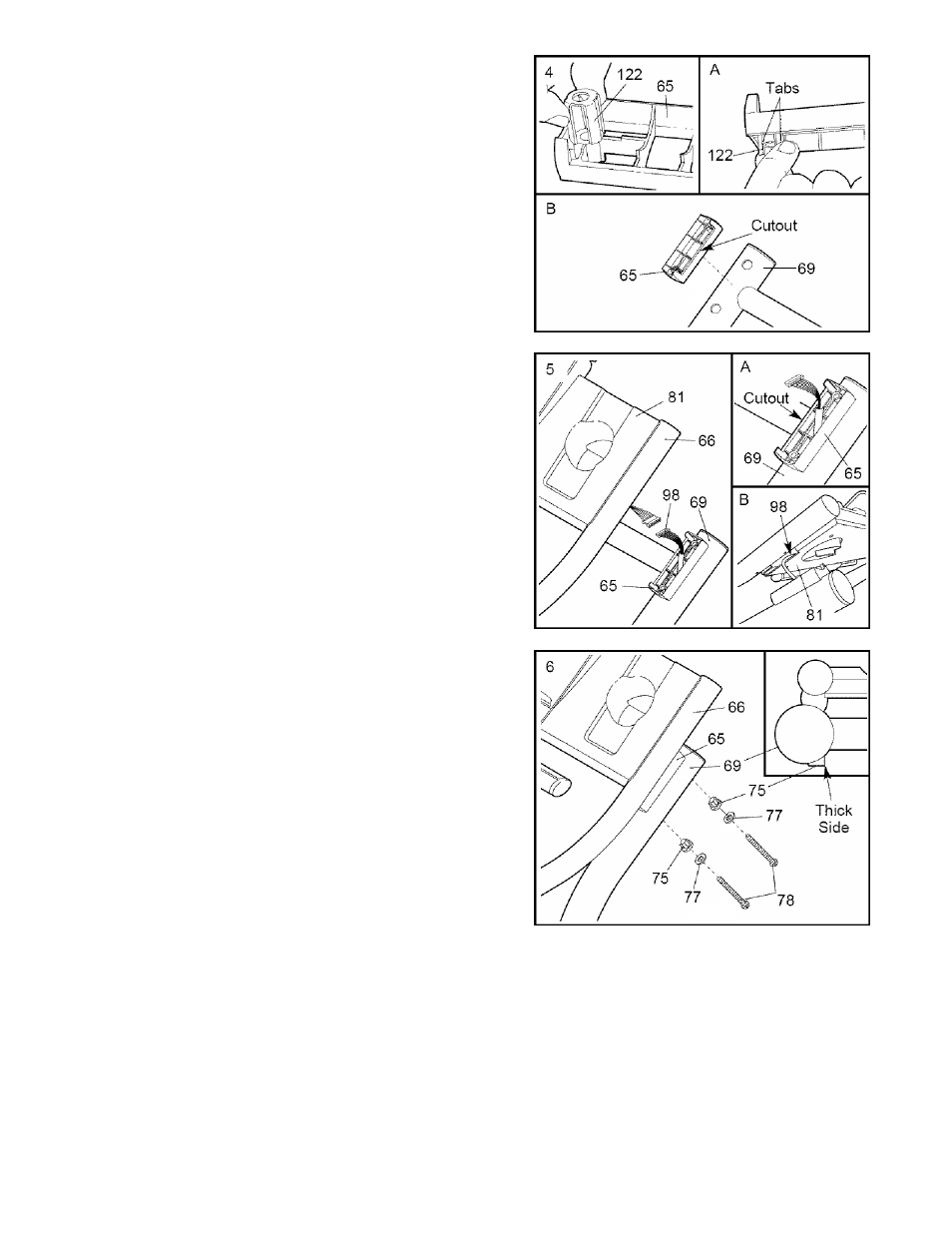

4. Slide the Grounding Bracket (122) onto one of the
Handrail Spacers (65) in the location shown.
See inset drawing A. Pinch each of the tabs on the
Grounding Bracket (122) to allow the tabs to fit inside the
hole in the Upright (69) (See inset drawing B),
See inset drawing B. Place the Handrail Spacer (65) on
the left Upright (69) as shown, with the cutout on the indi­
cated side. Note: Make sure that the tabs on the Bracket
are inserted into the hole in the Upright
5. Pull the Upright Wire Harness (98) up through the other
Handrail Spacer (65). Place the Handrail Spacer (65) on
the right Upright (69) as shown, with the cutout on the in­
dicated side (see inset drawing A).
Have a second person hold the Handrails (66) near the
Uprights (69) as shown. Connect the Upright Wire
Harness (98) to the wires extending from the Console
Base (81). Insert the connectors and the Upright Wire
Harness into the hole in the Console Base (see inset
drawing B),
Being careful not to pinch the Upright Wire Harness (98),
set the Handrails (66) on the Spacers (65).
6. Insert two Handrail Bolts (78) with Handrail Washers (77)
and Handrail Bushings (75) into the right Upright (69) and
the right Handrail Spacer (65). Turn the Handrail
Bushings so they fit against the Upright with the thick
sides of the Bushings toward the center of the treadmill
as shown in the inset drawing. Lift the right Handrail (66)
to align the Bolts with the holes in the Handrail. Next,
thread the Bolts into the Handrail (66). Do not tighten
the Bolts yet.
Attach the left Handrail (not shown) in the same way.
Tighten all four Handrail Bolts (78).
7. Make sure that ail parts are tightened before you use the treadmill. Note: If there is a thin sheet of clear
plastic on the face of the hood decal and the “ComforTrack” decal, remove it. Keep the included alien wrench in
a secure place. The alien wrench is used to adjust the walking belt (see page 27). To protect the floor or car­
pet from damage, place a mat under the treadmill.
