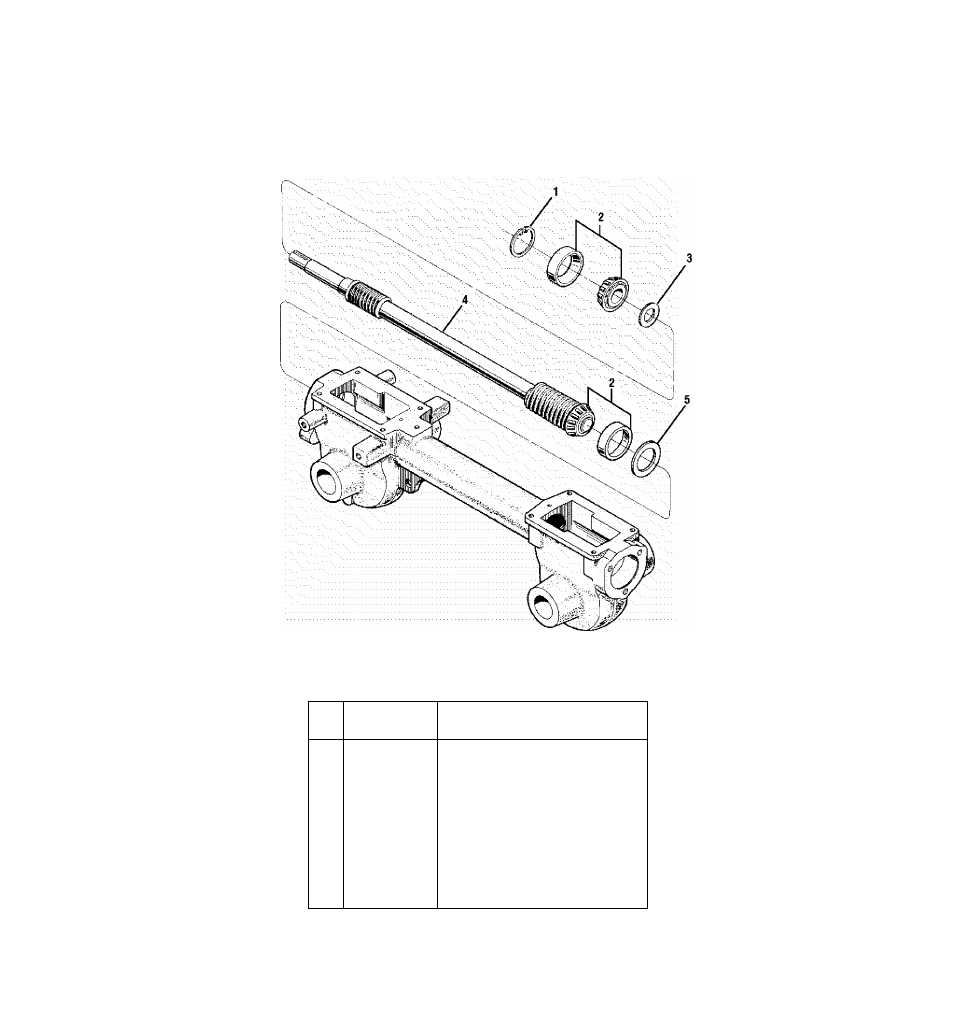

MODELS 644H & 645A
REF
N0.
PART NO.
DESCRIPTION
1
6W-9517
Snap Ring
2
6W-1714
Bearing, Tapered Roller (with race)
3
6W-50043
Support Washer, Rear
4
711-04110
Drive Shaft (CRT)
5
6W-1224-1*
Shim, Rear Bearing Cap, .010“ thick
6W-1224-2*
Shim, same as above, except .030" thick
6W-1224-3*
Shim, same as above, except .005“ thick
6W-1224-4*
Shim, same as above, except .062" thick
—
6W-1325G
Shim Set (Incl. the following shims;
two #1224-1, two 1224-2 & one #1224-4)
Use as required to obtain between .005”' and .015” altowable end-p!ay.
