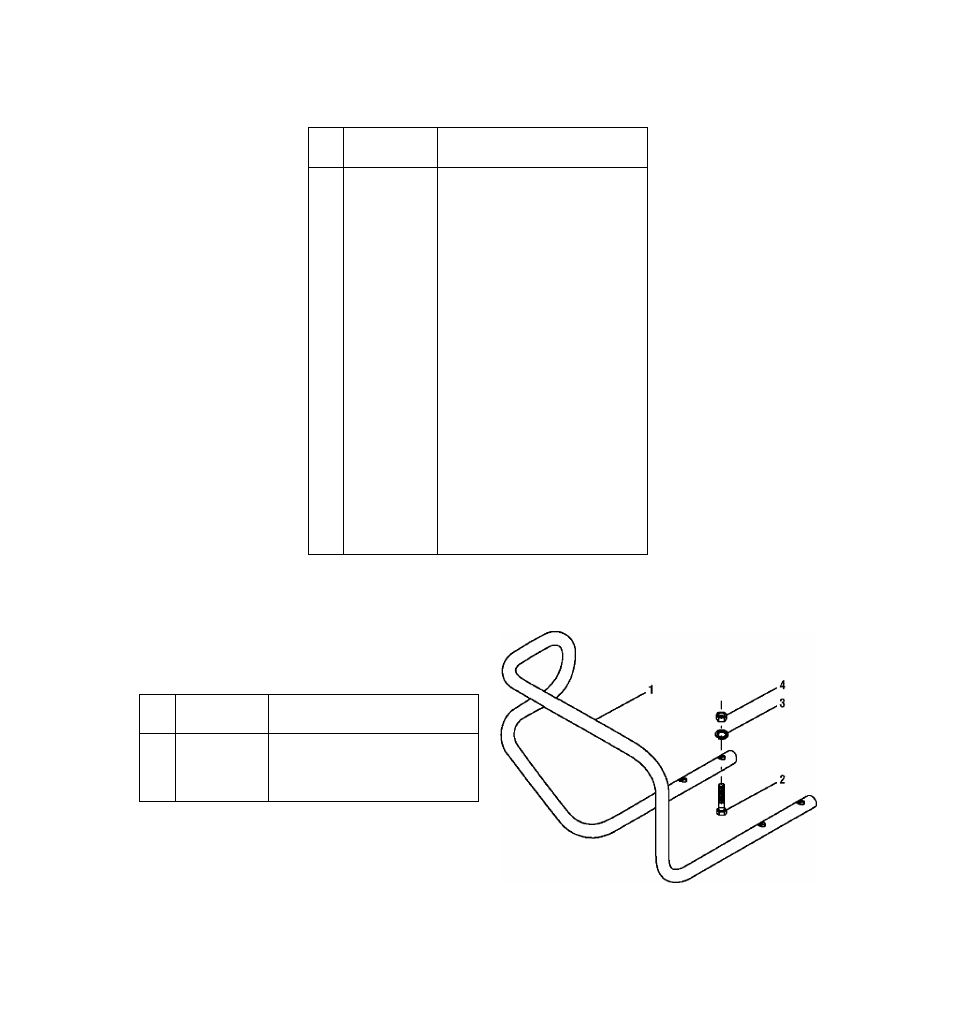

MODELS 644H
&
645A
REF
NO.
PART NO.
DESCRIPTION
1
1916719
Gable Assembly, Reverse Clutch
2
1916755
Upper Handlebar
3
1917479
Bail, Forward Clutch
4
1918745
Gable Assembly, Forward Clutch
5
710-0599
Screw, Self-Tapping,1/4-20 x 1/2
6
710-3008
Screw, Hex, 5/16-18 x 3/4
7
712-3009
Hex Lock Nut, 5/16-18
8
6W-55042
Handlebar Support
9
6W-55043
Lower Handlebar
10
6W-55102
Panel
11
6W-55044
Tab, Conduit Mount
12
6W-9855
Screw, #10-24x2
13
725-0157
Cable Tie
14
736-3050
Flat Washer, 3/8
15
1916674
Bracket, Reverse Clutch Gable
16
1916712
Spring, Forward Clutch
17
710-0106
Hex Hd. Screw, 1/4-20x1-1/4
18
710-0216
Screw, Hex, 3/8-16x3/4
20
710-0805
Screw, Hex, 5/16-18x1-1/2
21
712-0121
Hex Nut, #10-24
22
712-0291
Hex Lock Nut, 1/4-20
23
712-3000
Hex Nut, 3/8-16
25
736-0119
Lock Washer, 5/16
REF
NO.
PART NO.
DESCRIPTION
1
1918749
Bumper
2
710-0395
Hex Screw, 5/16-18 x 2-1/4, Gr5
3
712-0267
Nut, Hex, 5/16-18
4
736-0119
Lock Washer, 5/16
