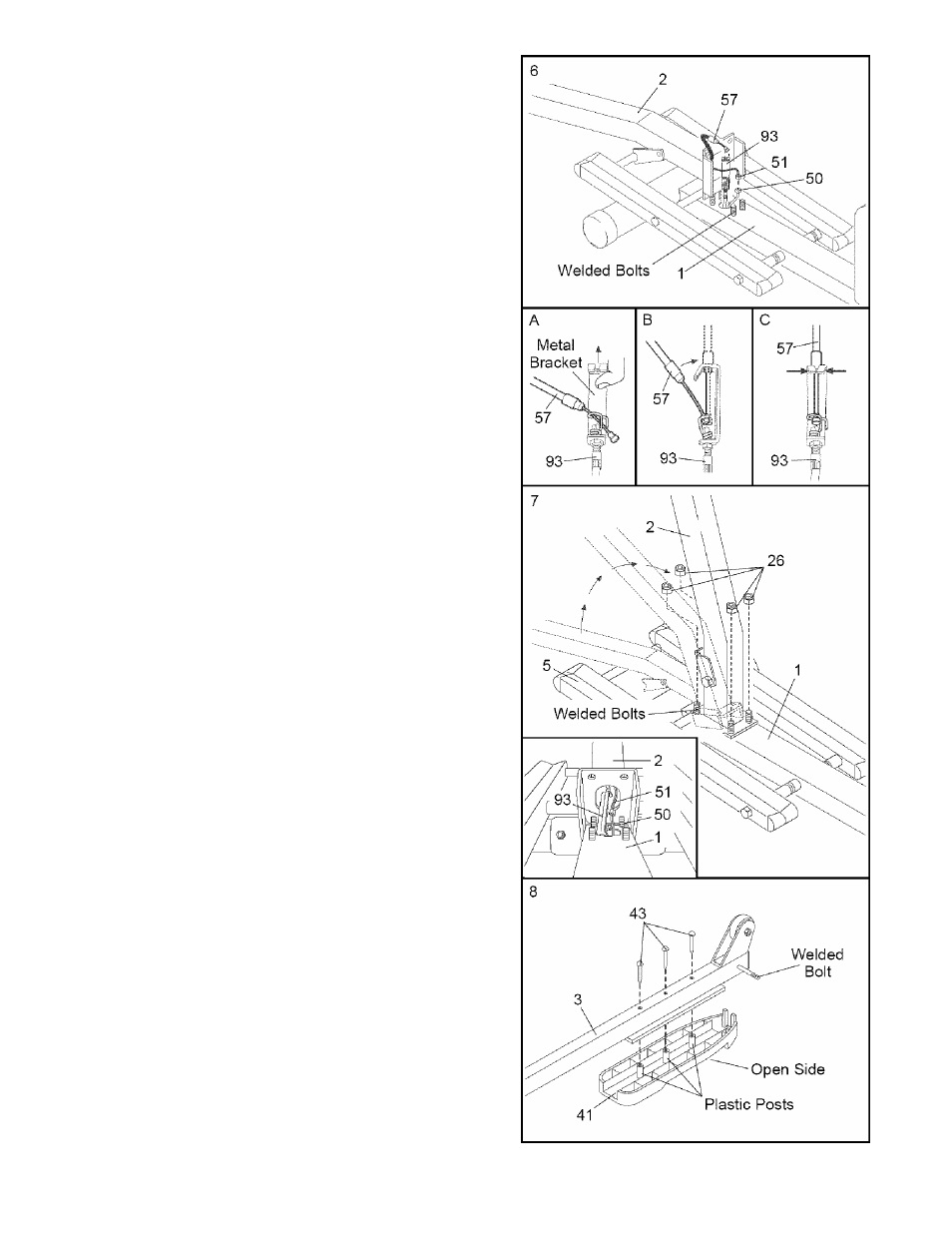

6. Remove the four M10 Nylon Locknuts (not shown)
from the welded bolts on the front of the Frame {1).
Lay a cloth over the front of the Frame (1) to protect it
from scratches. Lay the Upright (2) in the position
shown. Connect the Extension Wire (51) to the Reed
Switch Wire (50).
Next, connect the Resistance Cable (57) to the
Extension Cable (93) in the following way:
• Refer to drawing A. Pull up on the metal bracket on
the Extension Cable (93), and insert the tip of the
Resistance Cable (57) into the wire clip on the
Extension Cable as shown.
• Refer to drawing B. Firmly pull the Resistance Cable
(57) and slide it into the metal bracket on the
Extension Cable (93) as shown.
• Refer to drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
7. Align the two holes in the front of the Upright (2) with
the two welded bolts on the front of the Frame (1).
Next, pivot the Upright (2) about halfway to a vertical
position. Refer to the inset drawing. As you raise
the Upright, look into the lower end and make sure
that the metal bracket on the Extension Cable (93)
does not get caught on the Upright or the Frame
(1). In addition, feed all slack Extension Wire (51)
and Reed Switch Wire (50) into the Upright.
Continue to raise the Upright until the four welded
bolts are inserted through the bracket at the bottom of
the Upright.
Lift the front of the Incline Frame (5). Tighten an M10
Nylon Locknut (26) onto each welded bolt.
Identify the Left Pedal Arm (3), which has an “L” sticker
on it. Next, identify the Left Pedal (41), which has the
letter “L” molded onto the bottom.
Turn over the Left Pedal Arm (3) as shown. Insert the
three plastic posts on the Left Pedal (41) into the three
indicated holes in the Left Pedal Arm. Make sure that
the Left Pedal is turned as shown. Attach the Left
Pedal with three Pedal Screws (43).
Attach the Right Pedal (not shown) to the Right Pedal
Arm (not shown) in the same way.
