DECALS

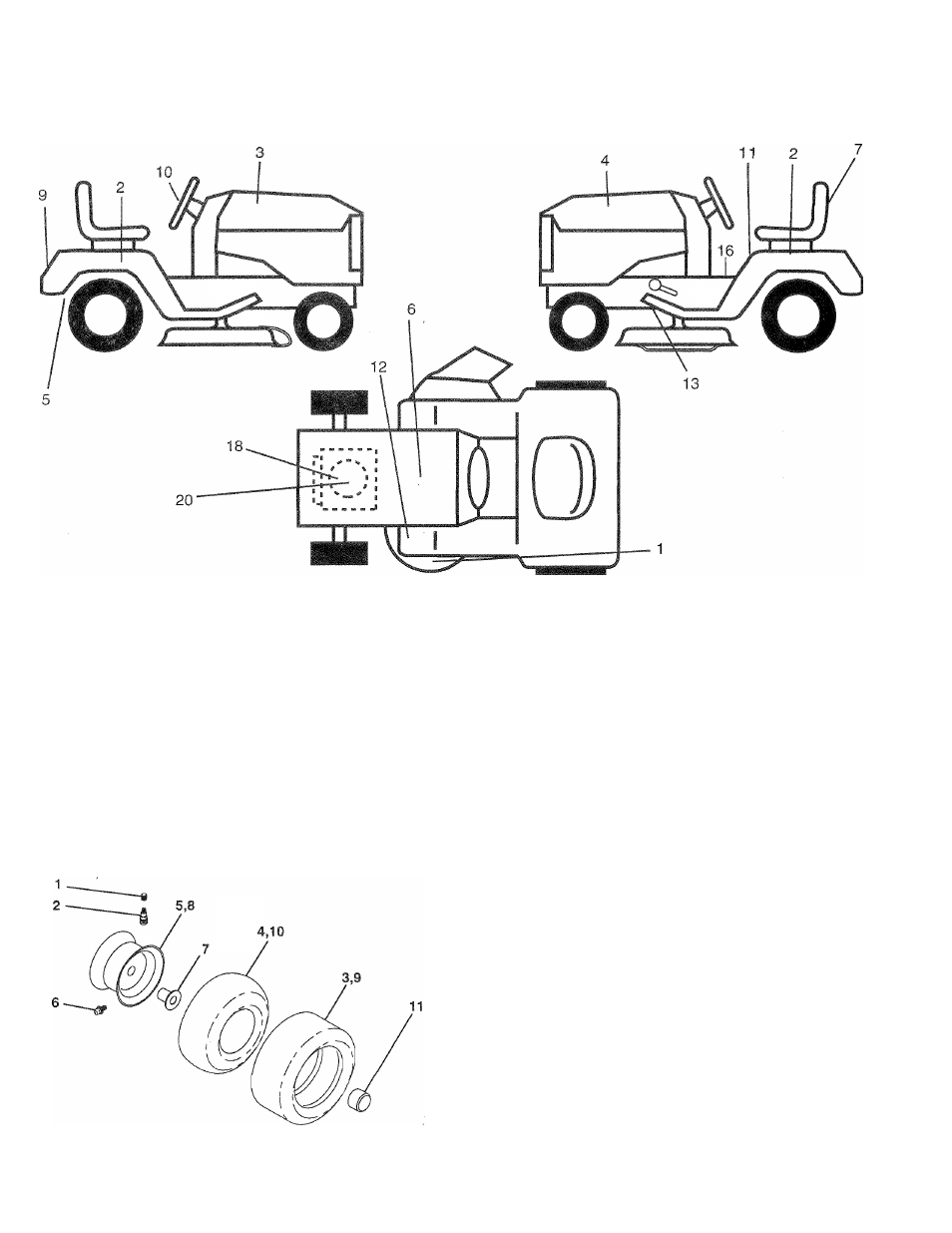

REPAIR PARTS
TRACTOR - - MODEL NUMBER HD185H46B
KEY
NO.
PART
NO.
1 158169
2
3
4
5
158434
158432
158433
142341
6 145005
7 158317
9 158166
10 158168
DESCRIPTION
Decal Deck Mul/Bag
Decal Fend Side Auto
Decal Hood RH
Decal Hood LH
Decal Drawbar Cntrl Mvt Hyd Lt
Decal Bat Dan/Poi P/L Sym
Decal Seat Repicment
Decal Fender Logo
Decal Cap Strg
KEY
PART
NO. NO.
11 157141
12 141897
13
16
18
20
139346
158181
273284
158318
133671
138311
159759
159760
DESCRIPTION
Decal Danger English/Spanish
Decal Clutch/Brake English/
Spanish
Decal V-Belt Dr Sch Tractor E
Decal Sdl Oper Inst.
Decal HP Engine
Decal Repicment Engine
Pad Footrest
Decal Handle Lft Height Adjust
Manual Owner's English
Manual Owner's Spanish
WHEELS AND TIRES
KEY
NO.
PART
NO.
1 59192
2 65139
3 106230X
4 59904
5 106228X427
6 278H
7 9040H
8 124074X427
9 124106X
10 7154J
11 104757X
..
144334
DESCRIPTION
Cap Valve Tire
Stem Valve
Tire F Ts 16 X 6 5 - 8 Service
Tube Front (Service Item Only)
Rim Asm 8" front White Service
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel Only)
Rim Asm 12" rear White Service
Tire R Ts 23
X
8.5
X
12 C Service
Tube Rear (Service Item Only)
Cap Axle BIk 1 50 X 1 00
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
