ASSEMBLY

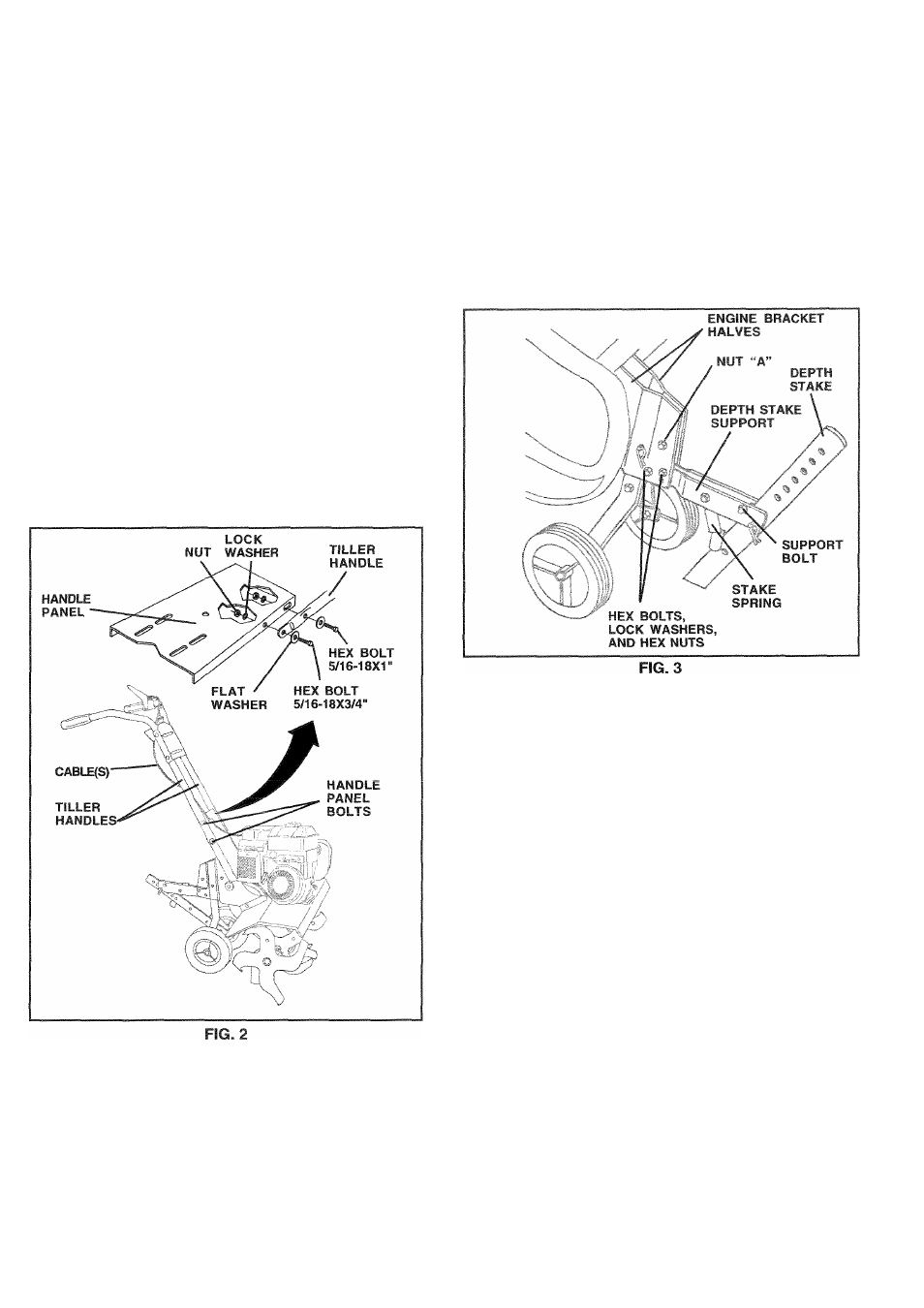

UNPACK CARTON & INSTALL HANDLE
(See Fig. 2)
A
CAUTION: Be careful of exposed staples
when handling or disposing of cartoning
material.
IMPORTANT; WHEN UNPACKING AND ASSEMBLING
TILLER, BE CAREFUL NOT TO STRETCH OR KINK
CABLE(S).
•
Cut cable ties securing handles.
• Slowlylift handle assembly up, route cable(s) as shown
and align handle holes with handle panel hole and slot.
• Loosely assemble hardware as shown. Be sure the
shorter (3/4“ long) hex bolt is assembled in lower hole of
handle. Repeatforoppositeside. Tighten all hardware
securely.
• Cut cable ties securing tiller to skid and remove tiller
from skid.
• Remove screws securing depth stake to skid and
discard the screws.
INSTALL DEPTH STAKE ASSEMBLY
• Loosen nut “A”.
• Insert stake support between engine bracket halves with
stake spring down.
• Bolt stake support to engine brackets with bolts, lock
washers and nuts. Tighten securely. Tighten nut “A”.
• Depth stake must move freely. If it does not, loosen
support bolt.
HANDLE HEIGHT
• Handle height may be adjusted to better suit operator.
(See “HANDLE HEIGHT” in the Service and Adjust­
ments section of this manual).
TILLING WIDTH
• Tilling width may be adjusted to better handle yourtiliing
conditions (See ‘TINE ARRANGEMENT” in the service
and Adjustments section of this manual).
TINE OPERATION
• Check tine operation before first use. (See TINE
OPERATION CHECK” in the Service and Adjustments
section of this manual).
