Poulan HDF550L - Manual (Page 19)

TILLER - - MODEL NUMBER HDF550L

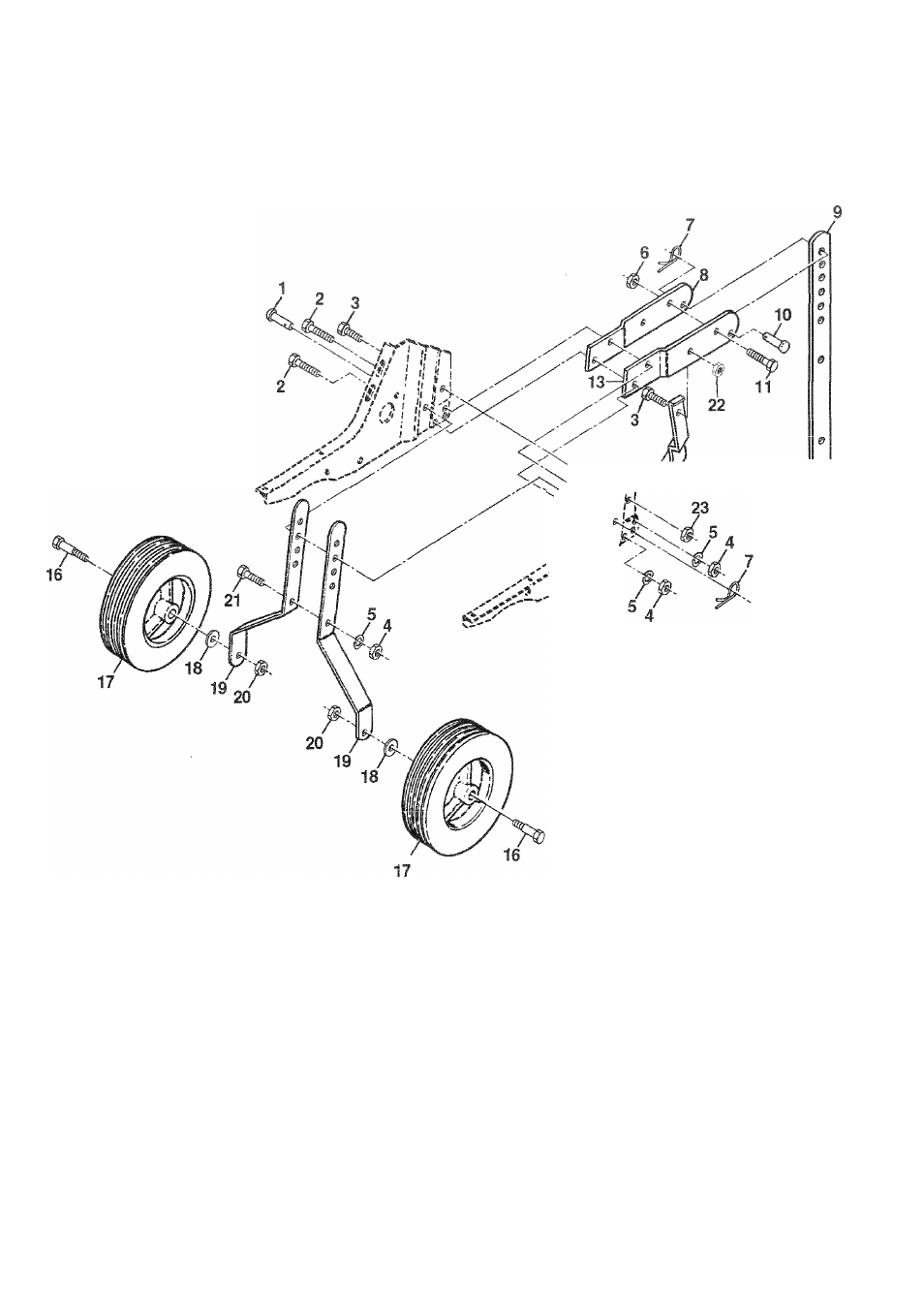

WHEEL AND DEPTH STAKE ASSEMBLY
REPAIR PARTS
01
0
1/
KEY
NO.
PABT
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 9194R Pin, Clevis 15 5388J Spring, Stake
2 74760520 Bolt, Hex 5/16-18x1-1/4 16 121117X Bolt, Shoulder
3 74760512 Bolt, Hex 5/16-18x3/4 17 9188R Wheel
4 73220500 Nut, Hex 5/16-18 18 19131311 Washer 13/32 x 13/16x11 Ga.
5 10040500 Washer, Lock 5/16 19 9190R Bracket, Wheel
6 73800600 Locknut, w/washer 3/8-16 20 73680600 Locknut, Crown 3/8-16
7 4921H Clip, Hairpin 21 74760516 Bolt, Hex 5/16-18x1
8 1952J Support, Depth Stake, R.H. 22 73800500 Locknut, w/insert 5/16-18
9
10
122233X
326J
Stake, Depth
Pin, Clevis
NOTE: All component dimensions given in U.S. inch
11
13 74780628
1951J
Bolt, Hex, Fin 3/8-16x1 -3/4
Support, Depth Stake, L.H.
1 inch = 25.4 mm
19
