Char-Broil 11301672 - Manual (Page 7)

Key Qty Description
1 1 Lid Assembly
2 1 Swing-Away Grate
3 3 Cooking Grate
4 1 Handle, F/Clean Out Door w/Latch
5 2 Air Damper
6 1 Charcoal Pan w/Adjust Assembly
7 2 Hinge Assembly
8 1 Left Front Leg, W/Caster Socket
9 1 Tool Hook
10 1 Left Rear Leg, W/Caster Socket
11 1 Firebox Front Panel
12 1 Firebox Rear Panel
13 1 Axle
14 1 Handle, F/Ash Pan
15 1 Right Front Leg
16
1 Bottom Shelf
17 2 Wheel
18 2 Firebox Side Panel

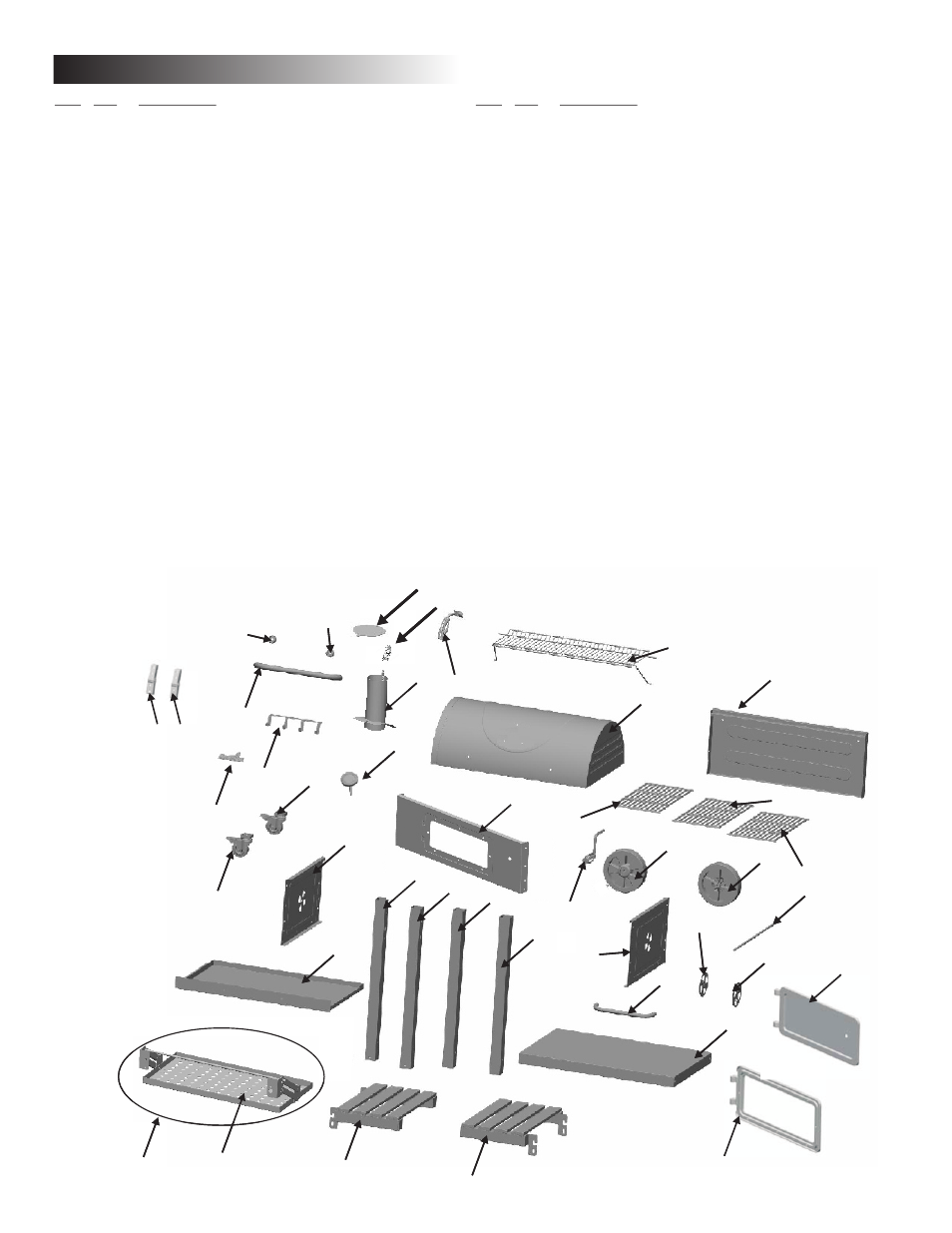

PARTS LIST
Page 7
11
2
12
4
3
3
3
17
17
13
5
5
14
18
8
26
15
16
21
20
9
24
24
18
25
22
23
23
7
28
29
7
19
10
11
8
27
27
30
33
6 32
31
11
2
12
4
3
3
3
17
17
13
5
5
14
18
8
26
15
16
21
20
9
24
24
18
25
22
23
23
7
28
29
7
19
10
11
8
27
27
30
33
6 32
31
Key Qty Description
19 1 Clean Out Door
20 1 Smoke Stack
21 1 Adjustable Crank Handle
22 1 Lid Handle
23 2 Handle Seat
24 2 Caster
25 1 Ash Pan
26 1 Right Rear Leg
28 1 Logo Plate
29 1 Temperature Gauge
30 1 Frame, F/clean out Door
31 1 Damper, F/Smoke Stack
32
1 Charcoal Pan (only)
33 1 Spring F/ Smokestack Damper
Not Pictured
__
1 Assembly Instructions, English
— 1 Assembly Instructions, French
1 Hardware Pack
__ 1 Caster Wrench
27 2 Side Shelf
—
