ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included hex keys and your own phillips screwdriver

mallet ---- ------ --

and rubber

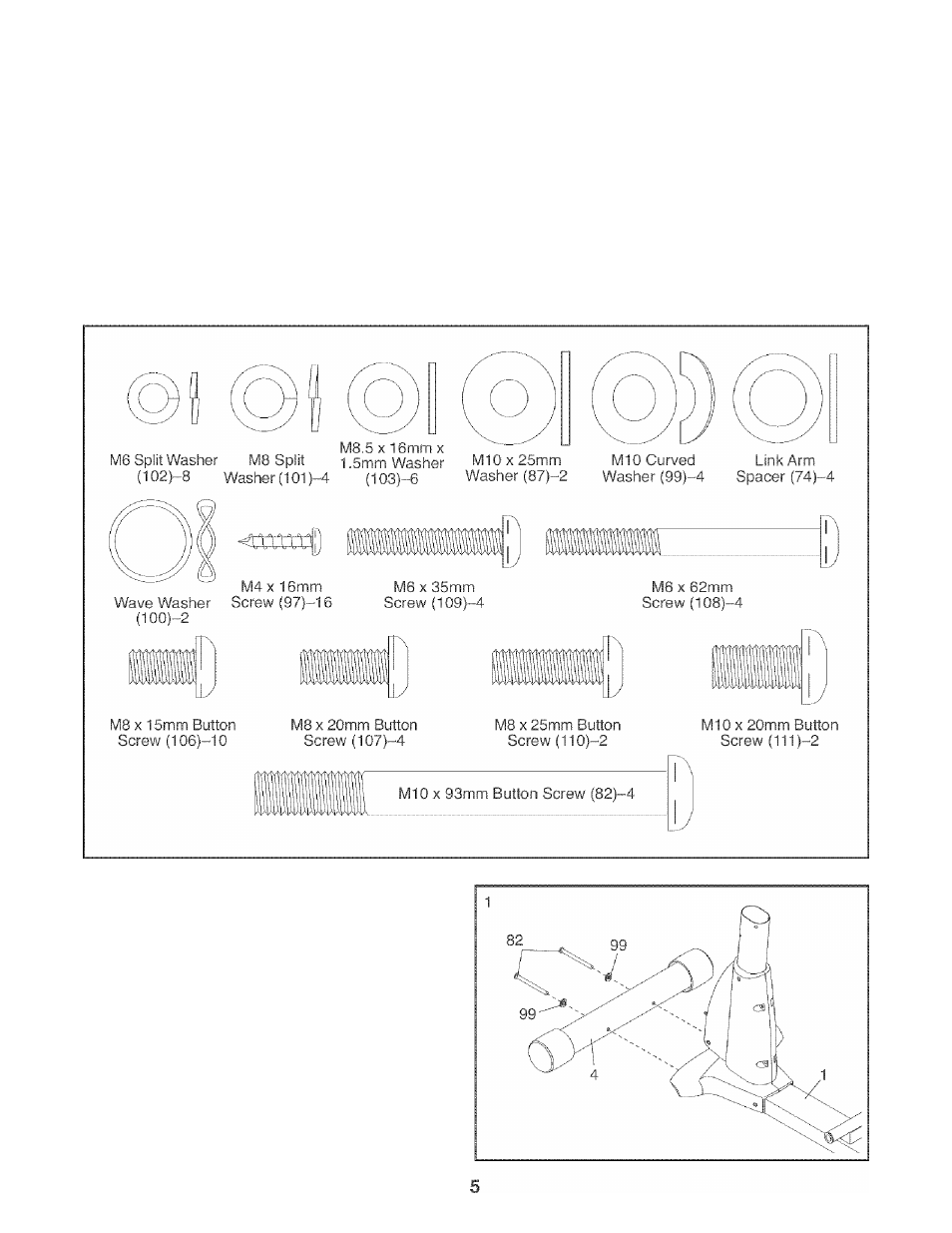

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST on pages 20 and 21. The number follow
ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem
bled. If a part is not in the parts bag, check to see if it has been preassembled.

1. See HOW TO FOLD AND UNFOLD THE

ELLIPTICAL EXERCISER on page 11 and
unfold the elliptical exerciser.

While another person lifts the front of the

Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 93mm Button Screws
(82) and two M10 Curved Washers (99).
