OPERATION
SAFETY GUSSES
FORESIGHT IS BETTER
THAN NO SIGHT
The operation of any iilier can result ¡n foreign objects thi&wn into the eyes, which car» restiil
in severe eye damage. Always wear safety glasses or eye shields before .startirig your tiller
and while tilling We recommend a wide vision safety mask over spectacles or standard
safety glasses.
HOW TO USE YOUR TILLER
Know how to operate all controls before adding fuel and oil
or attempting to start engine.
STOPPING (See Fig. 5)
TINES
•
Release forward tine control to stop forward movement.
•
Release reverse tine control to stop reverse tine move
ment.
ENGINE
•
Move throttle control to “STOP” position.
•
Never use choke to stop engine.
FORWARD TINE CONTROL
CHOKE
CONTRO
THROTTLE
CONTROL
FIG. 5

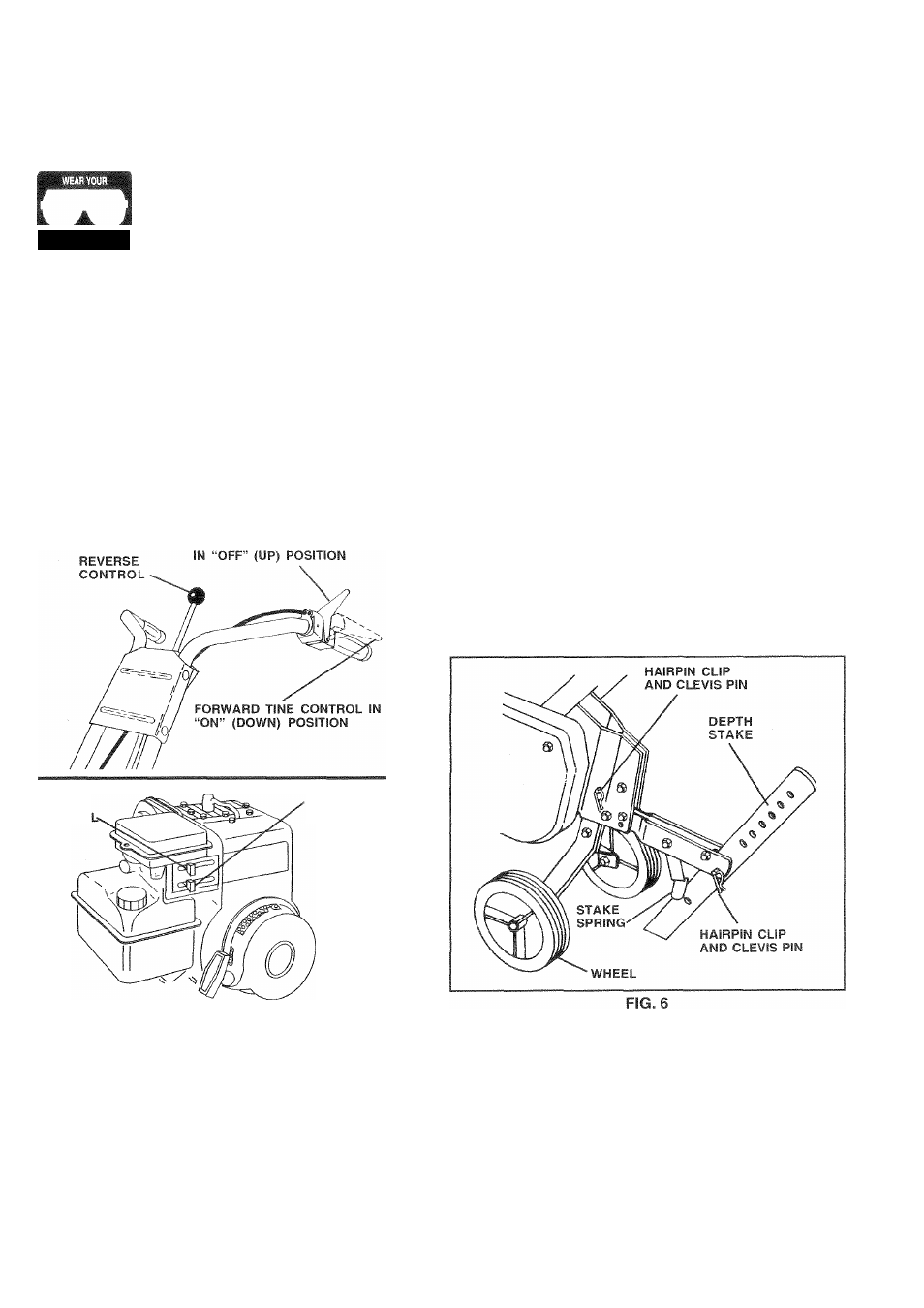

TINE OPERATION (See Fig. 6)
FORWARD
® Squeeze forward tine control to handle.
REVERSE
® With forward tine control “OFF” (up) position, pull back
and hold reverse tine control.
TILLING
The speed and depth of tilling is regulated by the position of
the depth stake and wheel height.
The depth stake should always be below the wheels for
digging. It serves as a brake to slow the tiller’s forward
motion to enable the tines to penetrate the ground. Also, the
more the depth stake is lowered into the ground the deeper
the tines will dig.
DEPTH STAKE (See Fig. 6)
Adjust depth stake by removing the hairpin dip and clevis
pin. Change depth stake to desired position. Replace the
clevis pin and hairpin clip,
® For normal tilling, set depth stake at the second or third
hole from the top.
WHEELS (See Fig. 6)
Adjust wheels by removing the hairpin clip and clevis pin.
Change wheel position. Replace the hairpin clip and clevis
pin.
® For normal tilling, setwheelsatthe second orthird hole
from the top.
