REPAIR PARTS
TILLER - - MODEL NUMBER CHDF550F

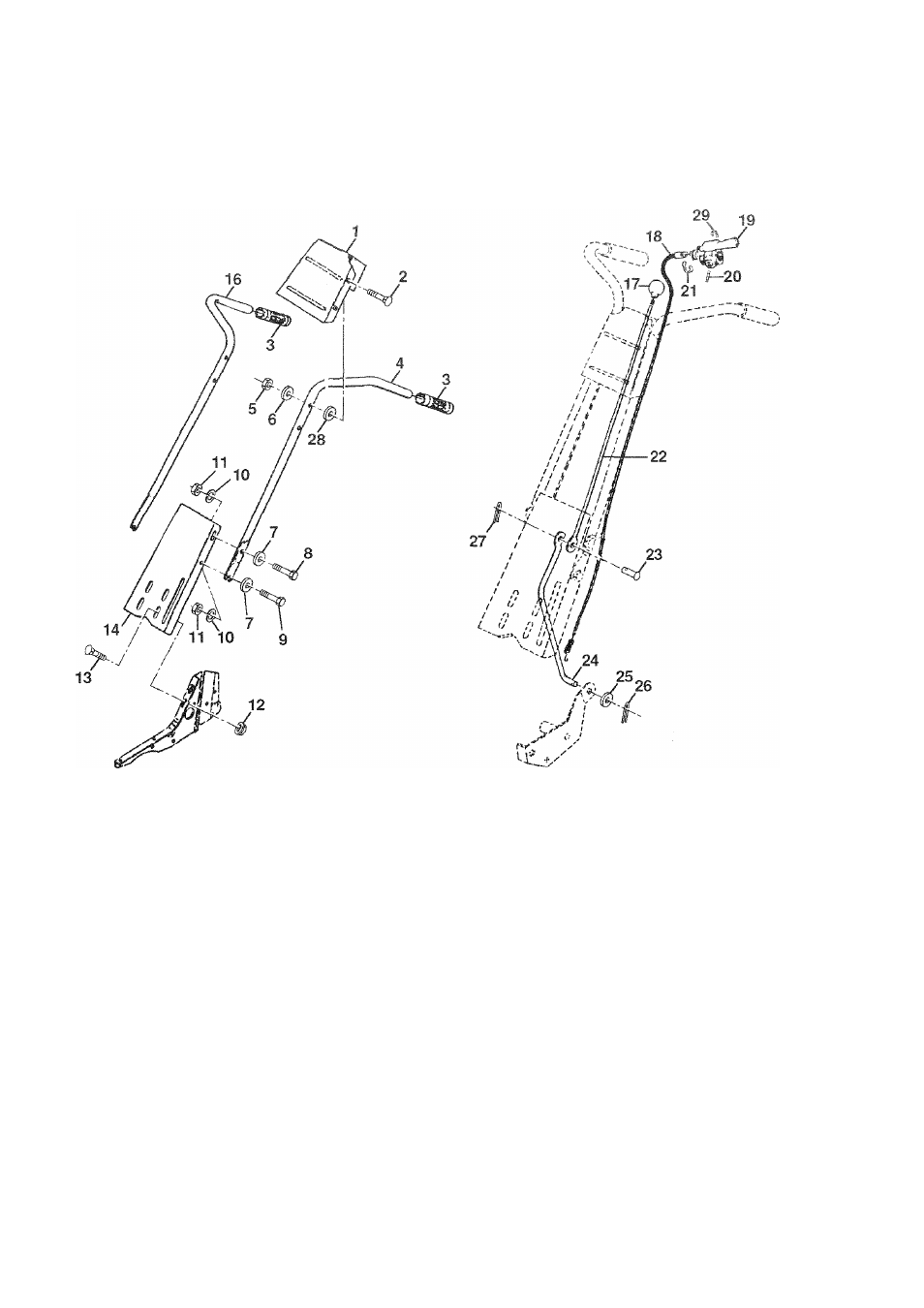

HANDLE ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
131268X428 Bracket, Handle
17
106932X
Knob, Control, Reverse
2
72140512
Bolt, Carriage 5/16-18 UNCx 1-1|2
18
166868
Cable, Control, Tine
3
9266R
Grip, Handle
19
151229
Control, Tine
4
166376
Handle, L.H.
20
154805
Pin, Pivot
5
73680500
Locknut, Crown 5/16-18
21
12000027
Ring, Klip
6
19111116
Washer 11/32 x 11/16 x 16 Ga.
22
167692
Rod, Reverse, Upper
7 ..
19121414
Washer 3/8 x 7/8 x 14 Ga.
23
1778E
Pin, Retaining
8
74760516
Bolt, Hex Hd 5/16-18
X
1
24
2613J
Rod, Reverse, Lower
9
74760512
Bolt, Hex Hd 5/16-18x3/4
25
19131316
Washer 13/32 x 13/16 x 16 Ga.
10
10040500
Washer, Lock 5/16
26
76020412
Pin, Cotter 1/8
X
3/4
11
73220500
Nut, Hex 5/16-18
27
76020308
Pin, Cotter 3/32
X
1/2
12
98000129
Nut, Flanged 5/16-18
28
19131312
Washer 13/32 x 13/16 x 12 Ga.
13
72140506
Bolt, Carriage 5/16-18 x 3/4 Gr. 5
29
12000059
Retaining, Ring
14
674A150428
Panel, Handle
NOTE: All component dimensions are given in U.S.
16
166377
Handle, R.H.
inches.
1 inch = 25.4 mm
