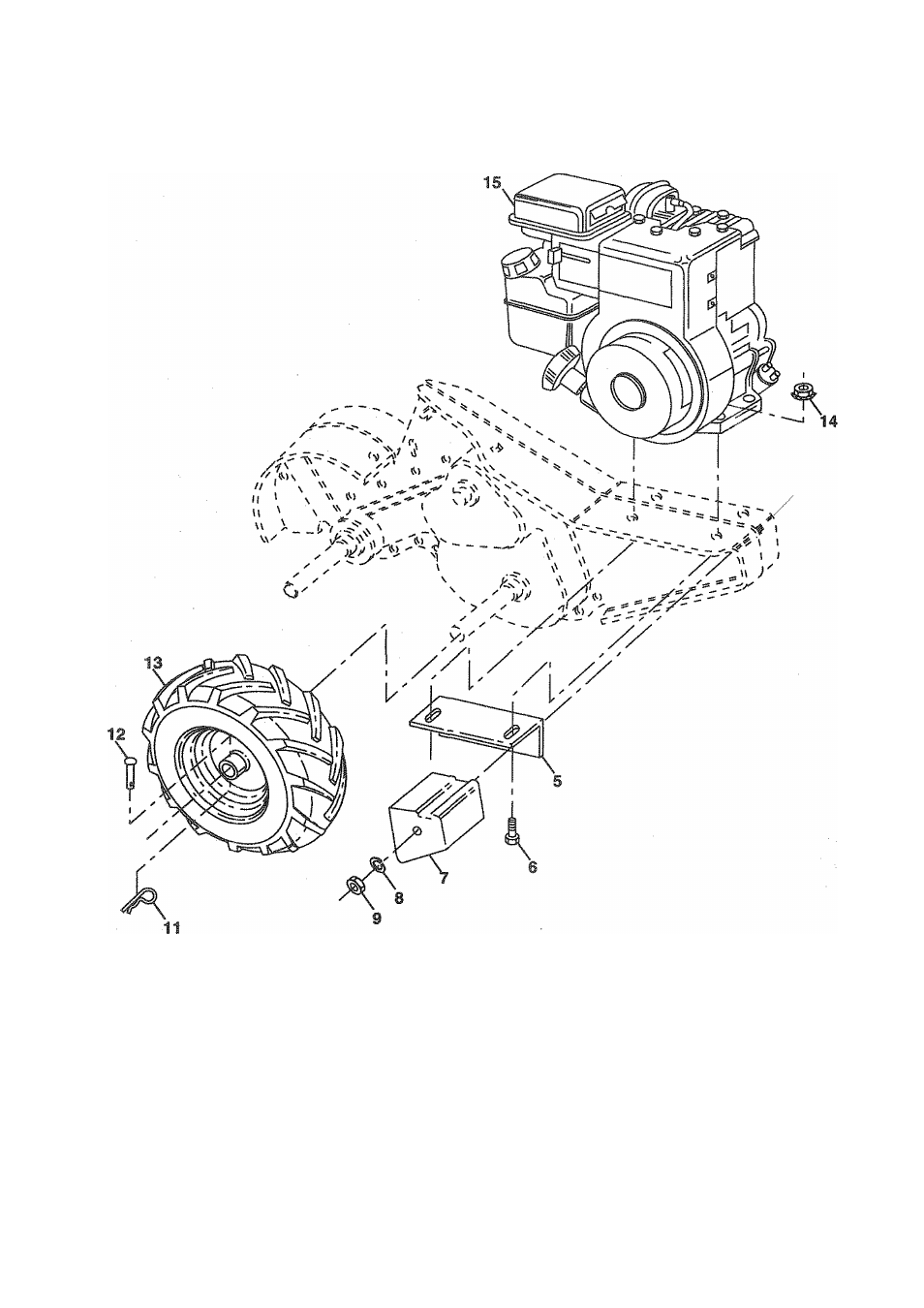

TILLER - « MODEL NUMBER HDR50OJ

MAIMFRAME, RIGHT SIDE

REPAIR PARTS

KEY

NO.

PART

m.

5

102332X

6 74760524
7

102173X

8 10040aXi

9 7322060G

11 4497H
12 126875X

DESCRIPTION
Bracket, Reinforcement
Bolt, Hex 5/16-18x1-1/2
Counterweight, R.H.

Washer, Lock 3/8

Nut, Hex 3/8-16
Clip, Hairpin
Rivet, Drilled

KEY

PART

NO. NO.

13 102190X

150750
795R

14 73510500

15

DESCRIPTION

Tire

Rim

Tire Valve

Nut, Keps 5/16-18
Engine, Briggs Model 137202
Order parts from engine
manufacturer

NOTE: All component dimensions given in U.S.inches.

1 inch = 25.4 mm

22
