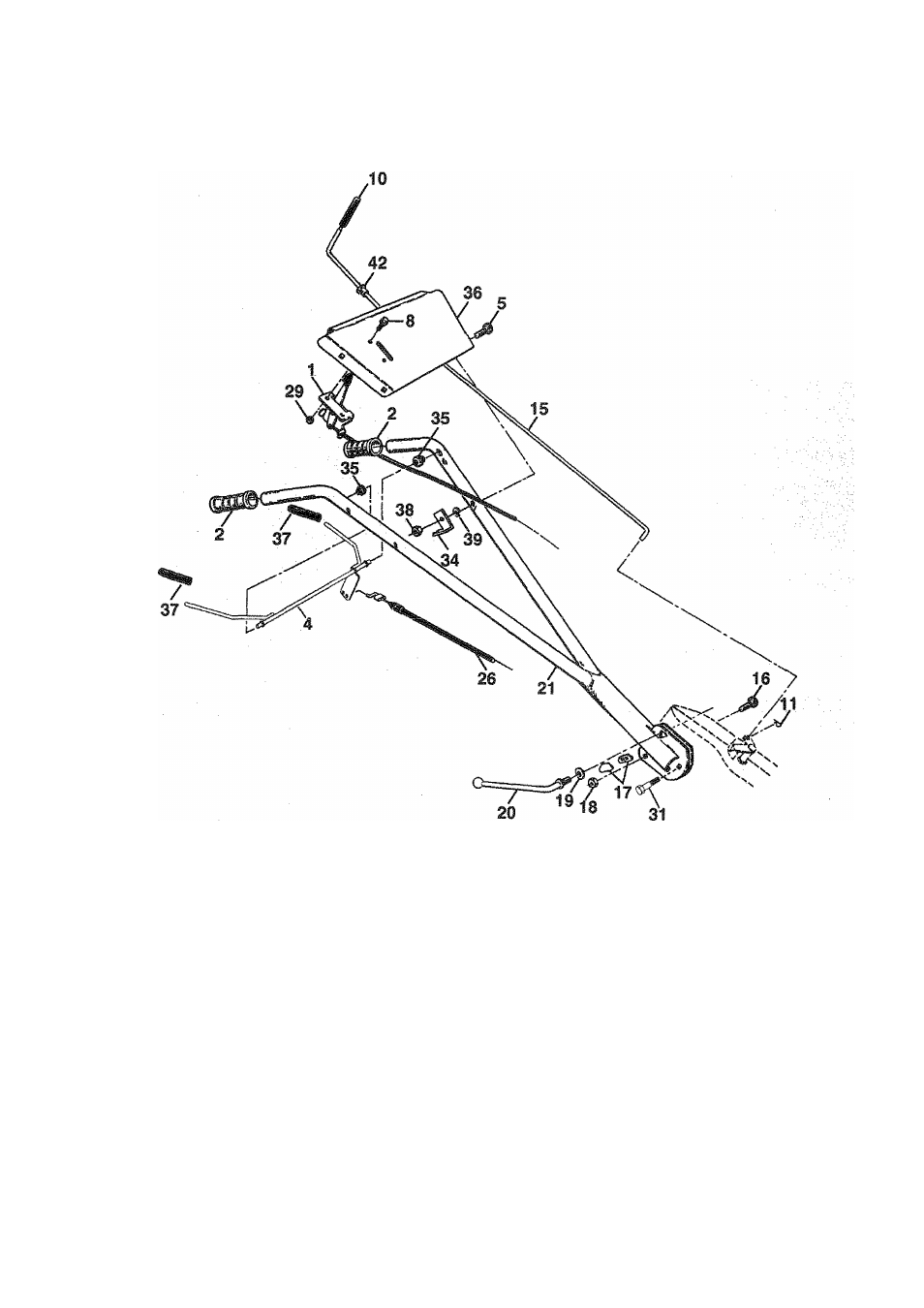

REPAIR PARTS
HANDLE ASSEMBLY
TILLER - - MODEL NUMBER HDR500J
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
127012X
Control, Throttle
21
150217
Handle
2
150744
Grip, Handle
26
169232
Cable, Clutch
4
159227
Bar, Control
29
73731000
Nut, Keps #10-24 UNC
5
72110514
Bolt, Carriage 5/16-18x1 -3/4
31
150696
Bolt, Pivot
8
71191008
Screw, Pan Hd. #10-24
34
145821
Bracket, Clutch Cable
10
8389J
Grip, Handle
35
146480
Grommet, Handle
11
4497H
Clip, Hairpin
36
126949X428
Bracket, Handle
15
108281X
Rod, Shift
37
102604X
Grip, BarControl
16
72110608
Bolt, Carriage 3/8-16 x 1 Gr. 5
38
73800500
Locknut 5/16-18
17
109229X
Lock, Handle
39
10040500
Washer, Lock 5/16
18
736S0600
Nut, Crownlock 3/8-16 UNC
42
121248X
Bushing, Snap
19
20
19131611
109228X
Washer 13/32 x 1 x 11 Ga.
Lever, Lock, Handle
NOTE: Ali component dimensions given in
1 inch = 25.4 mm
