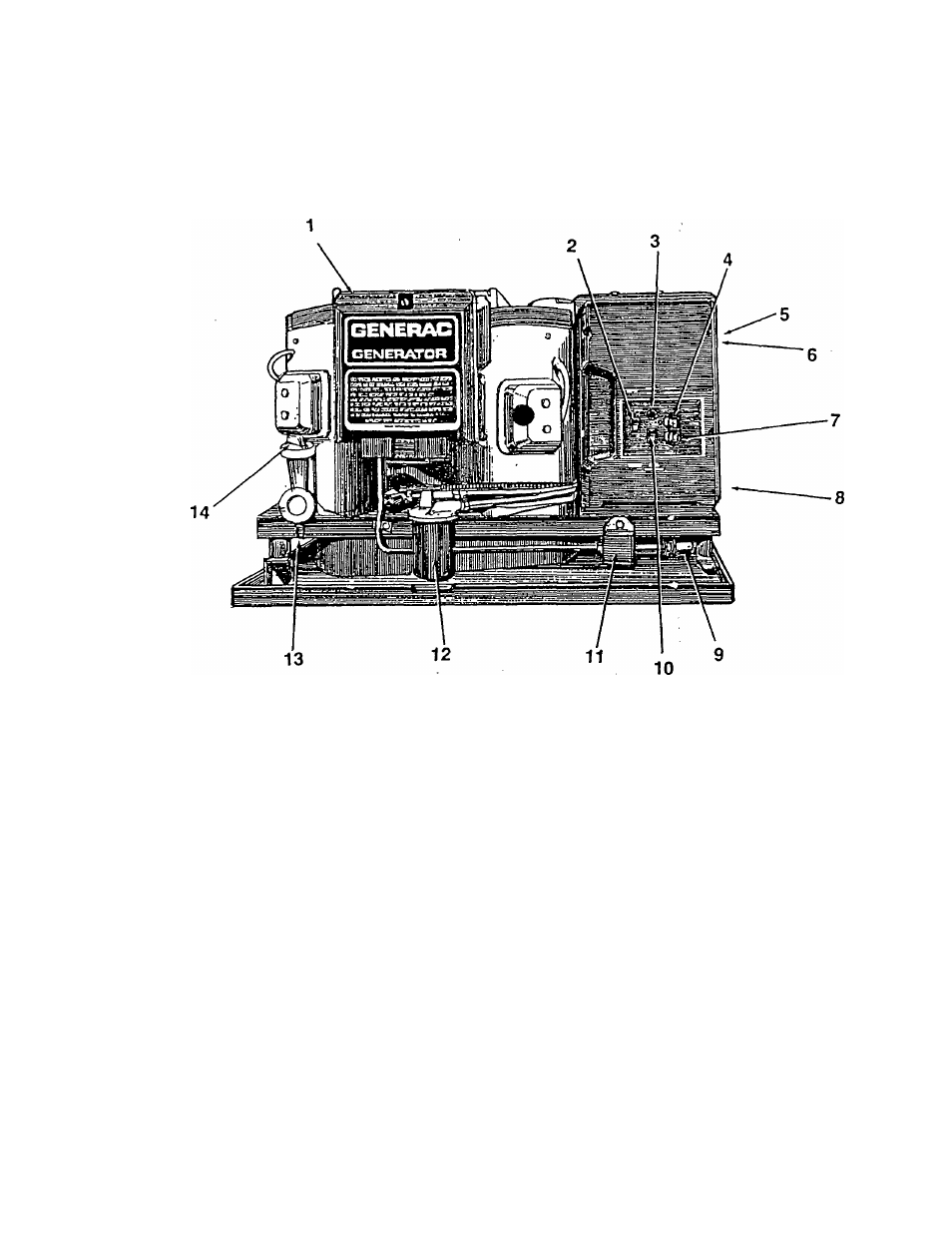

GENERATOR FEATURES
REFERENCE NUMBER IDENTIFICATION
1. Generator Air Intake Screen
8. Starter Contactor
2. Engine Start/Stop Switch
9. Fuel Inlet
3. 15 amp Fuse
10. Fuel Pump Primer Switch
4. 20 or 30 amp Circuit Breaker
11. Fuel Pump
5. Optional Remote Panel Receptacle
12. Oil Filter
6. Generator AC Output Leads
13. Oil Drain Plug
7. 30 amp Circuit Breaker
14. Oil Dipstick and Filler Tube
